Product Details:
|
| Insertion Loss: | ≤0.2db | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Connector Type: | SC | Return Loss: | ≤55db |
| Color: | Green/Blue | Product Name: | SC Fast Connector |
| Fiber Type: | SM | Operating Temperature: | -40 To +85 Degree |
| Durability: | ≤ 0.25db Typical Change | Certification: | ISO9001,RoHS,CE,SGS |
| Name: | Fast Connector | Connector: | Fast Connector SC |
| Fiber Cable Type: | 3x2mm Flat Cable | Length: | 60mm |
| High Light: | Fttx Olt fiber optic cable adapter,0.2db fiber optic cable adapter,0.2db fiber optic sc connector |
||

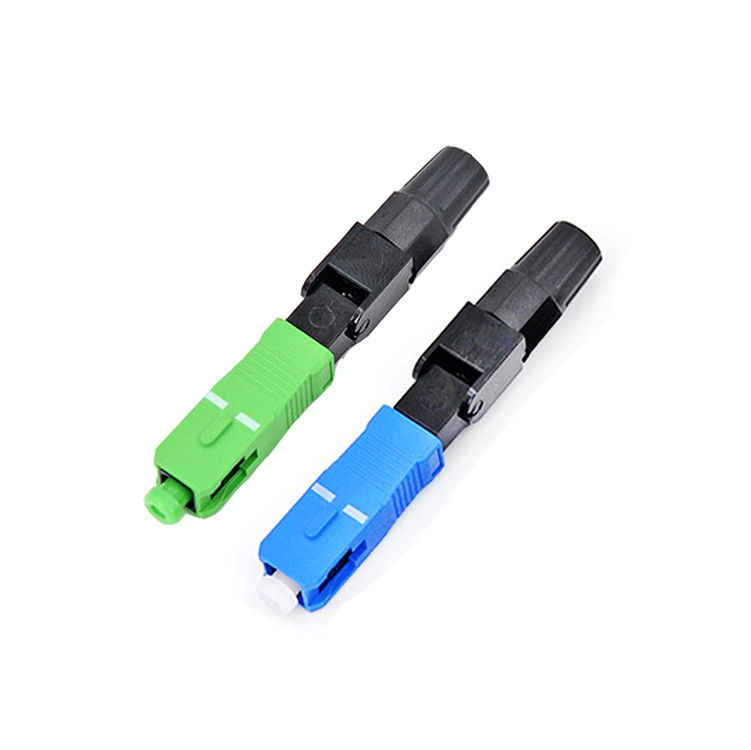

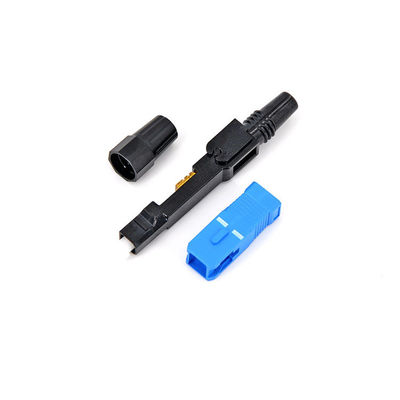

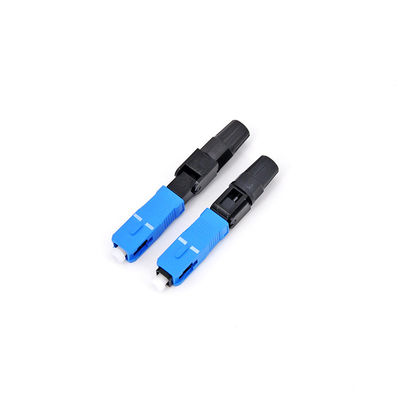

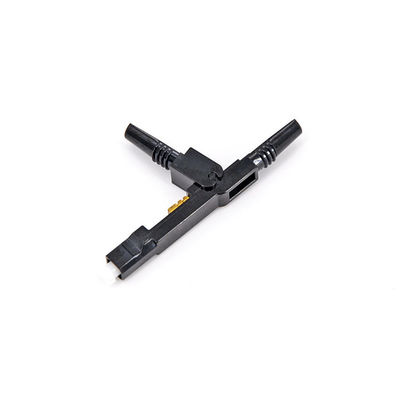

The SC fast connector SC01 is the most popular type of fast connector in the market, which features a pre-polished ferrule that couples to the fiber being terminated by precision mechanical alignment, insuring low loss with a proprietary gel.This SC Fast Connector offers convenience in assembling and strong stability. It allows simple optical core connection without any additional practices, or adhesives. It does not require a working space by connecting itself in the challenging environments such as a telephone pole and a manhole. It reconnects the cables and reduces the connection defect rate by an installer error in the field.
Assembly of the SC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. Just Strip the buffer, cleave and clean the fiber and then insert the fixed-length fiber through the ferrule of the connector. Installation takes just minutes and couldn’t be easier.
