Product Details:
|
| Application: | FTTH FTTB FTTX Network | Product Name: | FTTH Outdoor Drop Cable |
|---|---|---|---|
| Color: | Black Or Customized | Number Of Conductors: | 1 Or 2 Or 4 Or 6 Or 8 Or 12 |
| Fiber Type: | G657A1 | Fiber Count: | 1-12 |
| Jacket: | LSZH | Strength Member: | Steel Wire/FRP |
| Type: | FTTH Drop Wire Outdoor Cable | Length: | 1km Or 2km |
| Oem: | Available | ||
| High Light: | rohs ADSS indoor outdoor fiber,FTTB rohs FTTX indoor outdoor fiber,FTTB FTTX ftth drop cable installation |
||

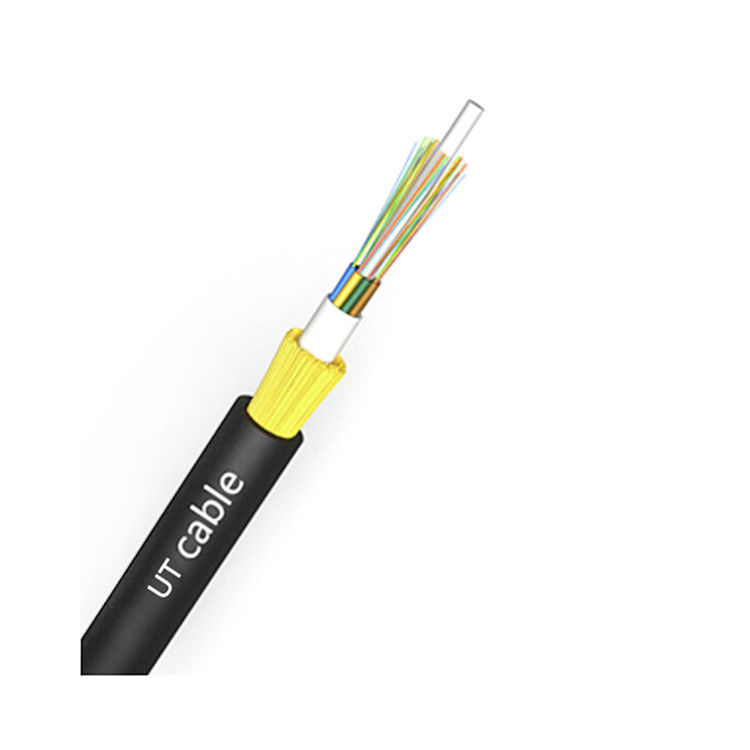

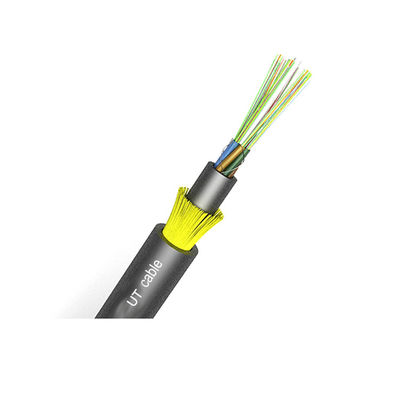

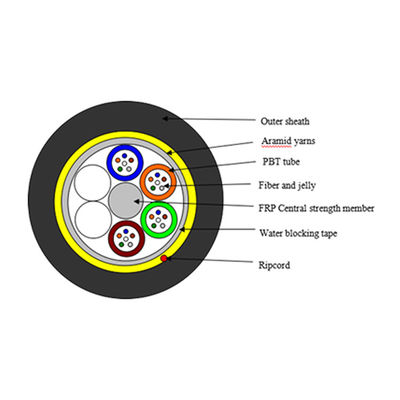

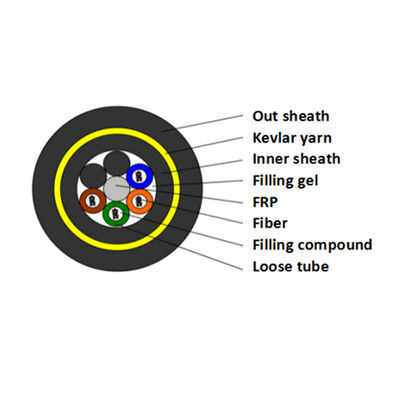

UT-King’s ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
| No. of Fibers | 2-36 | 38-72 | 74-96 | 98-120 | 122-144 | 146-216 |
| Max No. of Fibers/Tube | 6 | 12 | 12 | 12 | 12 | 12 |
| No. of Tube(+Fillers) | 6 | 6 | 8 | 10 | 12 | 18(2 layers) |
| Cable Weight(kg/km) | 89 | 135 | 150 | 185 | 220 | 225 |
| Nominal Diameter | 10.7 | 13.2 | 13.9 | 15.4 | 16.8 | 17 |
| Fiber Type | G.652D G.655 G.657 OM1 OM2 OM3 OM4 | |||||
| Max Allowable Tension | Short Term :3500N Long Term:100N MAT:3.5Kn RTS:9.0Kn Wind Speed: ≤30m/s Ics:0mm |
|||||
| Min. Bend Radius (mm) | Dynamic:20D Static:10D (D: Cable diameter) | |||||
| Temperature Range | -40°C~+70°C (Transportation& Storage) | |||||
| -35°C~+65°C(Installation) | ||||||
| -40°C~+70°C(Operation) | ||||||
Q: Are you a manufacturer or a trading company?
A: We are a professional cable manufacturer with 30 years of production experience
Q: What are our payment terms?
A: Our payment terms are usually T / T 30% of the prepayment, ie the balance before pickup or the sight letter of credit.
Q. What is the delivery time?
A: The delivery time is usually 5-30 days. If the order quantity is large, the delivery time needs to be negotiated again.
Q: Can we provide customers with free samples?
Of course, we provide free samples for customers to check.
Q: Does your price include customs clearance at the destination, import tax, installation services?
A: Sorry, we currently only provide cables and provide transportation services in China. Both parties should re-quote and negotiate other services.
Q: What is your quality guarantee and deadline?
A: Each product will be inspected by professional testing equipment, and the product will be out of the warehouse after it is qualified. Usually, the warranty period is 18 months after delivery and 12 months after installation (whichever is earlier).
