3FE Gpon Epon Compatible Modem

3FE Gpon Epon Compatible Modem
3FE Gpon Epon Compatible Modem 3FE Gpon Epon Compatible Modem 3FE Gpon Epon Compatible Modem 3FE Gpon Epon Compatible Modem

Large Image :  3FE Gpon Epon Compatible Modem

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: iso
Model Number: UT-XP6421
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: 15-18 usd/pcs
Packaging Details: 1pcs/1box 20pcs/carton
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union, MoneyGram,Credit Card
Supply Ability: 1000pcs/week

3FE Gpon Epon Compatible Modem

Product Name: Xpon Onu Brand: UT-King
Function: 1ge+3fe+1tel+wifi Wavelength: Tx 1310nm, Rx1490nm
OEM: YES Applications Distance: 20km
Chipset: Realtek, RTL9603C+RTL8192 External Power Supply: DC 12V/1A
Dimension: 200mm*140mm*40mm Weight: 0.7kg/pcs
Packing: 20pcs/carton Gross Weight: 14kg
High Light:

3FE gpon epon compatible modem


1GE ftth gpon onu


1GE gpon epon compatible modem

UT-King XPON ONU FTTH Fiber Optic Modem Optical Network Unit 1GE+3FE+WIFI XPON ONT



XPON ONU(UT-XP6421) is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, a next-generation Gigabit Passive Optical Network terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its XPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one XPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.


  • Complies with ITU-T G.984. x and IEEE802.3x, provides comprehensive GPON and EPON network compatibility
  • Downstream rates of up to 2.488Gbps and upstream rates up to 1.244Gbps
  • Fiber access and gigabit port provide incredibly fast transfer speeds
  • Supports OMCI and OAM remote management



Model No.UT-XP6421

1 *SC/UPC Port or 1 *SC/APC Port;
1 *10/100/1000Mbps RJ45 Port;
3 *10/100/1000Mbps RJ45 Port;
1 *POTS,RJ11 Port;
1 *WIFI(802.11b/g/n, 2T2R, 300Mbps,two external antenna)

ChipsetRealtek, RTL9603C+RTL8192
Data Rates & Wavelength

Upstream:1.244Gbps, 1310nm
Downstream:2.488Gbps, 1490nm

Distance0~ 20Km Max
External Power SupplyDC 12V/1A
Dimensions (Length * Width * Height)145mm×105mm×25mm
Weight (Full-Loaded)≤0.4kg
Working temperature0°C~40°C
Storage temperature:-40°C~70°C
Relative humidity:10%~90%, non-condensing




Quality of Service

Service Flow Classification based on VLAN
Schedule rules Support SP/WRR
Upstream Priority Label Support 802.1D User Priority
Rate Limit and Traffic shaping
Congestion CONUrol Support Tail-Drop
Advanced FeaturesUpstream and Downstream FEC
Dynamic Bandwidth Allocation(DBA) support NSR/SR
Up to 7 T-CONUs and 4095 GEM Ports
Optical power detection, Dying Gasp
Terminal Silent mechanism
802.3az EEE Energy Conservation
VLAN802.1Q tag VLAN
VLAN transparent mode/VLAN translation mode/VLAN trunk mode
Authentication based on SN and Password
VLAN Auto Detect
SecurityAES Encryption
Packet Filter based on VLAN

Call protocol: SIP (IMS compatible), seamless compatible with all popular call agent.
Integrate heartbeat function and support active/standby call agent.
Voice coding: ITU-T G.711/G.723.1(5.3K/6.3Kbit/s)/G.729, auto-negotiate with call agent.
Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length.
Support high/low speed fax/Modem, bypass fax, and T38 fax.
Support RFC2833 and redundant RFC2833, difference rings, MD5 authentication, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service.
Multi-party conferencing.
Line testing according to GR-909.
IP address assignment: dynamic PPPoE/DHCP Client and static IP.
Support WEB, CLI, TR069.
Integrated OAM, XML, DHCP option 66 & 67 for auto configuration and firmware upgrade.
Call loss is less than 0.01%.


Integrated 802.11b/g/n, 300Mbps, 2T2R.
Support 128 connections.
Support WEP and WPA/WPA2 security protocols.

ManagementManaged by Web, OMCI and Telnet,
Specified the management IP,
Reset to Factory default by Reset button or Web UI,
Real-time statistics, Optical Diagnostic
IGMP Snooping/Proxy

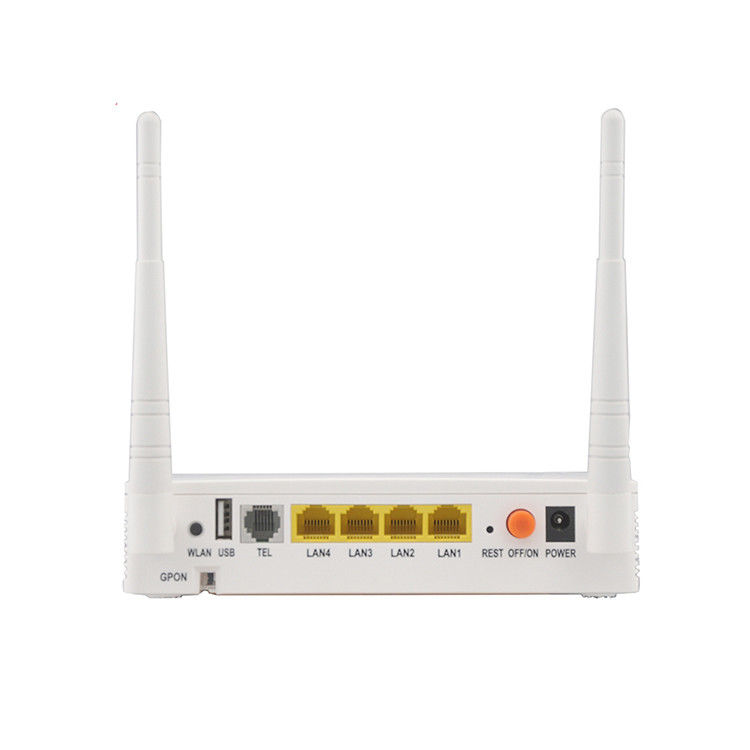

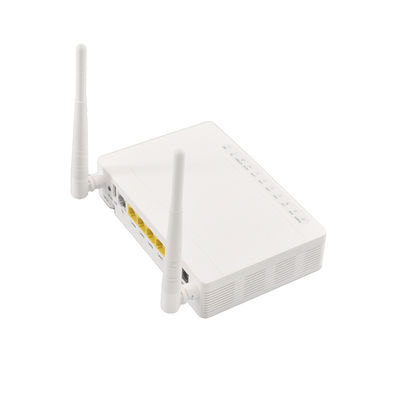

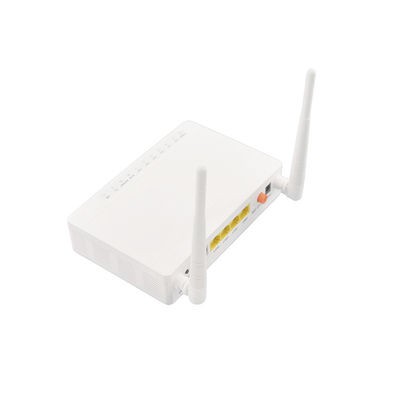

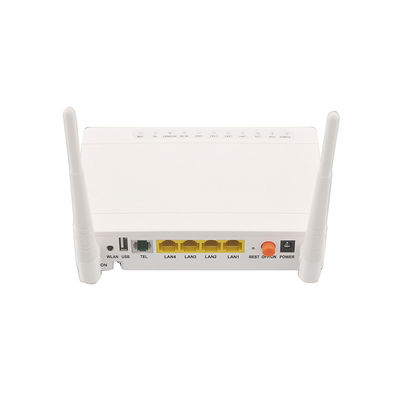

Detailed Images

3FE Gpon Epon Compatible Modem 03FE Gpon Epon Compatible Modem 13FE Gpon Epon Compatible Modem 23FE Gpon Epon Compatible Modem 3


Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.

Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.

Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
