Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: XP6104
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: 1pcs/box
Delivery Time: 7-10 work days
Payment Terms: Western Union, T/T
Supply Ability: 1000 pcs/week

1 PON Ftth Epon Ont Gpon Epon Modem ROHS Distribution Network

Description
Product Name: XPON ONU Application: FTTH FTTX
Type: ONU/ONT Power Supply: 12V 0.5A
PON Port: 1GE ONU Name: 1ge XPON ONU
Chipset: ZTE/RTL/MTK Connector Type: SC/UPC SC/APC
High Light:

APC ftth epon ont

,

dc 12v ftth epon ont

,

dc ROHS gpon epon modem

1GE ONU 1 PON PROT XPON ONU Ftth Epon Xpon Ont GEPON Optical Network Unit Optical Distribution Network

Description



XPON ONU(UT-XP6104) is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, a next-generation Gigabit Passive Optical Network terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its XPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one XPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.

UT-King 1ge xpon onuseries is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT



Features

  • Color is optional
  • Router mode supports PPPoE/DHCP/ static IP
  • Support port-based rate limitation and bandwidth control;
  • In compliant with IEEE802.3ah Standard
  • Up to 20KM transmission Distance
  • Support data encryption, group broadcasting, port Vlan separation, etc.
  • Support Dynamic Bandwidth Allocation (DBA)
  • Support ONU auto-discovery/Link detection/remote upgrade of software;
  • Support VLAN division and user separation to avoid broadcast storm;
  • Support power-off alarm function ,easy for link problem detection
  • Support broadcasting storm resistance function
  • Support ACL and SNMP to configure data packet filter flexibly
  • Specialized design for system breakdown prevention to maintain stable system
  • Support software online upgrading EMS network management based on SNMP ,convenient for
  • maintenance





Specification

User
interface
1 10/100/1000M RJ45 port
VLAN
Port-based VLAN
GVRP
IEEE 802.1Q VLAN

Route
Support NAT
Support PPPOE
Support Server Client
Support Route
Environment
Operating temperature:0℃~60℃;
Operating humidity:10%~85% non-condensing
Storage temperature:-40℃~80℃;
Storage humidity:5%~95% non-condensing
Power supply
110~240VAC 12V/0.5A DC
power interface size:2.1mm/5.5mm
PON

Transmission speed :upstream/downstream 1.25Gbps
Network coverage radius: 20KM
Optical receive sensitivity:≥-28dBm
C ontinuous light power: 0.5 dBm~+5dBm
Security: ONU authentication mechanism

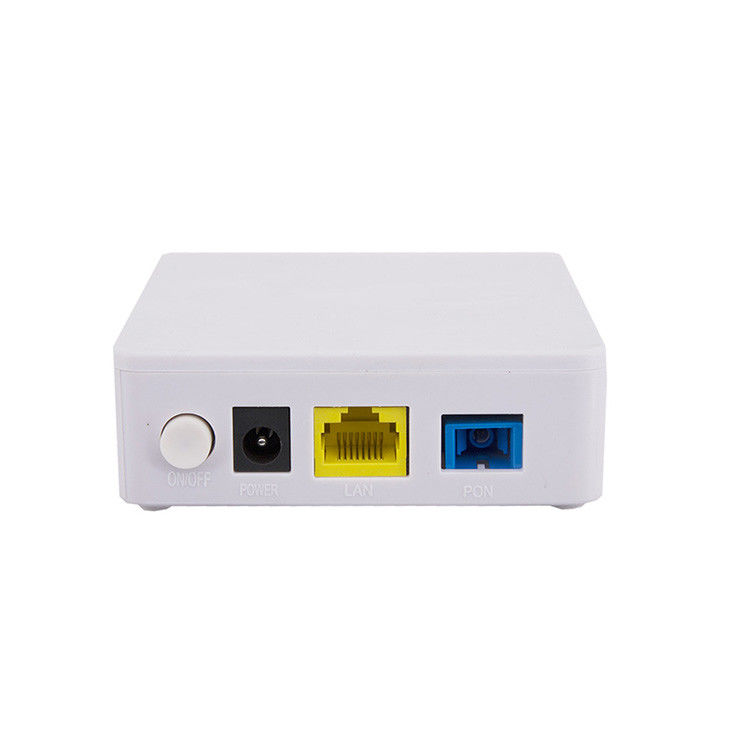

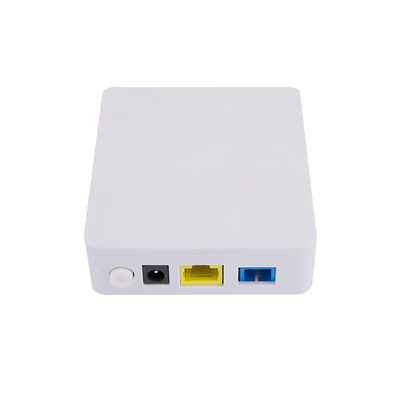

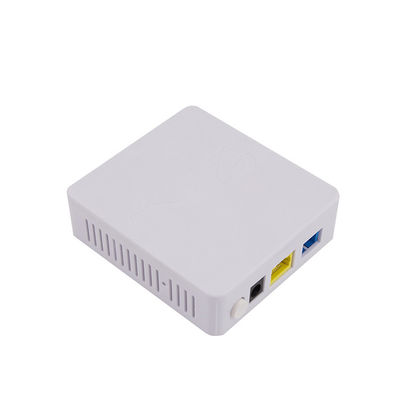

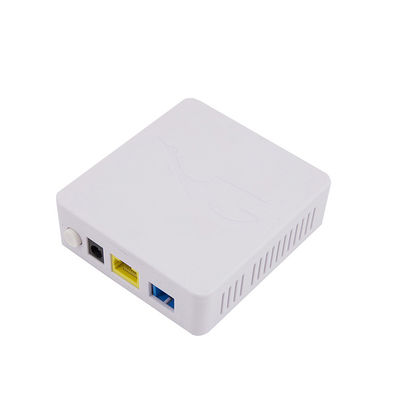

Detailed Images

1 PON Ftth Epon Ont Gpon Epon Modem ROHS Distribution Network 01 PON Ftth Epon Ont Gpon Epon Modem ROHS Distribution Network 11 PON Ftth Epon Ont Gpon Epon Modem ROHS Distribution Network 21 PON Ftth Epon Ont Gpon Epon Modem ROHS Distribution Network 3



1 PON Ftth Epon Ont Gpon Epon Modem ROHS Distribution Network 4

FAQ


Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than


Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.


Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.


Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
