1GE XPON ONU Ont Modem 1000Mbps Fiber Optical Equipment

Certification
China Shenzhen UT-King Technology Co., Ltd. certification
China Shenzhen UT-King Technology Co., Ltd. certification
I'm Online Chat Now

1GE XPON ONU Ont Modem 1000Mbps Fiber Optical Equipment

1GE XPON ONU Ont Modem 1000Mbps Fiber Optical Equipment
1GE XPON ONU Ont Modem 1000Mbps Fiber Optical Equipment 1GE XPON ONU Ont Modem 1000Mbps Fiber Optical Equipment 1GE XPON ONU Ont Modem 1000Mbps Fiber Optical Equipment 1GE XPON ONU Ont Modem 1000Mbps Fiber Optical Equipment

Large Image :  1GE XPON ONU Ont Modem 1000Mbps Fiber Optical Equipment

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: XP6102
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: 1pcs/box
Delivery Time: 7-10 work days
Payment Terms: Western Union, T/T
Supply Ability: 1000 pcs/week

1GE XPON ONU Ont Modem 1000Mbps Fiber Optical Equipment

Description
Product Name: XPON ONU Function: 1ge Port
Application: FTTH FTTX FTTA Type: ONU/ONT
Power Supply: 12V 0.5A PON Port: 1GE
Name: GEPON ONU Chipset: ZTE/RTL/MTK
Connector Type: SC/UPC SC/APC Keywords: Fiber Optical Equipment
Wavelength: TX: 1310nm, RX: 1490nm LAN Interface: 1 X 10/100/1000Mbps
Temperature: 0℃~+50℃
High Light:

upc ftth 1GE XPON ONU

,

upc ftth 1000Mbps XPON ONU

,

1000Mbps xpon ont modem

1GE XPON ONU FTTH Fiber Optical Equipment Xpon onu Modem

Description

XPON ONU(UT-XP6102) is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, a next-generation Gigabit Passive Optical Network terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its XPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one XPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.

UT-King 1ge xpon onuseries is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT



XPON ONU can work on EPON or GPON mode. It can automatically identify whether the OLT is EPON type or GPON type and switch the operation mode . Therefore, whether the current network of Operators or ISPs is EPON or GPON, xPON ONU can run in it.

Features

  • Support EPON/GPON mode and switch mode automatically
  • Support ONU auto-discovery/Link detection/remote upgrade of software
  • Support RoutePPPoE/IPoE/Static IP and Bridge mode
  • Support IPv4/IPv6 Dual mode
  • Support Firewall function and IGMP multicast feature
  • Support LAN IP and DHCP Server configuration
  • Support Port Forwarding and Loop-Detect
  • Support TR069 Remote Configuration and maintenance
  • Specialized design for system breakdown prevention to maintain stable system

Parameter

Model No. UT-XP6102
Interface

1 *SC/UPC Port or 1 *SC/APC Port;

1 *10/100/1000Mbps RJ45 Port

Chipset Realtek, ZTE/MTK
Data Rates & Wavelength

Upstream:1.244Gbps, 1310nm

Downstream:2.488Gbps, 1490nm

Distance 0~ 20Km Max
External Power Supply DC 12V/0.5A
Dimensions (Length * Width * Height) 132mm×100mm×30mm
Weight (Full-Loaded) ≤0.3kg
Working temperature 0°C~40°C
Storage temperature: -40°C~70°C
Relative humidity: 10%~90%, non-condensing

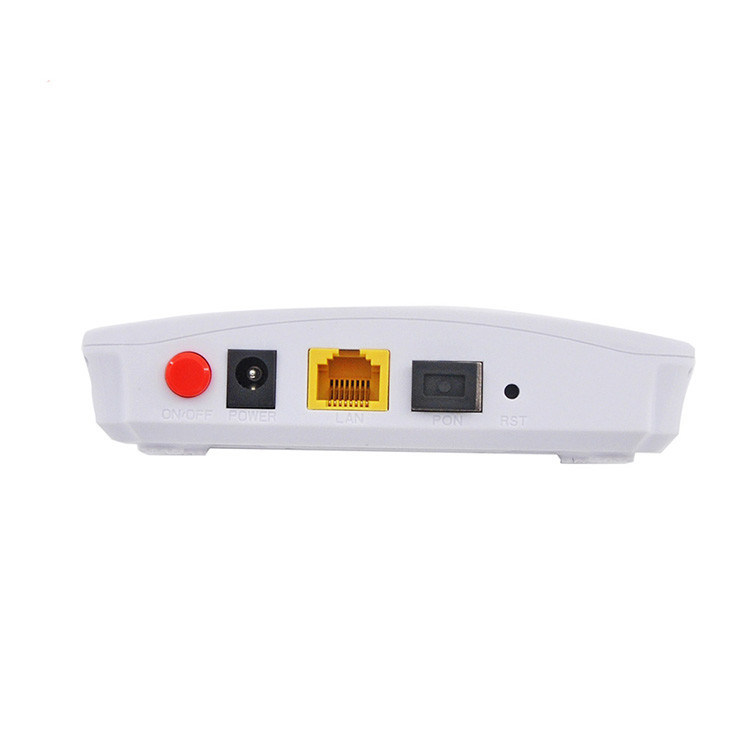

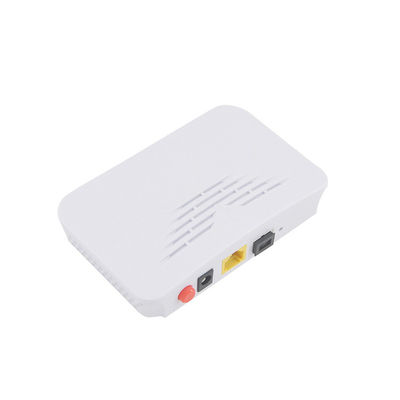

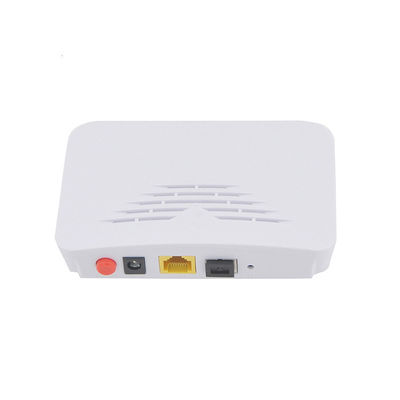

1GE XPON ONU Ont Modem 1000Mbps Fiber Optical Equipment 01GE XPON ONU Ont Modem 1000Mbps Fiber Optical Equipment 11GE XPON ONU Ont Modem 1000Mbps Fiber Optical Equipment 21GE XPON ONU Ont Modem 1000Mbps Fiber Optical Equipment 3

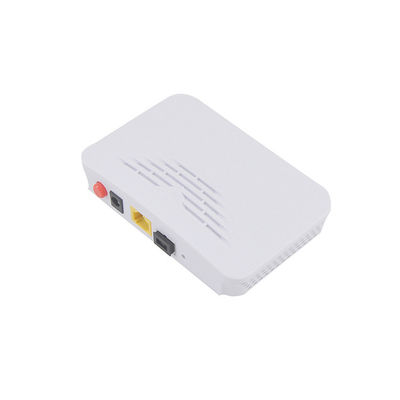

1GE XPON ONU Ont Modem 1000Mbps Fiber Optical Equipment 4
