DC PC 3FE GPON ONU Router Ftth HGU XPON ONT EPON VoIP WiFi

Certification
China Shenzhen UT-King Technology Co., Ltd. certification
China Shenzhen UT-King Technology Co., Ltd. certification
I'm Online Chat Now

DC PC 3FE GPON ONU Router Ftth HGU XPON ONT EPON VoIP WiFi

DC PC 3FE GPON ONU Router Ftth HGU XPON ONT EPON VoIP WiFi
DC PC 3FE GPON ONU Router Ftth HGU XPON ONT EPON VoIP WiFi DC PC 3FE GPON ONU Router Ftth HGU XPON ONT EPON VoIP WiFi DC PC 3FE GPON ONU Router Ftth HGU XPON ONT EPON VoIP WiFi DC PC 3FE GPON ONU Router Ftth HGU XPON ONT EPON VoIP WiFi

Large Image :  DC PC 3FE GPON ONU Router Ftth HGU XPON ONT EPON VoIP WiFi

Product Details:
Place of Origin: China
Brand Name: ZTE
Certification: CE,ROHS,ISO9001
Model Number: F663
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

DC PC 3FE GPON ONU Router Ftth HGU XPON ONT EPON VoIP WiFi

Description
Application: FTTH Function: 1GE+3FE GPON ONU
Product Name: ZTE XPON ONT Power Supply: DC 12V
PON Port: 1 X SC/PC Or SC/APC Wavelength: 1310/1490nm
Size: 165mm X 28 Mm X 110 Mm Weight: About 0.6kg
Modes Of Operation: Bridge Network-side Ports: GPON
Download: 2.448 Gb/s Transmission: 1.244 Gb/s
Transmission Range: Up To 20km Sensitivity: -28 DBm
High Light:

sc DC PC GPON ONU

,

ROHS 3FE GPON ONU

,

ROHS sc router ftth hgu

ZXHN ZTE F663 NV3a XPON ONT EPON ONT Optical Network Terminal Unit 1GE 3FE 1TEL WIFI ONU




Description

ZTE F663 NV3a is a GPON Optical Network Terminal designed for HGU (Home Gateway Unit) used in FTTH scenario, which supports L3 function to help subscriber build intelligent home network.

ZTE GPON ONT series products are mainly used in the construction of FTTH (fiber-to-the-home) and FTTO (fiber-to-the-office) scenarios, giving operators with green environmental protection, high reliability, easy operation and maintenance, and meeting multiple application scenarios. Even gigabit bandwidth brings endless possibilities for users’ home network service.



Features

  • Meeting different scenarios requirements to provide different interfaces such as FE, GE, VoIP, E1 WiFi USB and other interfaces to meet the requirements of FTTH, FTTO and FTTB application modes, not only for the home user but also for commercial users.
  • Easy for deployment Mounting mode and fibre coiling make installation very easy, with the batch configuration on EMS to ensure zero configurations on the ONT side.
  • Easy for troubleshooting Supporting ONT signal tracing and performance monitoring, and quickly locate the fault on ONT.
  • Particular power saving Supporting status monitoring when ONT is free, and enter low power consumption state; Optical module can also enter a low-power state when the battery is working.




Specification

Number of LAN ports 1x 10/100/1000BaseTX (RJ45), 3x 10/100BaseTX (RJ45)
PON standard GPON
USB port 1x USB
Features of GPON Optical port: 1 x GPON (SC / PC) interface
Transmission distance: 20 km
Transmission speed
-Download: 2,488 Gb/s
-Send: 1.244 Gb/s
User interface 1 x 10/100/1000 Base-T, half/full duplex, Automatic MDI/MDIX, automatic negotiation
3 x 10/100 Base-T, half/full duplex, automatic MDI/MDIX, automatic negotiation
2 x POTS interface
1 x Wi-Fi interface: IEEE 802.11b/g/n 2.4 GHz
1 x USB 2.0 host interface
Optical module Reception: 1480-1500 nm
Transmission: 1290-1330 nm
The sensitivity of the receiver: -28 dBm
Transmitter optical power: From 0.5 to 5 dBm
Main features Supported services: VoIP, Internet, IPTV
GPON: 8 x T-CONT, 32 x GEM port
VLAN: 802.1Q, 802.1P, 802.1ad
MC address plate: 1K
L3 functions: DHCP server/client, DNS client, NAT
IPv6: Dual stack, DS-Lite
VoIP: SIP/H.248, G.711/G.722/G.279, T.30/T.38
Wi-Fi: 4 x SSID, 2x2 MIMO, WPS
Wi-Fi Authentication: Common Key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK+WPA2-PSK, WPA2-Enterprise
Multicast: IGMP v1/v2/Snooping/Proxy, MLD v1 Snooping
Multicast group per user port: 256
QoS: Flow classification for services based on physical ports, MAC address, VLAN ID, VLAN priority level, IP address, SP/WRR/SP+WRR
Management: Local Web, OMCI, TR069
USB: DLNA DMS, USB backup, 3G/LTE adapter

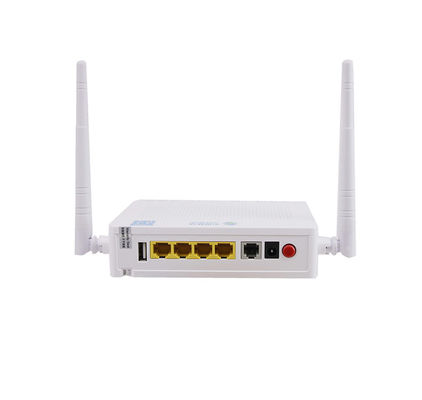

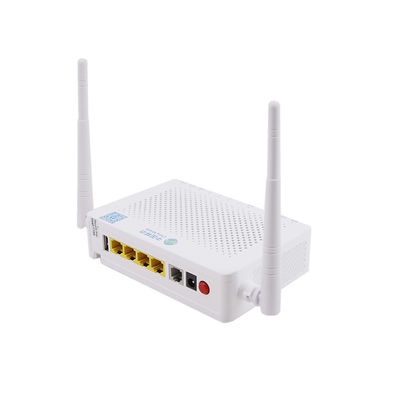

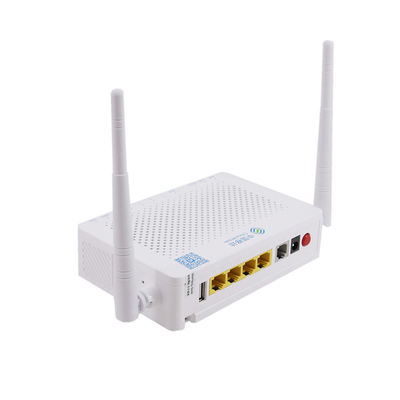

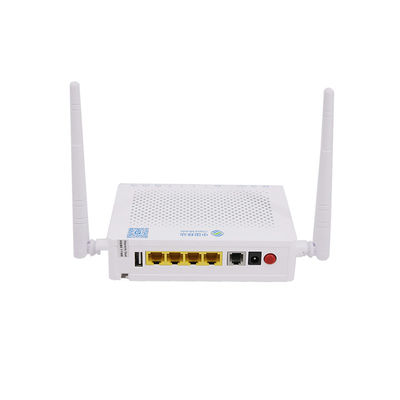

Detailed Images

DC PC 3FE GPON ONU Router Ftth HGU XPON ONT EPON VoIP WiFi 0DC PC 3FE GPON ONU Router Ftth HGU XPON ONT EPON VoIP WiFi 1DC PC 3FE GPON ONU Router Ftth HGU XPON ONT EPON VoIP WiFi 2DC PC 3FE GPON ONU Router Ftth HGU XPON ONT EPON VoIP WiFi 3

FAQ

Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available


Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.



Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.



Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
