Product Details:
Place of Origin: China
Brand Name: ZTE
Certification: CE,ROHS,ISO9001
Model Number: F670L
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

Wifi F670l Gpon Dual Band 1 Pots Xpon Ont Modem Datasheet 2 Usb 2.4g

Description
Application: FTTH Function: 4GE+1POTS+2USB+2.4G/5G WIFI 5dBi
Product Name: ZTE GPON ONT Power Supply: DC 12V
PON Port: 1 X SC/PC Or SC/APC Wavelength: 1310/1490nm
Size: 245mm X 215mm X 40mm Weight: About 0.6kg
Network-side Ports: GPON Download: 2.448 Gb/s
Transmission: 1.244 Gb/s Transmission Range: Up To 20km
High Light:

ISO9001 gpon dual band

,

DC 12V gpon dual band

,

ISO9001 12V xpon ont modem

ZTE Dual Band wifi ONT F670L Datasheet Price 4GE+1POTS+2USB+2.4G/5G WIFI 5dBi XPON ONU




Description

ZTE ZXHN F670L FTTH is a dual band Gigabit Premium triple-play GPON gateway. It comes with 1GE&3FE LAN ports, one phone port and next generation multi-stream Wi-Fi, operating simultaneously in 2.4GHz 2×2 over 802.11n and 5GHz 2×2 over 802.11ac. Based on customer requirements, the maximum 5dBi gain antennas can enhance the Wi-Fi coverage area and improve the performance.





Features

  • Meeting different scenarios requirements to provide different interfaces such as FE, GE, VoIP, E1 WiFi USB and other interfaces to meet the requirements of FTTH, FTTO and FTTB application modes, not only for the home user but also for commercial users.
  • Easy for deployment Mounting mode and fibre coiling make installation very easy, with the batch configuration on EMS to ensure zero configurations on the ONT side.
  • Easy for troubleshooting Supporting ONT signal tracing and performance monitoring, and quickly locate the fault on ONT.
  • Particular power saving Supporting status monitoring when ONT is free, and enter low power consumption state; Optical module can also enter a low-power state when the battery is working.




Specification

Brand ZTE
Model F670L
GPON Port 1x, SC/APC, 2,448 Gbit/s downstream 1,244 Gbit/s upstream
Subscriber interface 1GE & 3 FE Port, 1x POTS, WiFi (2.4 GHz 802.11b/g/n 2×2, 5 GHz 802.11a/n/ac 2×2, WPA/WPA2,WPS)
Modes Bridge, Router, AP
Wavelength downstream 1490nm
Upstream Wavelength 1310nm
Sensitivity -28 dBm
Consumption 9 W
Dimensions 205 x 120 x 28 mm
Working temperature and humidity 0°C – 40°C, 5% – 95%
Power 12 IN DC
GPON properties 8x T-CONT, 32 GEM ports
Support VLAN (802.1Q, 802.1P, 802.1ad), Multicast, QoS, DHCP Server/Client, NAT, IPv6 Dual Stack
Management Local (WEB), OMCI, TR069

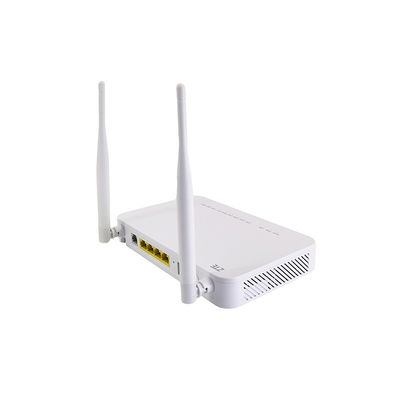

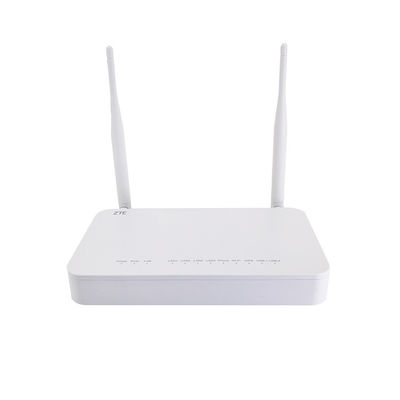

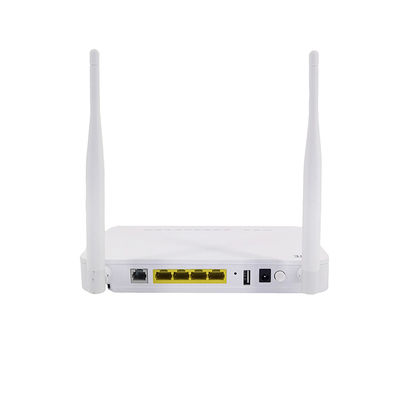

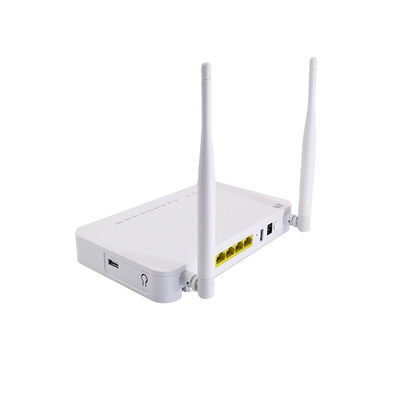

Detailed Images

Wifi F670l Gpon Dual Band 1 Pots Xpon Ont Modem Datasheet 2 Usb 2.4g 0Wifi F670l Gpon Dual Band 1 Pots Xpon Ont Modem Datasheet 2 Usb 2.4g 1Wifi F670l Gpon Dual Band 1 Pots Xpon Ont Modem Datasheet 2 Usb 2.4g 2Wifi F670l Gpon Dual Band 1 Pots Xpon Ont Modem Datasheet 2 Usb 2.4g 3

FAQ

Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available


Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.



Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.



Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
