Product Details:
|
| Product Name: | XPON ONU | Application: | FTTH FTTX |
|---|---|---|---|
| Type: | ONU/ONT | Power Supply: | 12V 0.5A |
| PON Port: | 1GE | Name: | 1ge Gpon Onu/EPON ONU |
| Chipset: | ZTE/RTL/MTK | Connector Type: | SC/UPC SC/APC |
| High Light: | 30mm Dual Mode single port onu,ROHS EPON single port onu,dc 12v ROHS wifi gepon onu |
||
It is well-known that the passive optical network system is composed of an optical line terminal (OLT), optical distribution network (ODN), and optical network unit (ONU). xPON ONU is an optical network unit that supports both EPON IEEE 802.3ah standard and GPON ITU-TG.984.x standard, which means it can be used in both EPON and GPON networks. xPON ONU also can automatically switch in EPON or GPON mode.

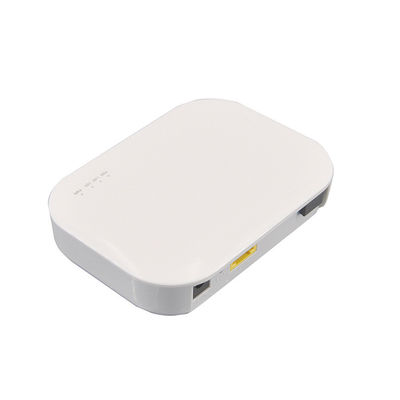

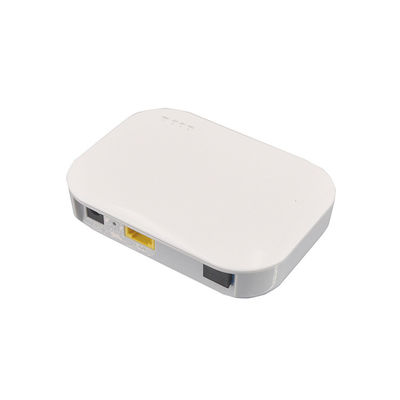

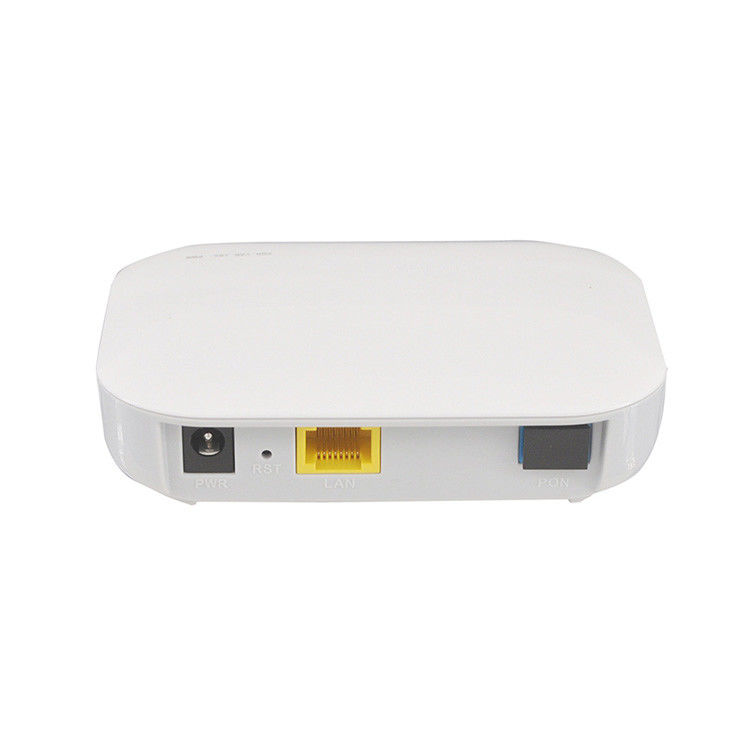

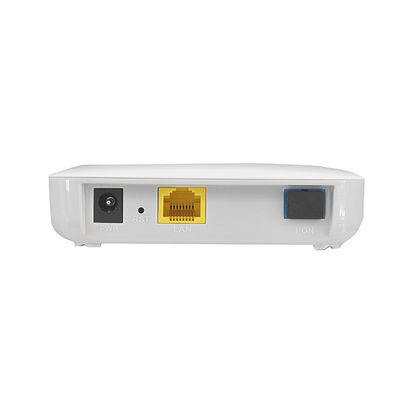

XPON ONU(UT-XP6101) is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, a next-generation Gigabit Passive Optical Network terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its XPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one XPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.
UT-King 1ge xpon onuseries is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT
| Model No. | UT-XP6101 |
| Interface |
1 *SC/UPC Port or 1 *SC/APC Port; 1 *10/100/1000Mbps RJ45 Port |
| Chipset | Realtek, ZTE,MTK |
| Data Rates & Wavelength |
Upstream:1.244Gbps, 1310nm Downstream:2.488Gbps, 1490nm |
| Distance | 0~ 20Km Max |
| External Power Supply | DC 12V/0.5A |
| Dimensions (Length * Width * Height) | 132mm×100mm×30mm |
| Weight (Full-Loaded) | ≤0.3kg |
| Working temperature | 0°C～40°C |
| Storage temperature: | -40°C～70°C |
| Relative humidity: | 10%～90%, non-condensing |
