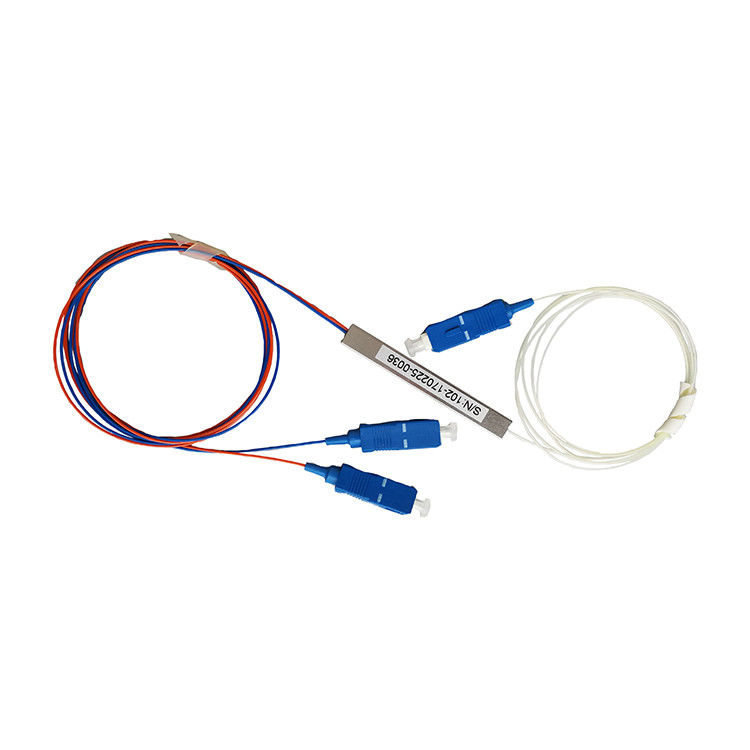

Product Details:
|
| Product Name: | PLC Splitter | Type: | Mini Type 1*2 |
|---|---|---|---|
| Application: | FTTH Networking | Fiber Type: | G657A1 |

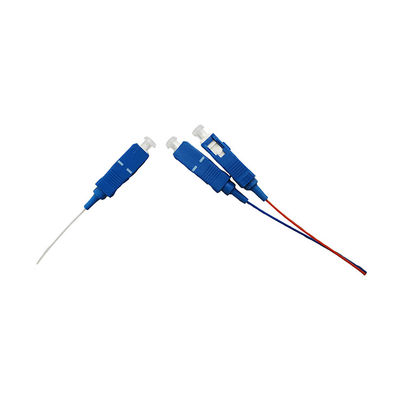

| Connector Type: | SC/UPC | Wavelength: | 1260-1650nm,1310nm/1550nm |
| Fiber Length: | 1m,1.5m Or Customized | Item: | Fiber Spliter |

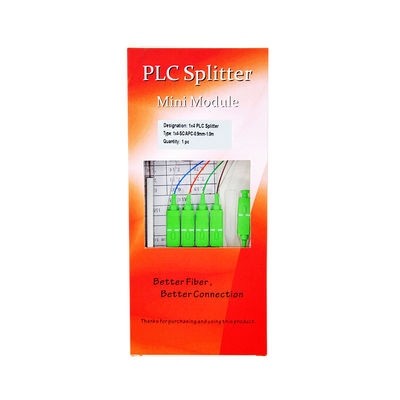

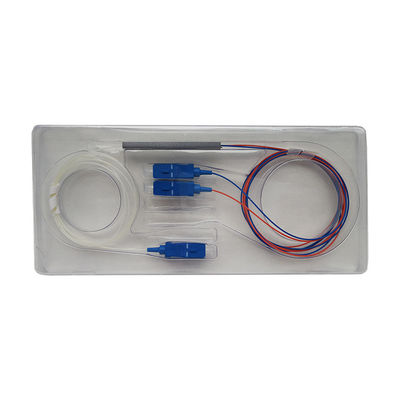

| Insertion Loss: | ≤4.1dB | Package: | 1pcs 1 Plastic Boxes |
| Model: | SM/MM | Dimension: | 60*7*4mm |
| Highlight: | UPC Fiber Optic PLC Splitter,1x2 Fiber Optic PLC Splitter,UPC gpon passive optical splitter |
||
UT-King's PLC splitters are used to separate or combine optical signals. A PLC (planar lightwave circuit) is a micro-optical component based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. PLCs are manufactured using silica glass waveguide circuits that are aligned with a v-groove fiber array chip that uses ribbon fiber. Once everything is aligned and bonded, it is then packaged inside a miniature housing.
Fiber Optic PLC Splitter is an essential passive component in Fiber to the Home network.
The full name of PLC Splitter is Planar Lightwave Circuit Splitter. It adopts silica optical waveguide technology and is used for optical power allocation from the central office to customer premises in FTTx and FTTH networks.
|
Item |
1x2 |
1x3 |
1x4 |
1x6 |
1x8 |
1x12 |
||||||||||
|
Operating Wavelength(nm) |
1260-1650 |
|||||||||||||||
|
Fiber Type |
G657A1 or as customers' order |
|||||||||||||||
|
Connector |
SC/FC/LC |
|||||||||||||||
|
Ferrule section |
UPC/APC |
|||||||||||||||
|
Insertion loss(dB) |
≤4.1 |
≤6.4 |
≤7.4 |
≤9.3 |
≤10.5 |
≤12.8 |
||||||||||
|
Loss uniformity(dB) |
≤0.4 |
≤0.4 |
≤0.6 |
≤1.6 |
≤0.8 |
≤1.2 |
||||||||||
|
Return Loss(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
||||||||||
|
Polarization Dependent Loss(dB) |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.25 |
||||||||||
|
Directivity(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
||||||||||
|
Temperature correlation loss -40～85℃(dB) |
≤0.5 |
≤0.5 |
≤0.5 |
≤1.5 |
≤0.5 |
≤0.5 |
||||||||||
|
Size(mm)(LxWxH) |
40×4×4 |
60×7×4 |
||||||||||||||
|
Working Temperature(℃) |
-40～85 |
|||||||||||||||
|
Storage Temperature(℃) |
-40～85 |
|||||||||||||||
|
Item |
1x16 |
1x24 |
1x32 |
1x48 |
1x64 |
1x128 |
||||||||||
|
Operating Wavelength(nm) |
1260-1650 |
|||||||||||||||
|
Connector |
SC/FC/LC |
|||||||||||||||
|
Ferrule section |
UPC/APC |
|||||||||||||||
|
Fiber Type |
G657A1 or as customers' order |
|||||||||||||||
|
Insertion loss(dB) |
≤13.8 |
≤15.8 |
≤16.8 |
≤18.7 |
≤20.5 |
≤24.1 |
||||||||||
|
Loss uniformity(dB) |
≤1.2 |
≤1.5 |
≤1.5 |
≤2.0 |
≤2.0 |
≤2.5 |
||||||||||
|
Return Loss(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
||||||||||
|
Polarization Dependent Loss(dB) |
≤0.25 |
≤0.3 |
≤0.3 |
≤0.4 |
≤0.4 |
≤0.4 |
||||||||||
|
Directivity(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
||||||||||
|
Temperature correlation loss -40～85℃(dB) |
≤0.5 |
≤0.5 |
≤0.5 |
≤1.5 |
≤0.5 |
≤0.5 |
||||||||||
|
Size(mm)(LxWxH) |
60×7×4 |
60×12×6 |
N/A |
|||||||||||||
|
Working Temperature(℃) |
-40～85 |
|||||||||||||||
|
Storage Temperature(℃) |
-40～85 |
|||||||||||||||
|
Item |
2x2 |
2x4 |
2x8 |
2x16 |
2x32 |
2x64 |
2x128 |
|||||||||
|
Operating Wavelength(nm) |
1260-1650 |
|||||||||||||||
|
Fiber Type |
G657A1 or as customers' order |
|||||||||||||||
|
Connector |
SC/FC/LC |
|||||||||||||||
|
Ferrule section |
UPC/APC |
|||||||||||||||
|
Insertion loss(dB) |
≤4.5 |
≤7.9 |
≤10.8 |
≤14.1 |
≤17.3 |
≤21.1 |
≤24.8 |
|||||||||
|
Loss uniformity(dB) |
≤0.9 |
≤1.1 |
≤1.2 |
≤1.5 |
≤1.8 |
≤2.2 |
≤2.5 |
|||||||||
|
Return Loss(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
|||||||||
|
Polarization Dependent Loss(dB) |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
≤0.4 |
≤0.4 |
≤0.4 |
|||||||||
|
Directivity(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
|||||||||
|
Temperature correlation loss -40～85℃(dB) |
≤0.5 |
≤0.5 |
≤0.5 |
≤1.5 |
≤0.5 |
≤0.5 |
≤0.5 |
|||||||||
|
Size(mm)(LxWxH) |
50×4×4 |
60×7×4 |
N/A |
|||||||||||||
|
Working Temperature(℃) |
-40～85 |
|||||||||||||||
|
Storage Temperature(℃) |
-40～85 |
|||||||||||||||
