225mm Wall Mount Terminal Box

225mm Wall Mount Terminal Box
225mm Wall Mount Terminal Box 225mm Wall Mount Terminal Box 225mm Wall Mount Terminal Box 225mm Wall Mount Terminal Box

Large Image :  225mm Wall Mount Terminal Box

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: FDB212A
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: 1pcs/box 10pcs/carton
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/week

225mm Wall Mount Terminal Box

Description
Product Name: Fiber Optic Distribution Box Material: 70%PC+30%ABS
Color: White/black Cable Prot: 2 In 12 Out
Dimension: 225mm*200mm*65mm Assemmbling Method: Pole Or Wall-mounting
Protection Level: IP65 Keywords: Fiber Optic Distribution Box
Number Of Packing: 10 Pcs/ctn Max Core: 12 Ports
High Light:

225mm wall mount terminal box

,

1.8kg PC wall mount terminal box

,

1.8kg ftth splitter box

FTTH Solution Wall Mounting / Pole Mounting Optical Fiber Cable Distribution Box IP65

Description

UT-King’s fiber distribution box (FDB) is normally located at the user access point to connect distribution cables and drop cables. In FTTx network, It works with the optical splitter to split optical fibers. to protect optical fiber splicing points, distribute and schedule optical fiber routings. FDB are often outdoor type.

Features

  • Water-proof design with IP-66 Protection level.
  • Integrated with splice cassette and cable management rods.
  • Manage fibers in a reasonable fiber radius condition.
  • Easy to maintain and extend the capacity.
  • Fiber bend radius control more than 40mm.
  • Suitable for the fusion splice or mechanical splice.
  • 1*8 1*16 Splitter can be installed as an option.
  • Efficient cable management.
  • 12/24 ports cable entrance for drop cable.

Application

  • Widely used in FTTH access network.
  • Telecommunication Networks
  • CATV Networks
  • Data communications networks
  • Local Area Networks(LANs)

Specification



tem FDB212A FDB224B
Dimension 225mm*200mm*65mm 320mm*240mm*100mm
Color White,Black or customized
Material 70%PC+30%ABS
Max ratio 1:12 1:24
Cable entry ports In 2 Out 12 In 2 Out 12
Diameter of Cable Φ13mm
Assemmbling method pole, wall-mounting
Protection level IP66
Outter carton size 500*480*430mm 610*500*350mm
number of Packing 20 pcs/ctn 10pcs/ctn
weight 1.3kg /pcs 1.8kg/pcs

Detail Images

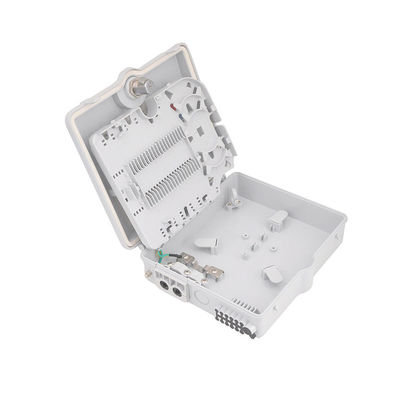

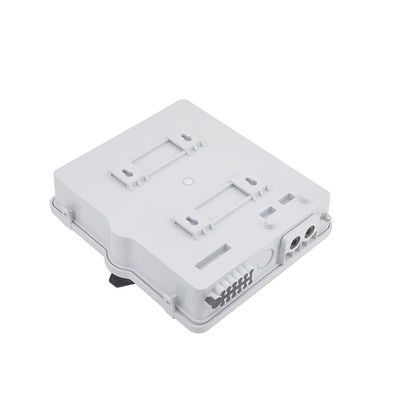

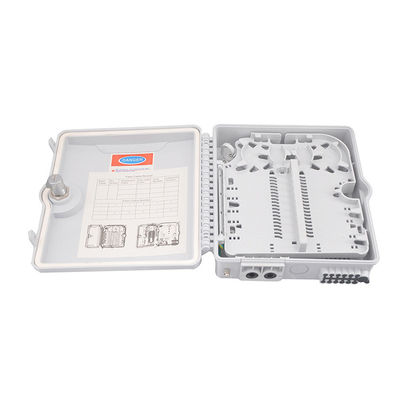

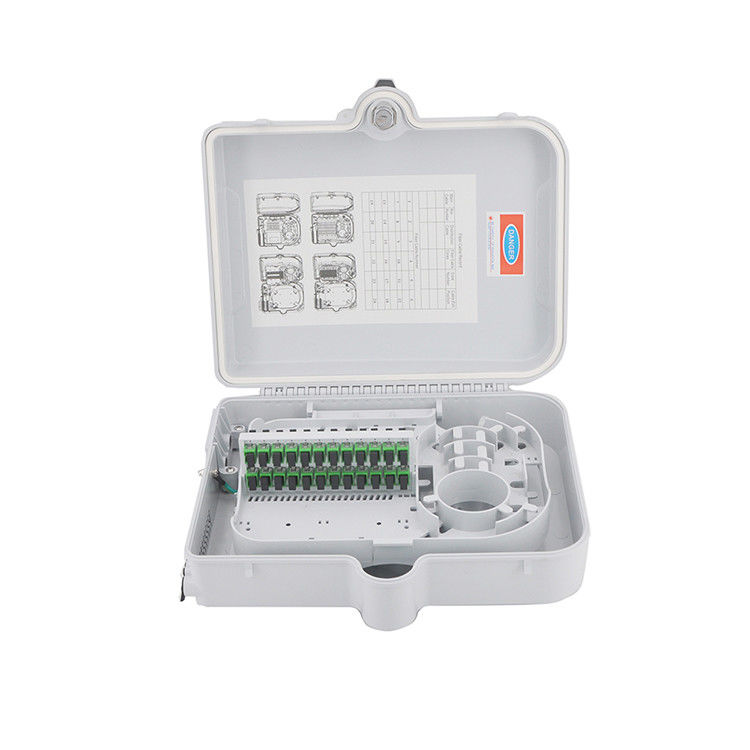

225mm Wall Mount Terminal Box 0225mm Wall Mount Terminal Box 1225mm Wall Mount Terminal Box 2225mm Wall Mount Terminal Box 3

Installation:

1.Wall-mounted installation



2.Pole-mounted installation
