Huawei XPON ONO EG8141A5 1GE+ 3FE +1TEL+WIFI ONU FTTH Optical Fiber ONU Device

Description

The Huawei EchoLife EG8141A5 is a routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users, and provides 1 GE port, 3 FE ports,1 POTS port and 1 2.4G WiFi port. The high forwarding performance ensures the user experience of data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.
From here,you can find the Huawei EchoLife EG8141A5 user manuals and user guides, including the product description, configuration guide, and troubleshooting guide.

Features

• Full compatible with ITU-T G.984.
• Support port-based rate limitation and bandwidth control
• Integrated OMCI remote configuration and maintenance function.
• Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
• Support Dynamic Bandwidth Allocation (DBA)
• Support ONT auto-discovery/Link detection/remote upgrade of software;
• Support VLAN division and user separation to avoid broadcast storm;
• Support power-off alarm function ,easy for link problem detection
• Support broadcasting storm resistance function
• Support port isolation between different ports
• Support ACL and SNMP to configure data packet filter flexibly
• Specialized design for system breakdown prevention to maintain stable system
• Support software online upgrading
• EMS network management based on SNMP ,convenient for maintenance

Specification

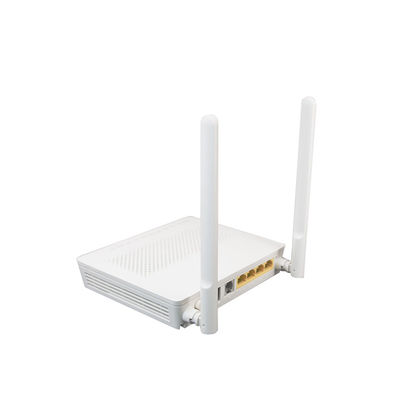

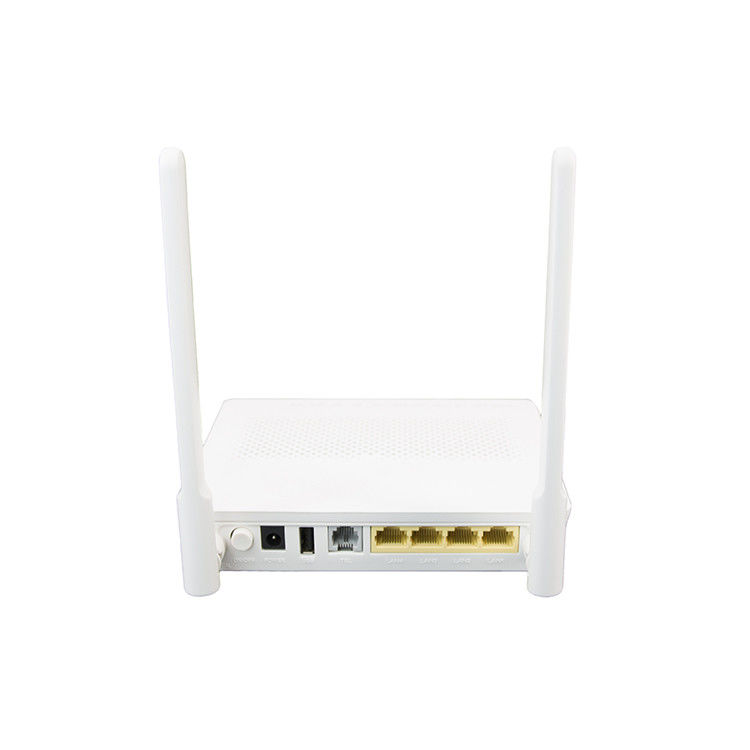

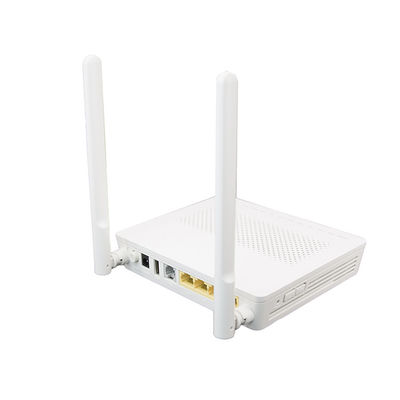

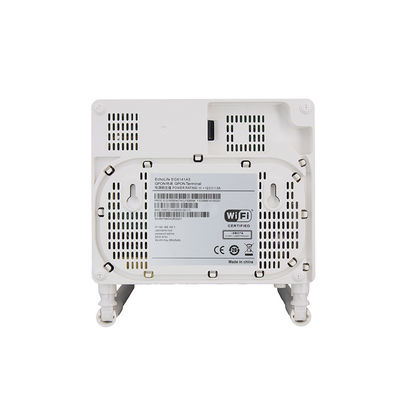

Detailed Images

FAQ

Q: What is ONT's optical power range?
A: For the Huawei EG8141A5 using GPON upstream transmission: -27 dBm to -8 dBm (Class B+); -30 dBm to -8dBm (Class C+).

Q: Can Huawei EG8141A5 connect to a switch in the lower layer to support the enterprise private line service?
A: No. Huawei EG8141A5 cannot connect to a PON terminal, switch, or router in the lower layer.

Q: Can an optical port on Huawei EG8141A5 connect to an optical port on an optical transceiver?
A: No. The optical port on Huawei EG8141A5 is a PON port while the optical port on an optical transceiver is a GE port.

Q: How to change a digitmap mapping mode of Huawei EG8141A5?
A: Choose Voice > VoIP Basic Configuration from the main menu on the web page and configure Digitmap Match Mode.

Q: Which ONTs support dual-band Wi-Fi?
A: The ONTs with a name ended with "D" or "Q" support dual-band Wi-Fi, such as the HG8245D and HG8245Q.
XG-PON gateway type ONTs support dual-band Wi-Fi, such as the HN8055Q and HN8245Q.

Q: Can I use an iPad to log in to the Huawei EG8141A5 web page to upgrade the firmware version, or update and download the Huawei EG8141A5 configuration file?
A: An iPad cannot be used to perform a firmware upgrade, or update or download the Huawei EG8141A5 configuration file
