Product Details:
|

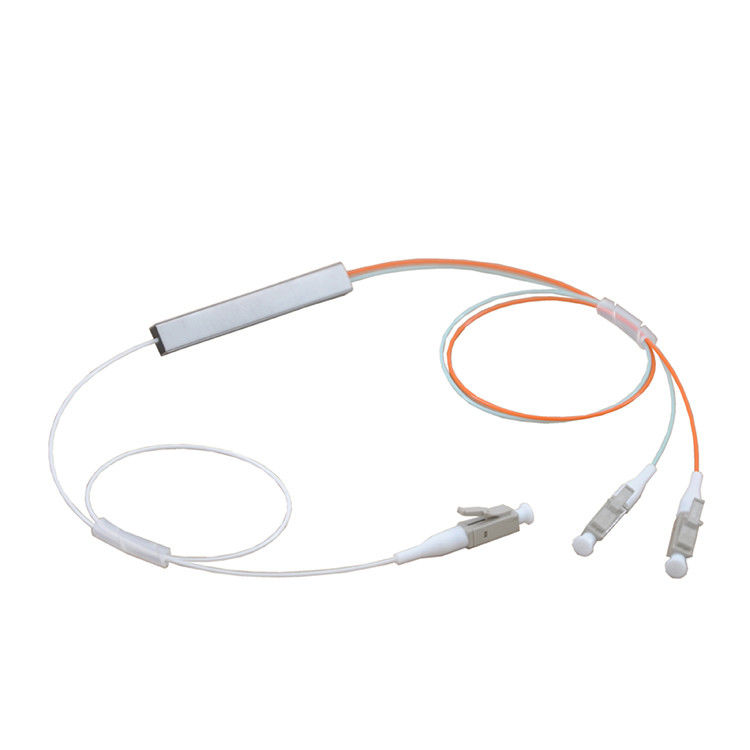

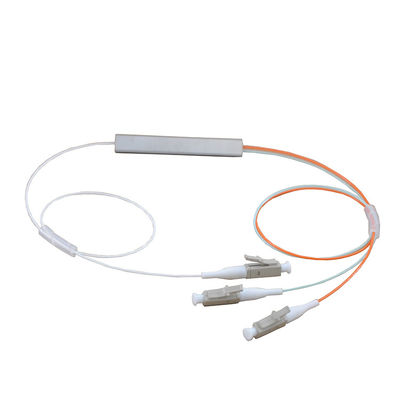

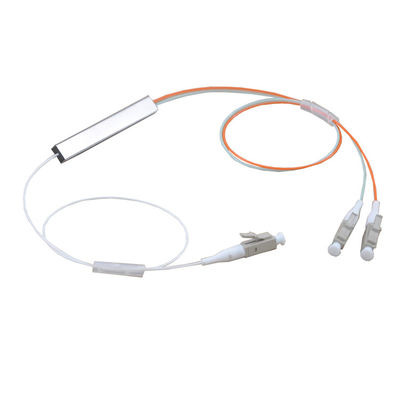

Product Name: | PLC Splitter | Type: | Mini Type 1x2 |
---|---|---|---|
Application: | FTTH FTTX Solution | Fiber Type: | G657A1 |
Connector Type: | LC/UPC | Wavelength: | 805nm |
Item: | Cassette Fiber Spliter | Insertion Loss: | 4.5dB |
Model: | SM/MM | Splitter Ratio: | 1*2 |
Keywords: | PLC Splitter | ||
High Light: | OM2 Fiber Optic PLC Splitter,FTTH Fiber Optic PLC Splitter,FTTH 1x2 fiber splitter |
UT-King l fiber splitter play an increasingly significant role in many of today’s optical network topologies. They provide capabilities that help users maximize the functionality of optical network circuits from FTTx systems to traditional optical networks. And usually they are placed in the central office or in one of the distribution points (outdoor or indoor). This article will talk about two types of optical splitters (PLC splitter and FBT splitter) and then have a comparison between them. FBT splitters vs. PLC splitters: what are the differences?
PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON,BPON,GPON etc ) connected local and terminal equipment and realize the optical signal devide.
UT-King provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORErequirements.We produce all kinds of PLC splitters of fiber optic and sell at home and aboard: mini module type, LGX module type, steel tube type, bare fiber type, ABS plastic module type, Rack type, fusion module tray type, splitter closure type... etc.
Item |
1x2 |
1x3 |
1x4 |
1x6 |
1x8 |
1x12 |
||||||||||
Operating Wavelength(nm) |
1260-1650 |
|||||||||||||||
Fiber Type |
G657A1 or as customers' order |
|||||||||||||||
Connector |
SC/FC/LC |
|||||||||||||||
Ferrule section |
UPC/APC |
|||||||||||||||
Insertion loss(dB) |
≤4.1 |
≤6.4 |
≤7.4 |
≤9.3 |
≤10.5 |
≤12.8 |
||||||||||
Loss uniformity(dB) |
≤0.4 |
≤0.4 |
≤0.6 |
≤1.6 |
≤0.8 |
≤1.2 |
||||||||||
Return Loss(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
||||||||||
Polarization Dependent Loss(dB) |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.25 |
||||||||||
Directivity(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
||||||||||
Temperature correlation loss -40~85℃(dB) |
≤0.5 |
≤0.5 |
≤0.5 |
≤1.5 |
≤0.5 |
≤0.5 |
||||||||||
Size(mm)(LxWxH) |
40×4×4 |
60×7×4 |
||||||||||||||
Working Temperature(℃) |
-40~85 |
|||||||||||||||
Storage Temperature(℃) |
-40~85 |
|||||||||||||||
Item |
1x16 |
1x24 |
1x32 |
1x48 |
1x64 |
1x128 |
||||||||||
Operating Wavelength(nm) |
1260-1650 |
|||||||||||||||
Connector |
SC/FC/LC |
|||||||||||||||
Ferrule section |
UPC/APC |
|||||||||||||||
Fiber Type |
G657A1 or as customers' order |
|||||||||||||||
Insertion loss(dB) |
≤13.8 |
≤15.8 |
≤16.8 |
≤18.7 |
≤20.5 |
≤24.1 |
||||||||||
Loss uniformity(dB) |
≤1.2 |
≤1.5 |
≤1.5 |
≤2.0 |
≤2.0 |
≤2.5 |
||||||||||
Return Loss(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
||||||||||
Polarization Dependent Loss(dB) |
≤0.25 |
≤0.3 |
≤0.3 |
≤0.4 |
≤0.4 |
≤0.4 |
||||||||||
Directivity(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
||||||||||
Temperature correlation loss -40~85℃(dB) |
≤0.5 |
≤0.5 |
≤0.5 |
≤1.5 |
≤0.5 |
≤0.5 |
||||||||||
Size(mm)(LxWxH) |
60×7×4 |
60×12×6 |
N/A |
|||||||||||||
Working Temperature(℃) |
-40~85 |
|||||||||||||||
Storage Temperature(℃) |
-40~85 |
|||||||||||||||
Item |
2x2 |
2x4 |
2x8 |
2x16 |
2x32 |
2x64 |
2x128 |
|||||||||
Operating Wavelength(nm) |
1260-1650 |
|||||||||||||||
Fiber Type |
G657A1 or as customers' order |
|||||||||||||||
Connector |
SC/FC/LC |
|||||||||||||||
Ferrule section |
UPC/APC |
|||||||||||||||
Insertion loss(dB) |
≤4.5 |
≤7.9 |
≤10.8 |
≤14.1 |
≤17.3 |
≤21.1 |
≤24.8 |
|||||||||
Loss uniformity(dB) |
≤0.9 |
≤1.1 |
≤1.2 |
≤1.5 |
≤1.8 |
≤2.2 |
≤2.5 |
|||||||||
Return Loss(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
|||||||||
Polarization Dependent Loss(dB) |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
≤0.4 |
≤0.4 |
≤0.4 |
|||||||||
Directivity(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
|||||||||
Temperature correlation loss -40~85℃(dB) |
≤0.5 |
≤0.5 |
≤0.5 |
≤1.5 |
≤0.5 |
≤0.5 |
≤0.5 |
|||||||||
Size(mm)(LxWxH) |
50×4×4 |
60×7×4 |
N/A |
|||||||||||||
Working Temperature(℃) |
-40~85 |
|||||||||||||||
Storage Temperature(℃) |
-40~85 |
Detailed Images
