Product Details:
|
| Application: | FTTH FTTX | Product Name: | Pon Power Meter |
|---|---|---|---|
| Detector Type: | InGaAs | TOptical Interface: | FC/SC/ST Interchangeable/2.5 Universal Adapter |
| Fiber Type: | SM 9/125um | Measurement Unit: | DB/dBm/xW |
| Resolution (dB): | 0.01dB | Dimension: | 173mmX82mmX37mm |
| Highlight: | GPON Fiber Optic Tool Kit,VFL Fiber Optic Tool Kit,GPON handheld optical power meter |
||

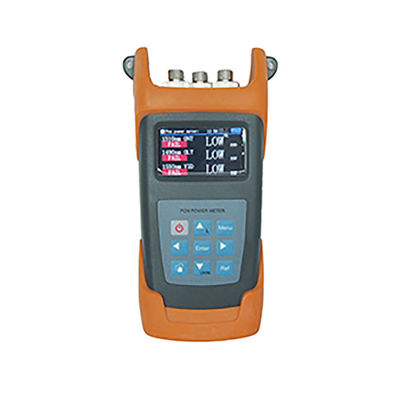

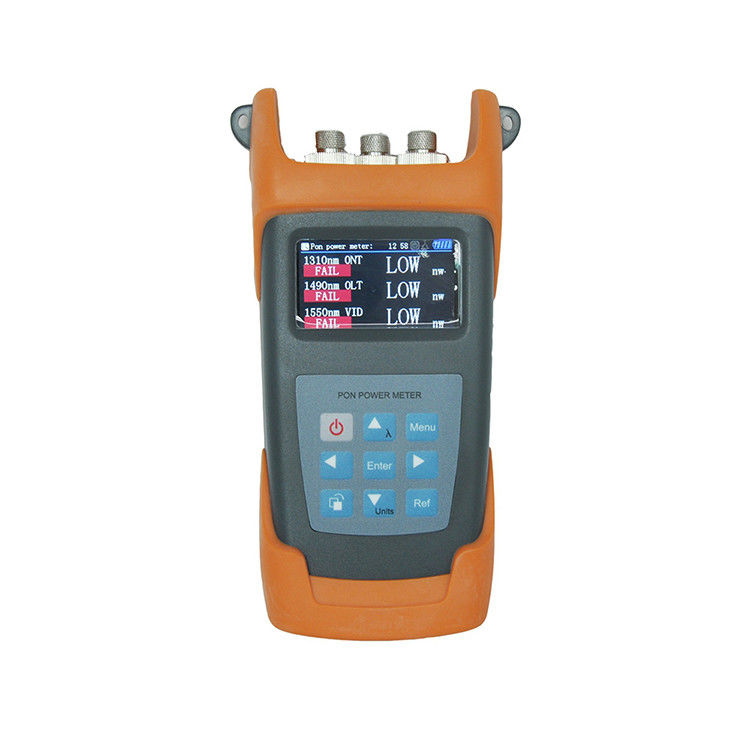

UT-King’s UT-3214 PON Optical Power Meter is able to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the construction and maintenance of the PON projects.
| PON module: | UT-3214 |
| 1310 upstream measurement | |
| Pass Zone(nm) | 1260nm～1360nm |
| Measurement Range(dBm) | -35dBm～+10dBm |
| Output power(max) | 15dBm |
| Isolation@1490/1550(dB) | >40dB |
| Burst mode measurement error | <±0.5dB |
| 1490 downstream measurement | |
| Pass Zone(nm) | 1470nm～1505nm |
| Measurement Range(dBm) | -40dBm～+12dBm |
| Output power(max) | 15dBm |
| Isolation@1310/1550(dB) | >40dB |
| 1550 downstream measurement | |
| Pass Zone(nm) | 1540nm～1560nm |
| Measurement Range(dBm) | -40dBm～+25dBm |
| Output power(max) | 25dBm |
| Isolation@(1310/1490nm) | >40dB |
| Measurement Accuracy | |
| Connatural uncertainty(dB) | ±0.5dB |
| Linearity(dB) | ±0.1dB |
| Passing through insertion Loss(dB) | <1.5dB |
| General Information | |
| Detector Type | InGaAs |
| Optical Connector | FC/SC/ST Interchangeable/2.5 universal adapter |
| Fiber Type | SM 9/125um |
| Measurement Unit | dB/dBm/xW |
| Resolution (dB) | 0.01dB |
| Operation Voltage(V) | DC 3.3V～5.5V |
| Power Supply | 3pc1.5V battery |
|
Continuously Operation time (h)
|
PON:90h OPM:100h VFL:50h |
| Operation Temperature(℃) | -10℃～60℃ |
| Storage temperature(℃) | -25℃～70℃ |
| Weight(kg) | 425g |
| Normal Optical Power Meter | UT-3214 | |
| Measurement Accuracy | ||
| Connatural uncertainty(dB) | ±0.5dB | |
| Linearity(dB) | ±0.1dB | |
| Measurement Range(dBm) | -70dBm～+6dBm | |
| General Information | ||
| Measurement Unit | dB/dBm | |
| Resolution (dB) | 0.01dB | |
| Calibration Wavelength(nm) | 1310/1490/1550/1625 | 1310/ 1490/1550/1625 |
| Detector Type | InGaAs | |
| Optical Connector | FC/SC/ST Interchangeable/2.5 universal adapter | |
L Module:
| VFL | UT-3214 |
| Output power | >0.5mW |
| Wavelength | 650nm |
| Optical Connector | FC/SC/ST Interchangeable/2.5 universal adapter |
| Fiber Type | SM/MM |
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
