Product Details:
Place of Origin: China
Brand Name: ZTE
Certification: CE,ROHS,ISO9001
Model Number: F660V8
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

1POTS Optical Terminal Unit

Application: FTTH Function: 1GE+3FE+1POTS
Product Name: Fiber ONU Device Power Supply: 12V 1A
PON Port: SC/UPC SC/APC Wavelength: 1310/1490nm
Packing Dimension: 220*160*44mm Weight: About 0.6kg
Power Adapter: EU,US,UK,AU
High Light:

1POTS optical terminal unit


1490nm optical terminal unit


1490nm gpon optical network terminal

Huawei XPON ONO EG8141A5 1GE+ 3FE +1TEL+WIFI ONU FTTH Optical Fiber ONU Device



ZTE F660 V8.0 is a GPON Optical Network Terminal designed for HGU (Home Gateway Unit) used in FTTH scenario, which supports L3 function to help subscriber construct intelligent home network.ZTE F660 provides an GPON interface to connect OLT with an ODN. It offers a new choice for operators to deliver FTTH access.

POL (Passive Optical LAN) is a new type of LAN networking solution based on PON technology, which combines different services such as data, voice, video, and wireless access into one optical fiber network, inheriting the PON network With the advantages of large bandwidth, high reliability, low latency, flatness, easy deployment, and easy management, it is the best choice for different scenarios such as smart parks, commercial buildings, enterprises, campuses, hotels, governments, and finance.



  • Fiber access:Connecting internet throungh GPON access method
  • Ethernet fuction: It Provids 4 Ethernet ports and Ethernet devices can be directly connected to the ZXHN F660 Ethernet port to achieve Internet and IPTV services.
  • VoIP function: It Provids 1 VoIP(Phone) ports supporting softswitch SIP, IMS SIP or H.248 voice control protocol and telephone can be connected via this interface.
  • Internal WLAM fuction: Users can connect to the ZXHNF627 via WLAN, enabling wireless Internet access.
  • Data sharing, fast backup, data recovery and other functions: It provides USB2.0 port.Pluging a USB memory device,it can achieve all these fuctions.
  • Under the premise of providing the above functions ,achieving security, QoS and network management are also took into the consideration.
  • Providing multi-level authentication based on device, user, service, and encryption of data channels
  • For different service requirements of the business,it can complete the local equipment and network matching QoS requirements
  • Holding network management based on multiple management methods




  • Catering for different scenarios it provides different interfaces such as FE,GE,VoIP, E1, WiFi,USB and other interfaces to meet the requirements of FTTH,FTTO and FTTB application modes, not only for home user, but also for commercial users.It supports full service operation with high QoS and security, such as HSI, VoIP, IPTV.
  • Easy for deployment Mounting mode and fiber coiling make installation very easy.
  • Easy for trouble shooting Support ONT signal tracing and performance monitoring, and quickly locate fault on ONT.
  • Particular power saving Supports status monitoring when ONT is free, and enter low-power


Brand ZTE
Model F660V8.0
Optical port 1 x GPON interface
Transmission Distance 0-20KM
Transmit rate 2.488Gbps downstream; 1.244Gbps upstream
User-Network Interface 1GE +3FE port
1 x Wi-Fi interface
1 x USB host interface
1 x POTS interfaces
Wavelength Receiving: 1480~1500 nm Transmitting: 1290~1330 nm
Receiving Sensitivity -28dBm
Transmitting Optical Power 0.5~5dBm
Power consumption <10W
Dimensions 220mm(W) x 44mm(H) x 160mm(D)
Working temperature: 0oC ~ 40oC
Working humidity 5% ~ 95%
Weight 380G
Power supply 12V DC

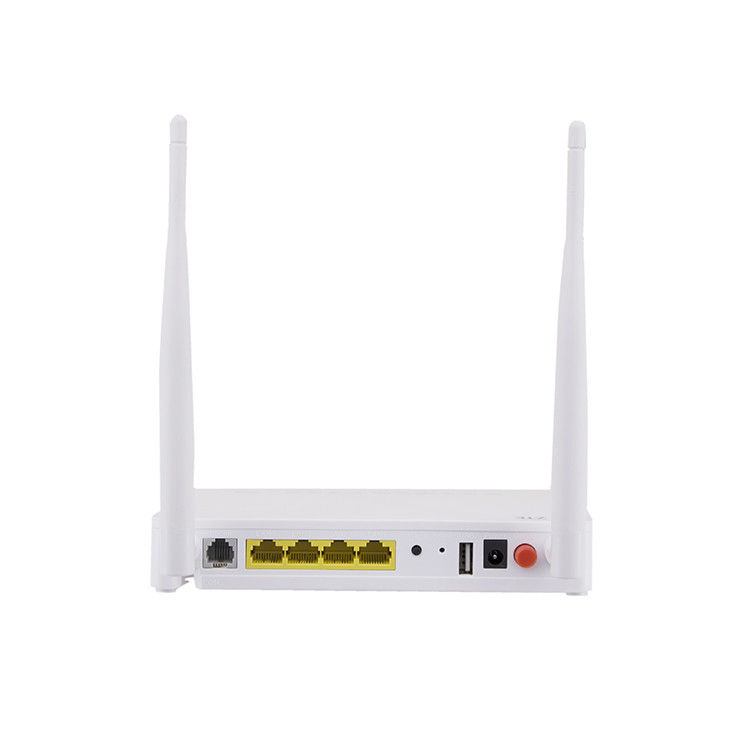

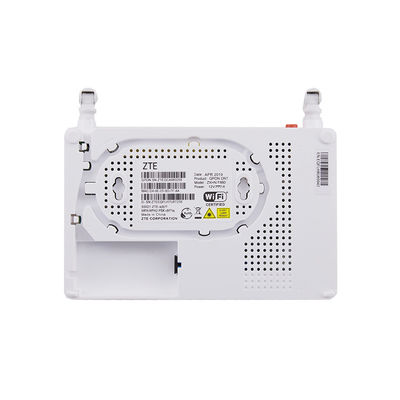

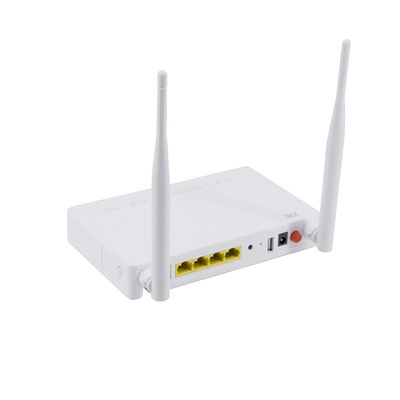

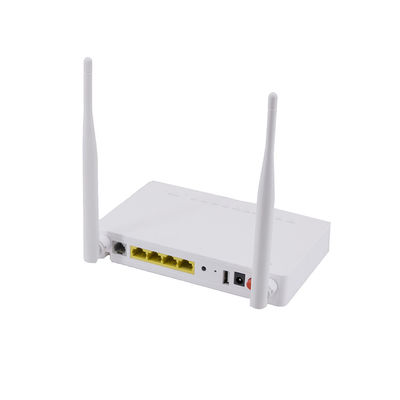

Detailed Images

1POTS Optical Terminal Unit 01POTS Optical Terminal Unit 11POTS Optical Terminal Unit 21POTS Optical Terminal Unit 3

1POTS Optical Terminal Unit 4
