IP68 Mini Fiber Optic Distribution Box

IP68 Mini Fiber Optic Distribution Box
IP68 Mini Fiber Optic Distribution Box IP68 Mini Fiber Optic Distribution Box IP68 Mini Fiber Optic Distribution Box IP68 Mini Fiber Optic Distribution Box

Large Image :  IP68 Mini Fiber Optic Distribution Box

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: GJS-DC04
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: 1pcs/box 10pcs/carton
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/week

IP68 Mini Fiber Optic Distribution Box

Description
Product Name: Fiber Optic Splice Closure Material: Dome & Base :Modified P.P+GF Tray: ABS
Color: Black Cable Prot: 2 In 8 Out
Dimension: 183*182mm Adapter: 8 Pcs SC Adapters Available
Keywords: Fiber Optic Distribution Box Number Of Packing: 8pcs/ctn
Protection Level: IP68 Net Weight: 1.2kg
High Light:

IP68 Mini Fiber Optic Distribution Box

,

182mm Fiber Optic Distribution Box

,

182mm fiber splitter distribution box

IP68 Waterproof Dome Type 12 Cores Mini Fiber Optic Splice Closure Fiber Optic Connection Box GJS-DC04





Description

UT-King’s fiber optic splice closures are used throughout the network, including the fiber trunk, feeder, distribution, and last mile segments. Our specially designed to protect joints of optic cable. Excessive fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 12 fibers; Available for 1 trays to splice total 12 fibers. Adopt modified PP material, with anti-UV, anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.



fiber optic splice closures are specially designed to protect joints of optic cable. Excessive fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 12 fibers; Available for 1 trays to splice total 12 fibers. Adopt modified PP material, with anti-UV, anti-aging and corrosionresistance material. Goodquality and long service life. It is reusable.





Application

  • Widely used to connect or branch the outdoor optic cable fibers in wall/pole applications.
  • Fully Mechanical sealing and re-open design, available for split with fast connectors without open the closure.
  • Simple inner structured and easy to installation, is the best choice for the network construction.





Features

  • Excessive fibers can be stored in storage baskets. Easy in fiber management.
  • Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.
  • Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.
  • The splice trays are hinged for access to any splice tray, without disturbing other trays.
  • The inner parts and fixing parts are made of stainless steel.
  • With a earthing device protect it from damage by lightning.
  • Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, hand hole, manhole)and in many applications(tap-off, expressed, branch, and repair).





Specification

Model UT-GJS-DC04
Dimension 182x183mm
Capacity of FOSC 1 splice Tracy(12 core)
Cable entry ports 2 in 8 out
Adapter 8 pcs SC adapters available
Protection level IP68
material Dome & base :Modified P.P+GF
Tray: ABS
Net Weight 1.2kg
Outter carton size 450*450*440mm
number of Packing 8 pcs/ctn
weight 18kg /ctn





Detail Images

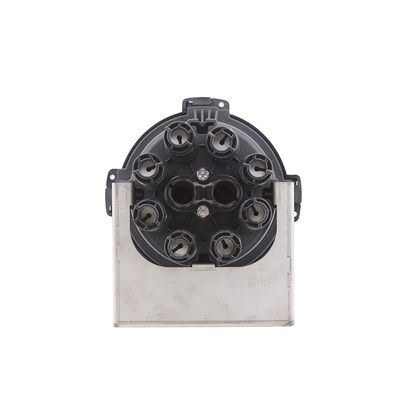

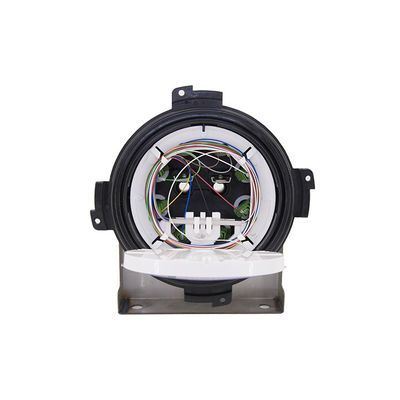

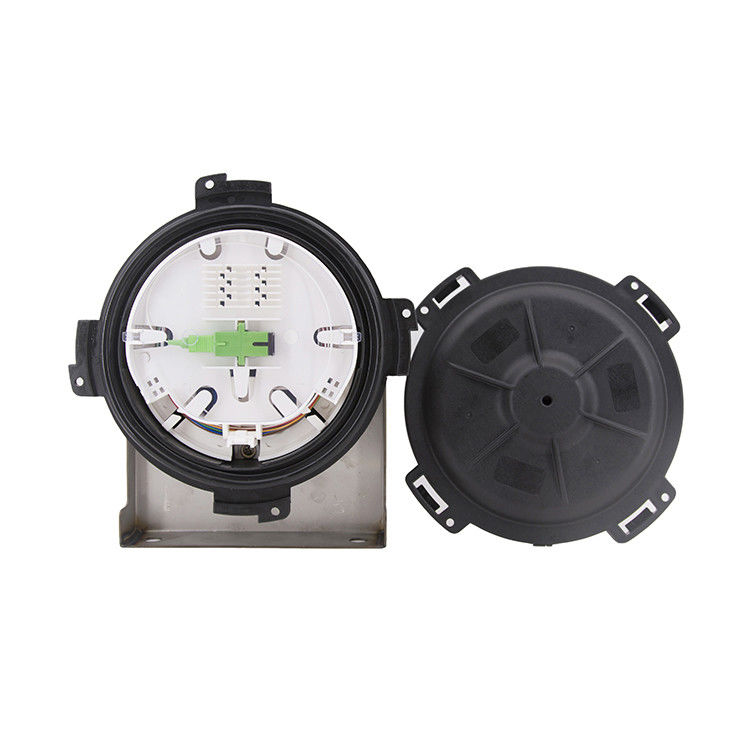

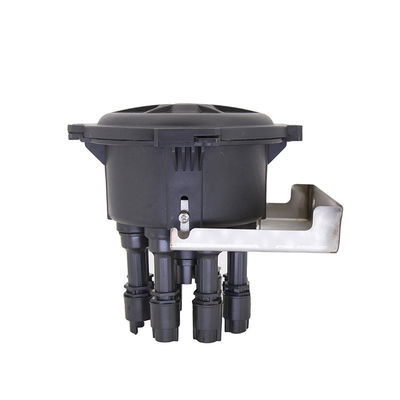

IP68 Mini Fiber Optic Distribution Box 0IP68 Mini Fiber Optic Distribution Box 1IP68 Mini Fiber Optic Distribution Box 2IP68 Mini Fiber Optic Distribution Box 3
