GYTS FTTB Fiber Optic Cable

China Shenzhen UT-King Technology Co., Ltd. certification
China Shenzhen UT-King Technology Co., Ltd. certification
I'm Online Chat Now

GYTS FTTB Fiber Optic Cable

GYTS FTTB Fiber Optic Cable
GYTS FTTB Fiber Optic Cable GYTS FTTB Fiber Optic Cable

Large Image :  GYTS FTTB Fiber Optic Cable

Product Details:
Place of Origin: china
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: GYTS
Payment & Shipping Terms:
Minimum Order Quantity: 1km
Packaging Details: 1km/drum,2km/drum
Delivery Time: 3-7days
Payment Terms: T/T, Western Union
Supply Ability: 1000km /week

GYTS FTTB Fiber Optic Cable

Application: FTTH FTTB FTTX Network Product Name: Fiber Optic Cable GYTS
Fiber Brand: Corning/Yofc/LS Fiber Type: SM/MM/OM3/OM4
Fiber Count: 2-144 Length: 1km/roll/2km/roll
Package: Wooden / Plywood Reel Keywords: GYTS
Loose Tube: Jelly Filled Jacket: HDPE
High Light:

GYTS Fiber Optic Cable


FTTB Fiber Optic Cable


FTTB single mode multimode fiber

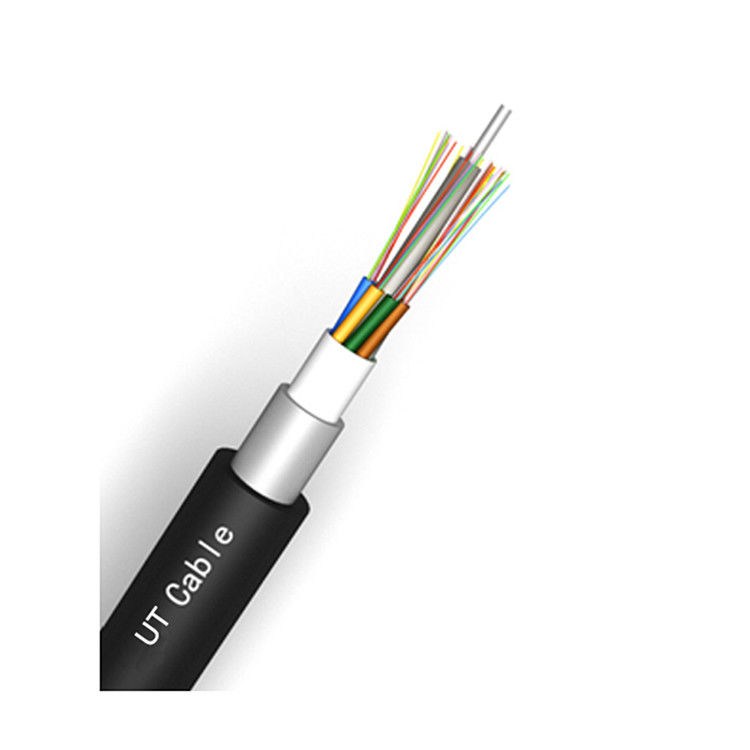

Outdoor GYTS Single Mode Armoured GYTS Fiber Optical Cable Underground Directly Buried Moisture Proof

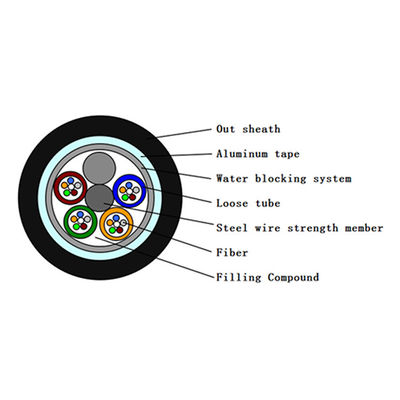

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.

GYTS optical cable structure is to put 9 / 125 μ m single-mode optical fiber or 50 / 125 μ m, 62.5/125 μ m multimode optical fiber (silica) into the loose tube made of high water blocking material, and the loose tube is filled with water blocking compound material. The center of the cable core is a metal reinforced core. For the multi-core optical cable, the reinforced core needs a PE jacket. The loose tube and filling rope are twisted with each other around the center reinforcing core, and the cable core is compact and round. The gap in the cable core is filled with water blocking filler. The double-sided corrugated steel strip (PSP) is longitudinally wrapped and then extruded with polyethylene sheath to form cable.




  • Up to 144 fiber cores.
  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • Specially designed compact structure is good at preventing loose tubes from shrinking
  • Crush resistance and flexibility
  • PE sheath protects cable from ultraviolet radiation




  G.652 G.655 50/125μm 62.5/125μm




@850nm     ≤3.0 dB/km ≤3.0 dB/km
@1300nm     ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm     ≥500 MHz·km ≥200 MHz·km
@1300nm     ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm
Cable Type Fiber Count Tubes Fillers Cable Diameter mm Cable Weight kg/km Tensile Strength Long/Short Term N
GYTS-2~6 2~6 1 4 10.2 116 600/1500
GYTS-8~12 8~12 2 3 10.2 116 600/1500
GYTS-14~18 14~18 3 2 10.2 116 600/1500
GYTS-20~24 20~24 4 1 10.2 116 600/1500
GYTS-26~30 26~30 5 0 10.2 116 600/1500
GYTS-32~36 32~36 6 0 10.6 129 1000/3000
GYTS-38~48 38~48 4 1 11.2 141 1000/3000
GYTS-50~60 50~60 5 0 11.2 141 1000/3000
GYTS-62~72 62~72 6 0 12.0 159 1000/3000
GYTS-74~84 74~84 7 1 13.6 209 1000/3000
GYTS-86~96 86~96 8 0 13.6 209 1000/3000
GYTS-98~108 98~108 9 1 15.4 232 1000/3000
GYTS-110~120 110~120 10 0 15.4 232 1000/3000
GYTS-122~132 122~132 11 1 17.2 280 1000/3000
GYTS-134~144 134~144 12 0 17.2 280 1000/3000


Detailed Images

GYTS FTTB Fiber Optic Cable 0GYTS FTTB Fiber Optic Cable 1


Q: Are you a manufacturer or a trading company?

A: We are a professional cable manufacturer with 30 years of production experience


Q: What are our payment terms?

A: Our payment terms are usually T / T 30% of the prepayment, ie the balance before pickup or the sight letter of credit.


Q. What is the delivery time?

A: The delivery time is usually 5-30 days. If the order quantity is large, the delivery time needs to be negotiated again.


Q: Can we provide customers with free samples?

Of course, we provide free samples for customers to check.


Q: Does your price include customs clearance at the destination, import tax, installation services?

A: Sorry, we currently only provide cables and provide transportation services in China. Both parties should re-quote and negotiate other services.


Q: What is your quality guarantee and deadline?

A: Each product will be inspected by professional testing equipment, and the product will be out of the warehouse after it is qualified. Usually, the warranty period is 18 months after delivery and 12 months after installation (whichever is earlier).
