Product Details:
|
| Application: | FTTH FTTB FTTX Network | Product Name: | Fiber Optic Cable GYXTC8Y |
|---|---|---|---|
| Fiber Brand: | Corning/Yofc/LS | Fiber Options: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
| Strength Member: | 7*0.9mm Steel Wire | Length: | 1km/roll/2km/roll |
| Package: | Wooden / Plywood Reel | Keywords: | GYXTC8Y |
| Armored: | Steel Tube+stainless Braided | Jacket: | HDPE |
| High Light: | ITU figure 8 fiber optic cable,2km figure 8 fiber optic cable,2km single mode fiber types |
||

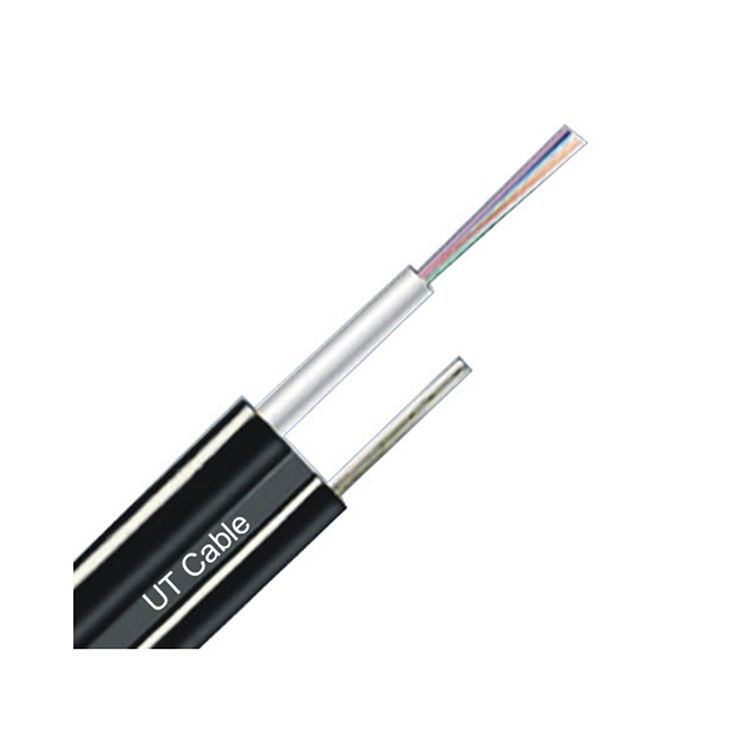

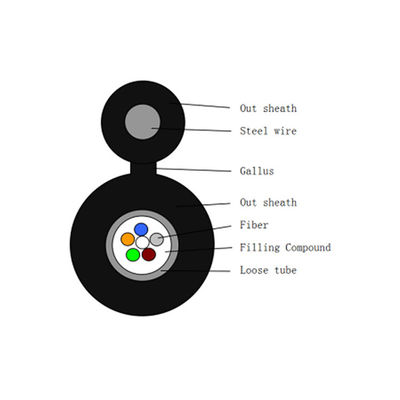

UT-King's GYXTC8Y cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. After longitudinally wrapping the outer layer of the loose tube with a water blocking strip, the steel wire is integrated into an 8-shaped polyethylene sheath to form a cable.
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm | |
|
Attenuation (+20℃)
|
@850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500MHz·km | ≥200MHz·km | ||
| @1300nm | ≥1000MHz·km | ≥600MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λ cc | ≤1260nm | ≤1480nm | |||
Q: Are you a manufacturer or a trading company?
A: We are a professional cable manufacturer with 30 years of production experience
Q: What are our payment terms?
A: Our payment terms are usually T / T 30% of the prepayment, ie the balance before pickup or the sight letter of credit.
Q. What is the delivery time?
A: The delivery time is usually 5-30 days. If the order quantity is large, the delivery time needs to be negotiated again.
Q: Can we provide customers with free samples?
Of course, we provide free samples for customers to check.
Q: Does your price include customs clearance at the destination, import tax, installation services?
A: Sorry, we currently only provide cables and provide transportation services in China. Both parties should re-quote and negotiate other services.
Q: What is your quality guarantee and deadline?
A: Each product will be inspected by professional testing equipment, and the product will be out of the warehouse after it is qualified. Usually, the warranty period is 18 months after delivery and 12 months after installation (whichever is earlier).
