Product Details:
|
| Application: | FTTH | Color: | Black/White |
|---|---|---|---|
| Connector: | SC/LC/FC | Product Name: | Waterproof Fiber Pigtails |
| Polishing: | PC / APC | Length: | 1m/3m/5m/10m Customized |
| No. Of Fiber: | 1/2/4 | Multi Mode Type: | OM1/OM2/OM3/OM4 |
| Single Mode Type: | G657A1/G657A2 | Cable Diameter: | 2*3mm |
| Cable Jacket: | LSZH | Strength Member: | Two Parallel Steel Wire/FRP/KFRP |
| High Light: | 10m FRP Fiber Optic Patch Cord,UPC FTTH Fiber Optic Patch Cord,FRP UPC ftth patch cord |
||

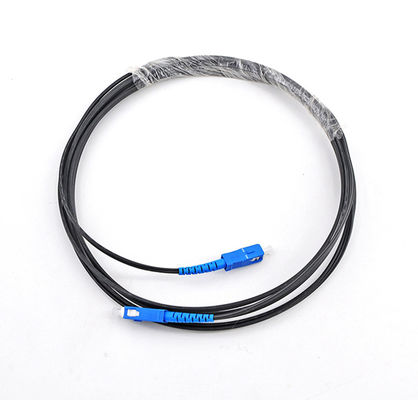

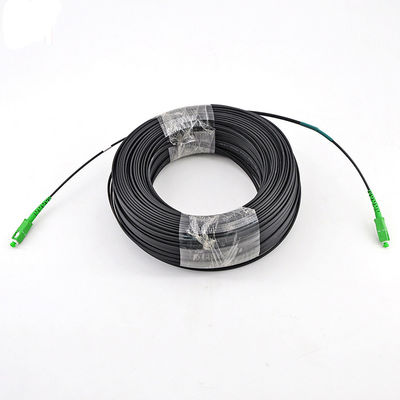

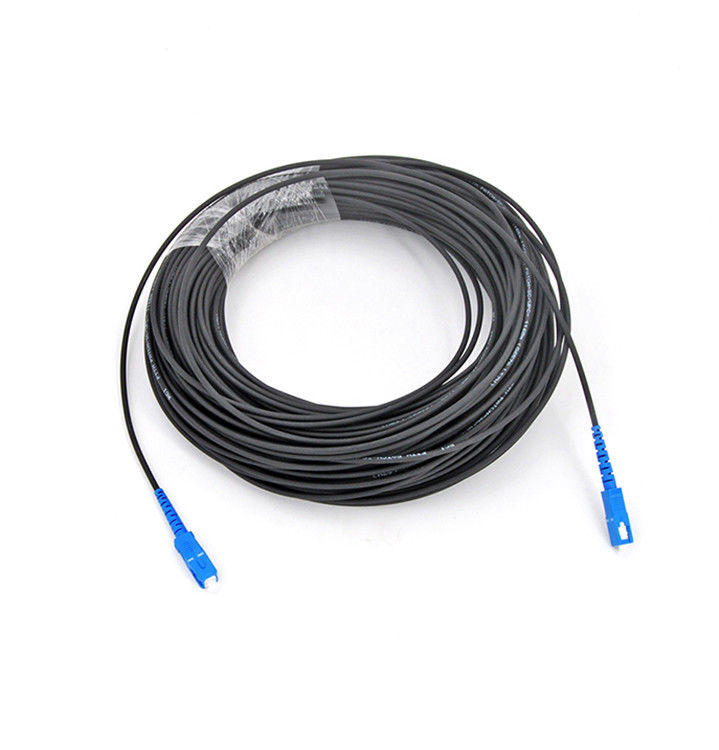

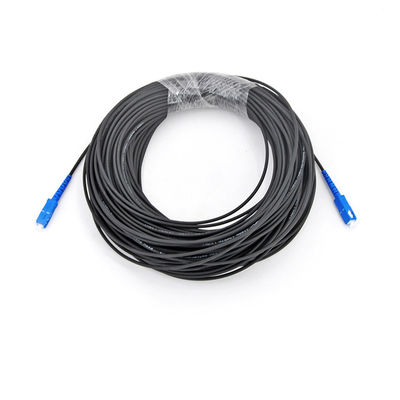

Our FTTH Fiber Drop Cable are designed to connect the fiber access point (hand hole, pedestal or aerial) to the ONT on the home in an FTTH network.
Recognizing that no two networks are alike, Clearfield developed a wide choice of fiber drop cable solutions…giving you the flexibility of configuration that best suits your network environment, network design and fiber drop cable needs. Utilizing factory-terminated connectors, the fiber drop cable provides plug-and-play connectivity. When the assembly is equipped with a FieldShield FlexConnector, gone are the days of proprietary connections. The FlexConnector allows multiple size and type of last mile fiber drop cables to interconnect.
| Specification | Description |
|---|---|
| Core Size and Type | Singlemode |
| Fiber Count | 1-fiber and 2-fiber |
| Jacket O.D. | 2.0 mm, 3.0 mm ruggedized |
| Cable Types | Flat Drop Cable (Dielectric/Toneable) |
| Connector Types | SC/UPC, SC/APC, LC/UPC, LC/APC, HFOC/APC |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Breakout Length | Half meter, custom |
| Connector Type | Ferrule Material | Polish Type | Ins. Loss Typical | Max Ins. Loss | Min. Ret. Loss |
|---|---|---|---|---|---|
| ST | Ceramic | UPC | 0.15 dB | 0.30 dB | 55.00 dB |
| SC | Ceramic | UPC | 0.15 dB | 0.30 dB | 55.00 dB |
| FC | Ceramic | UPC | 0.15 dB | 0.30 dB | 55.00 dB |
| LC | Ceramic | UPC | 0.15 dB | 0.30 dB | 55.00 dB |
| SC | Ceramic | APC | 0.20 dB | 0.30 dB | 65.00 dB |
| FC | Ceramic | APC | 0.20 dB | 0.30 dB | 65.00 dB |
| LC | Ceramic | APC | 0.20 dB | 0.30 dB | 65.00 dB |
Q. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
