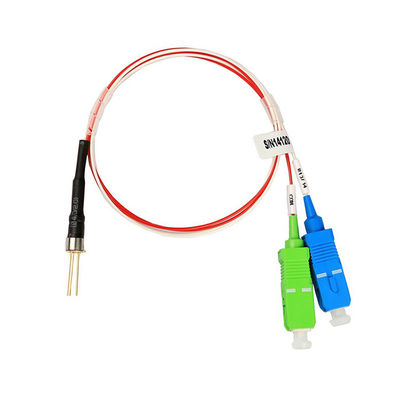

Large Image :  PWDM Ftth Wdm Optical Receiver

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: PWDM
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

PWDM Ftth Wdm Optical Receiver

Description
Application: FTTH Function: PWDM
Product Name: Fiber Optic PWDM Connector: SC/FC/LC
Wavelength: 1310nm/1490nm/1550nm Fiber Type: 0.9mm
Material: Stainless Steel Keywords: Optical Fiber Collimator
Channel: 2
High Light:

PWDM ftth wdm optical receiver

,

1550nm ftth wdm optical receiver

,

PWDM single mode single fiber

PWDM Bosa Module For CATV Receiver 1310nm 1490nm 1550nm Filter FWDM Module Optical Receiver FTTH PWDM




Description

UT-King’s PWDM is used for packaging of optical module. It can realize the multiplexing of two communication signal, which expands the capacity of single fiber and achieves bi-directional communication. It is widely used in optical network upgrade and expansion, or introduce new comprehensive business (CATV, TELECOM, integration of three networks-PON+EOC) etc.



Features

  • Low insertion loss
  • Wide band
  • high channel isolation
  • High stability and reliability
  • Epoxy-free optical path



Specification

Type Fiberer-PWDM

Operating wavelength

T transmission wavelength

R reflection wavelength

nm T-1530~1620 R-1310/1550 & 1490/1310
T1550 R1310/1490
T1490 R1310/1550
Transmission insertion loss dB

0.80

0.20

0.30

0.10

0.20

0.30

Reflection insertion loss dB 0.60
Transmission channel isolation dB 30
Reflection channel isolation dB

17



PDL dB

0.1

0.05

0.05

0.05

0.10

Wavelength thermal stability nm/ 0.003
Insertion loss thermal stability dB/ 0.005
Directivity dB 55
Return loss dB 45
Operating temperature

-20~+70



Storage temperature   -40~+85
Note:Customization is available.





























Ordering Information:

A B C D E
Wavelength Tube Type Fiber Length
(Include connector)
Connector Dimension
T15R13/14=T1550 R1310/1490
T14R13/15=T1490 R1310/1550
T13R14/15=T1310 R1490/1550
T1310=T1310±7.5
X=Others
25=250um
90=900um
X=Others
05=0.5m±0.05m
10=1.0m±0.05m
15=1.5m±0.05m
X=Others
OO:None
FP=FC/PC
FA=FC/APC
SP= SC/PC
SA=SC/APC
STP=ST/PC
STA=ST/APC
LP=LC/PC
LA= LC/APC
X=Others
3214=Φ3.2×14mm
X=Others




Detailed Images

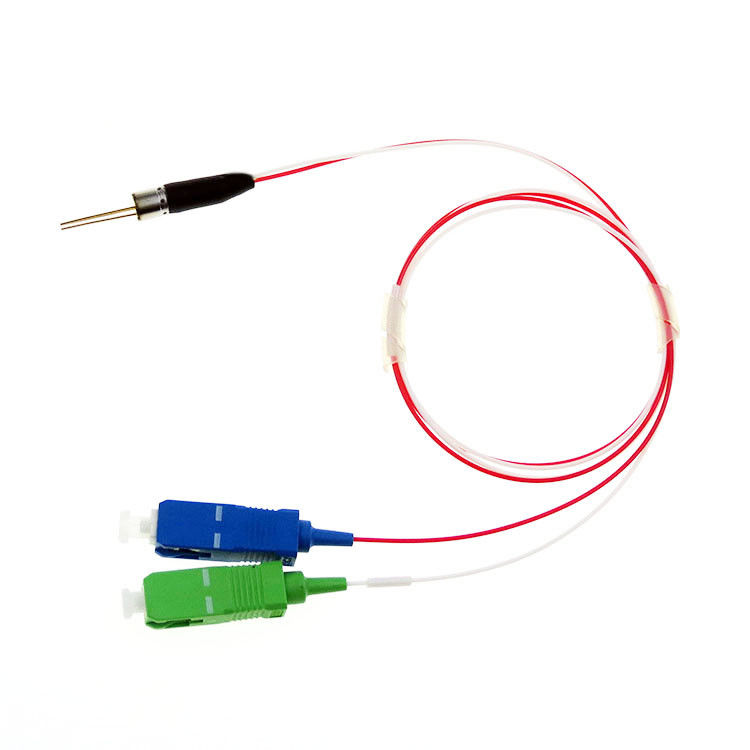

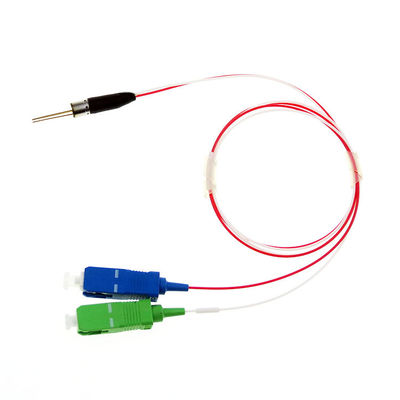

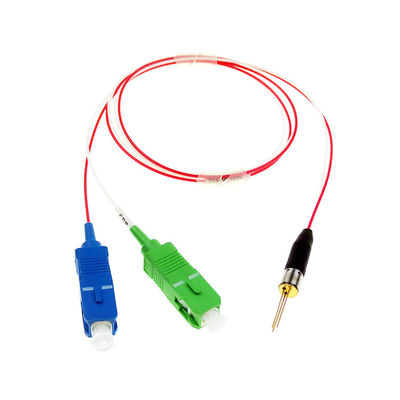

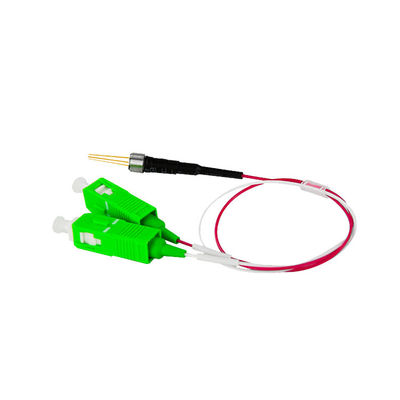

PWDM Ftth Wdm Optical Receiver 0PWDM Ftth Wdm Optical Receiver 1PWDM Ftth Wdm Optical Receiver 2PWDM Ftth Wdm Optical Receiver 3

FAQ

Q: What does pWDM stand for?

A: PWDM stands for "Passive Wavelength-Division Multiplexing.



Q: How to abbreviate "Passive Wavelength-Division Multiplexing"?

A: Passive Wavelength-Division Multiplexing" can be abbreviated as PWDM.



Q: What is the meaning of pWDM abbreviation?

A: The meaning of pWDM abbreviation is "Passive Wavelength-Division Multiplexing".



Q: What is pWDM abbreviation?

A: One of the definitions of pWDM is "Passive Wavelength-Division Multiplexing".



Q: What does pWDM mean?

A: PWDM as abbreviation means "Passive Wavelength-Division Multiplexing".



Q: What is shorthand of Passive Wavelength-Division Multiplexing?

A: The most common shorthand of "Passive Wavelength-Division Multiplexing" is PWDM.
