Aluminum SC Duplex Din Rail Terminal Box Ftth 45.3 Mm 6 Core

Aluminum SC Duplex Din Rail Terminal Box Ftth 45.3 Mm 6 Core
Aluminum SC Duplex Din Rail Terminal Box Ftth 45.3 Mm 6 Core Aluminum SC Duplex Din Rail Terminal Box Ftth 45.3 Mm 6 Core Aluminum SC Duplex Din Rail Terminal Box Ftth 45.3 Mm 6 Core Aluminum SC Duplex Din Rail Terminal Box Ftth 45.3 Mm 6 Core

Large Image :  Aluminum SC Duplex Din Rail Terminal Box Ftth 45.3 Mm 6 Core

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: DIN-S06
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

Aluminum SC Duplex Din Rail Terminal Box Ftth 45.3 Mm 6 Core

Description
Application: FTTH Terminal Box Color: Grey
Material: Aluminum Product Name: DIN Termination Box
Type: DIN Rail Mounting Number Of Cable Entry Points: 2
Number Of Splice Trays: 1 Size: 130x140.5x45.3 Mm
Fiber Core Capacity: 6 (single Core)
High Light:

FTTH Duplex din rail terminal box

,

45.3 mm din rail terminal box

,

45.3 mm ftth terminal box

Aluminum Material FTTH Fiber Opti 6 Core DIN Rail Terminal Box Fibra Optica Terminal Box

Description

UT-King’s DIN Rail Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. All of the Din Rail Boxes can be fully populated.

Features

  • Aluminum, electrostatic painting.
  • Suitalbe for different adapters: FC, SC, ST, LC …
  • 2pcs cable entry/exit ports;
  • 6pcs pigtail entry/exit ports
  • Splicing module of 6 fibers inside
  • Max. 6pcs adapters can be loaded

Specification

Type UT-DIN-SC06
Color Gray
Material Aluminum
Mounting DIN Rail mounting
Number of cable entry points 2
Number of Splice Trays 1
Weight 0.5kg
Size 130x140.5x45.3 mm
Adapter type SC Simplex,SC Duplex,LC,FC,ST
Fiber core capacity 6 (single core)
Package Dimension 540*430*350mm
Gross Weight 13.5kg
Qty in Carton 30pcs

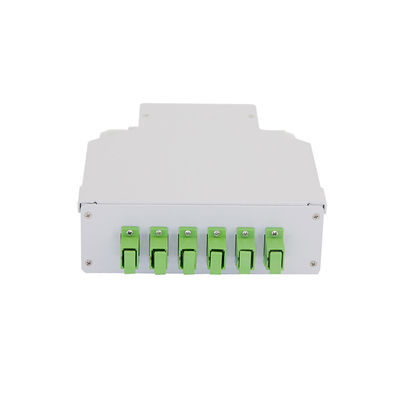

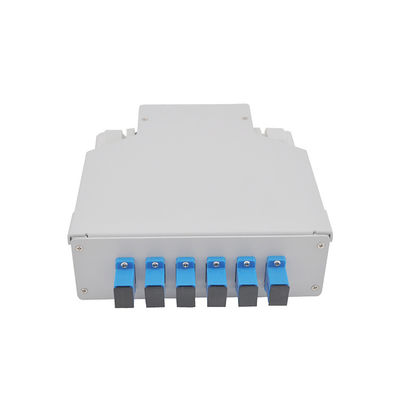

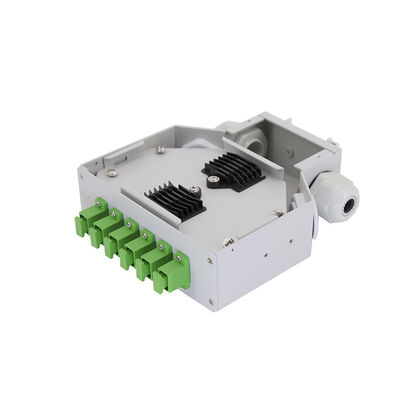

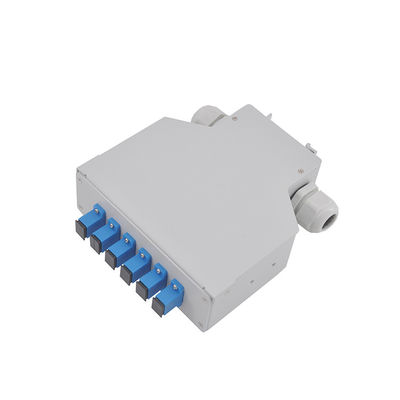

Detail Image

Aluminum SC Duplex Din Rail Terminal Box Ftth 45.3 Mm 6 Core 0Aluminum SC Duplex Din Rail Terminal Box Ftth 45.3 Mm 6 Core 1Aluminum SC Duplex Din Rail Terminal Box Ftth 45.3 Mm 6 Core 2Aluminum SC Duplex Din Rail Terminal Box Ftth 45.3 Mm 6 Core 3
