Product Details:
|
| Application: | Fiber Termination Box | Color: | White |
|---|---|---|---|
| Material: | PC+ABS | Product Name: | Fiber Access Terminal Box |
| Type: | Wall And Pole Mountable | Cable Diameter: | 15mm |
| Name: | Terminal Box Fiber Optic | Ports: | 16 Ports |
| Ip Grade: | IP65 | Size: | 287mm*172mm*102mm |
| Adaptor Type: | SC/APC /SC/UPC | Fiber Type: | NAP Box 16 Port |
| High Light: | 102mm SC Fiber Optic Terminal Box,PLC NAP Fiber Optic Terminal Box,PLC Splitter fiber access terminal box |
||

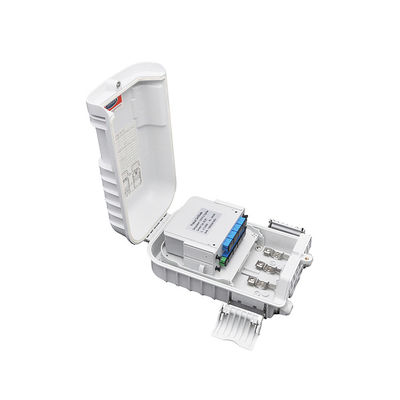

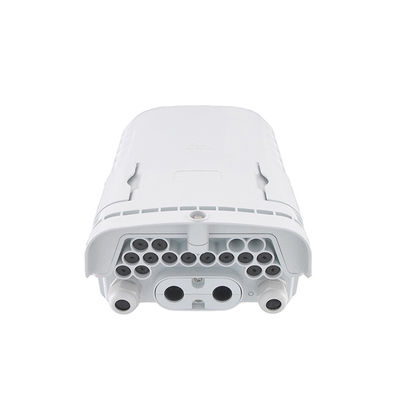

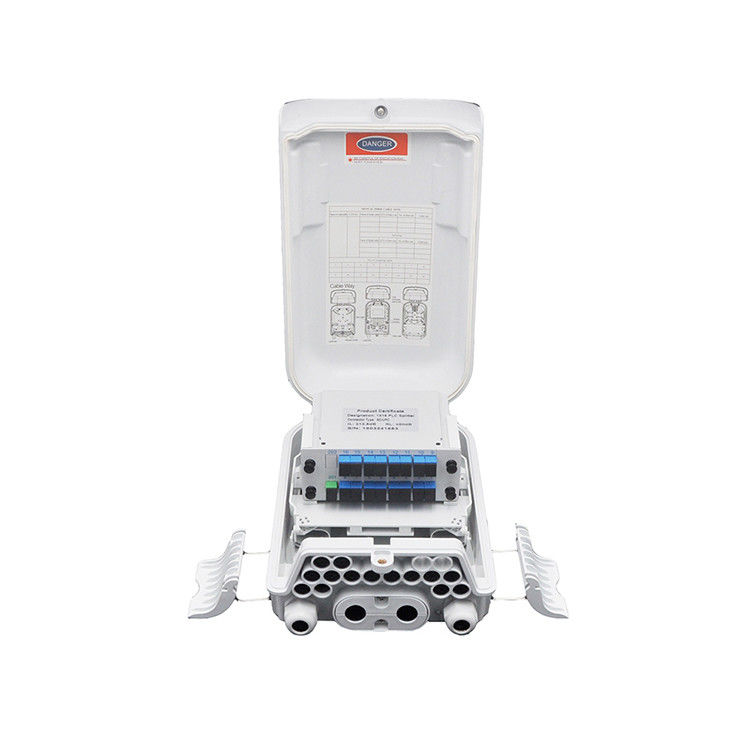

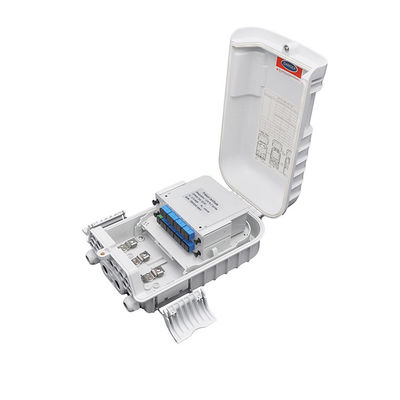

UT-King’s fiber access termination Box FATB416E fiber distribution NAP box is able to hold up to 16subscribers and 96splicing fiber.It is used as a splicing closure and a termination box for the feeder cable to connect with drop cable in FTTX network system.It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
| Model | UT- FATB416E |
| Size L*W*H(mm) | 287mm*172mm*102mm |
| Protection level | IP65 |
| Material | ABS+PC |
| Max splitting | 1:16 Mini PLC Splitter |
| Weight (kg) | 1.8 |
| Cable diameter(mm) | ≤ 15 |
| Cable inlet/outlet: | 4 / 16 |
| Fiber core capacity | 16 (single core) |
| Color | Grey/black |
| Weight | 1.15kg/pcs |
