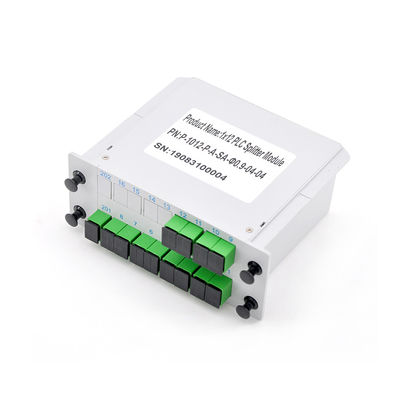

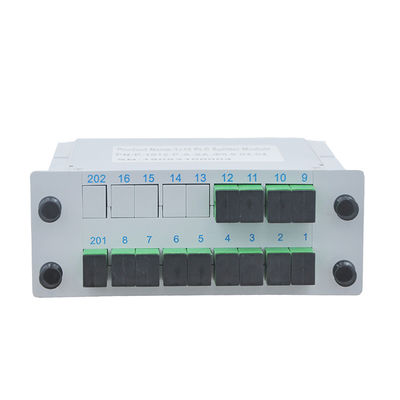

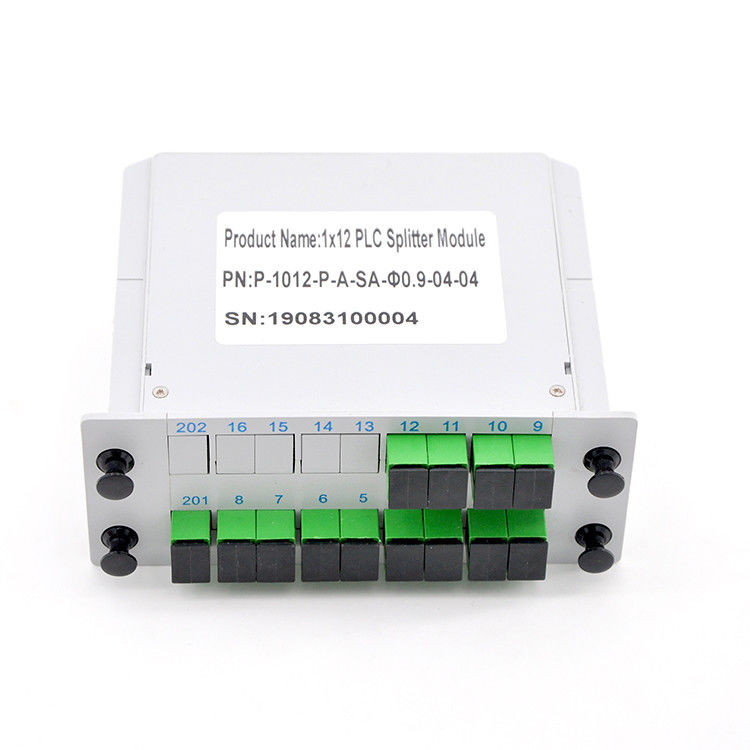

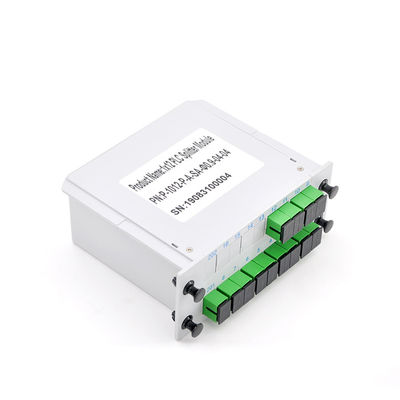

FTTH Equipment 1650nm Optical Cable Splitter Cord 1x12 PLC C112SA

FTTH Equipment 1650nm Optical Cable Splitter Cord 1x12 PLC C112SA
FTTH Equipment 1650nm Optical Cable Splitter Cord 1x12 PLC C112SA FTTH Equipment 1650nm Optical Cable Splitter Cord 1x12 PLC C112SA FTTH Equipment 1650nm Optical Cable Splitter Cord 1x12 PLC C112SA FTTH Equipment 1650nm Optical Cable Splitter Cord 1x12 PLC C112SA

Large Image :  FTTH Equipment 1650nm Optical Cable Splitter Cord 1x12 PLC C112SA

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE.ROSH,ISO9001
Model Number: PLC-C112SA
Payment & Shipping Terms:
Minimum Order Quantity: 2 PCS
Packaging Details: 1 pcs 1 Plastic boxes
Delivery Time: 3-5 workdays
Payment Terms: T/T, Western Union,Credit Card,
Supply Ability: 10000pcs/per week

FTTH Equipment 1650nm Optical Cable Splitter Cord 1x12 PLC C112SA

Description
Product Name: PLC Splitter Type: PLC Splitter 1x12
Application: FTTH FTTX Solution Fiber Type: G657A1
Connector Type: SC/UPC Wavelength: 1260-1650nm
Fiber Length: 1m,1.5m Or Customized Item: GPON Spliter
Insertion Loss: ≤12.8dB Model: SM/MM
Splitter Ratio: 1*12 Keywords: Cassette PLC Splitter
High Light:

1650nm optical cable splitter

,

1x12 optical cable splitter

,

1650nm optical cord splitter

FTTH Equipment 1x12 PLC Splitter Optical Fiber With SC/APC Connector Fiber Optic Cable Splitter 1*12

Description

UT-King' s Planar Lightwave Circuit (PLC) Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Oxin provides whole series of 1xN splitter and 2xN splitter products that are tailored for specific applications.

Cassette Care Insertion type PLC splitter are most commonly used in the PON networks. They provide complete protection for inner optical components and cable, and are designed for convenient and reliable installations

Features

  • Low Insertion loss
  • Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: From 1260nm to 1650nm
  • Wide Operating Temperature: From -40°C to 85°C
  • High Reliability and Stability

Certification and Compliance:

  • YD/T1117-2001
  • Telcordia GR-1221-CORE-1999
  • Telcordia GR-1209-CORE-2001

Application



  • Can be used for FTTX Systems
  • Passive Optical Networks (PON)
  • CATV TV Networks (CATV)
  • Optical Signal Distribution



Specification

Item

1x2

1x3

1x4

1x6

1x8

1x12

Operating Wavelength(nm)

1260-1650

Fiber Type

G657A1 or as customers' order

Connector

SC/FC/LC

Ferrule section

UPC/APC

Insertion loss(dB)

≤4.1

≤6.4

≤7.4

≤9.3

≤10.5

≤12.8

Loss uniformity(dB)

≤0.4

≤0.4

≤0.6

≤1.6

≤0.8

≤1.2

Return Loss(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Polarization Dependent Loss(dB)

≤0.2

≤0.2

≤0.2

≤0.2

≤0.2

≤0.25

Directivity(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Temperature correlation loss

-4085(dB)

≤0.5

≤0.5

≤0.5

≤1.5

≤0.5

≤0.5

Size(mm)(LxWxH)

40×4×4

60×7×4

Working Temperature()

-4085

Storage Temperature(℃)

-4085

Item

1x16

1x24

1x32

1x48

1x64

1x128

Operating Wavelength(nm)

1260-1650

Connector

SC/FC/LC

Ferrule section

UPC/APC

Fiber Type

G657A1 or as customers' order

Insertion loss(dB)

≤13.8

≤15.8

≤16.8

≤18.7

≤20.5

≤24.1

Loss uniformity(dB)

≤1.2

≤1.5

≤1.5

≤2.0

≤2.0

≤2.5

Return Loss(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Polarization Dependent Loss(dB)

≤0.25

≤0.3

≤0.3

≤0.4

≤0.4

≤0.4

Directivity(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Temperature correlation loss

-4085(dB)

≤0.5

≤0.5

≤0.5

≤1.5

≤0.5

≤0.5

Size(mm)(LxWxH)

60×7×4

60×12×6

N/A

Working Temperature()

-4085

Storage Temperature(℃)

-4085

Item

2x2

2x4

2x8

2x16

2x32

2x64

2x128

Operating Wavelength(nm)

1260-1650

Fiber Type

G657A1 or as customers' order

Connector

SC/FC/LC

Ferrule section

UPC/APC

Insertion loss(dB)

≤4.5

≤7.9

≤10.8

≤14.1

≤17.3

≤21.1

≤24.8

Loss uniformity(dB)

≤0.9

≤1.1

≤1.2

≤1.5

≤1.8

≤2.2

≤2.5

Return Loss(dB)

≥55

≥55

≥55

≥55

≥55

≥55

≥55

Polarization Dependent Loss(dB)

≤0.2

≤0.2

≤0.3

≤0.3

≤0.4

≤0.4

≤0.4

Directivity(dB)

≥55

≥55

≥55

≥55

≥55

≥55

≥55

Temperature correlation loss

-4085(dB)

≤0.5

≤0.5

≤0.5

≤1.5

≤0.5

≤0.5

≤0.5

Size(mm)(LxWxH)

50×4×4

60×7×4

N/A

Working Temperature()

-4085

Storage Temperature(℃)

-4085
