Outdoor 85mm Fiber Optic Splitter Box Plc Two Tier In 2 Out 16

Outdoor 85mm Fiber Optic Splitter Box Plc Two Tier In 2 Out 16
Outdoor 85mm Fiber Optic Splitter Box Plc Two Tier In 2 Out 16 Outdoor 85mm Fiber Optic Splitter Box Plc Two Tier In 2 Out 16 Outdoor 85mm Fiber Optic Splitter Box Plc Two Tier In 2 Out 16 Outdoor 85mm Fiber Optic Splitter Box Plc Two Tier In 2 Out 16

Large Image :  Outdoor 85mm Fiber Optic Splitter Box Plc Two Tier In 2 Out 16

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: FDB216A
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: 1pcs/box 10pcs/carton
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/week

Outdoor 85mm Fiber Optic Splitter Box Plc Two Tier In 2 Out 16

Description
Product Name: Fiber Optic Distribution Box Material: 70%PC+30%ABS
Color: White/black Cable Prot: 2 In 16 Out
Dimension: 295mm*220mm*85mm Assemmbling Method: Pole Or Wall-mounting
Protection Level: IP65 Keywords: Fiber Optic Distribution Box
Number Of Packing: 10 Pcs/ctn
High Light:

85mm fiber optic splitter box

,

two tier fiber optic splitter box

,

two tier plc splitter box

Outdoor Fiber Optical Splitter Box Wall Mount Fiber Distribution Box 16 Core Splitter Box



Description

UT-King’s fiber distribution box (FDB) is normally located at the user access point to connect distribution cables and drop cables. In FTTx network, It works with the optical splitter to split optical fibers. to protect optical fiber splicing points, distribute and schedule optical fiber routings. FDB are often outdoor type.

UT-King's Fiber distribution box Type outdoor Optical Distribution Boxes is designed to connect feeder/distribution cable to subscriber's drop cable using PLC splitter in FTTx networks. It has 2 input ports and 16 output ports on the bottom and it is easy to install on the wall or pole. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.

Features

  •  Be made of high impact plastic PC/ABS
  • Can accommodate 1x8 PLC splitter and 1x16 PLC splitter
  • The high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain
  • Up to 16 FTTH drops ,2 inlet ports, 32 outlet ports
  • Wall and pole mountable
  • The design of the two-tier structure, the upper wiring layer optical splitter, lower for fiber splicing layer.



Specification

Model UT-FDB216C
Dimension 320mm*260mm*95mm
Color White,Black or customized
Material 70%PC+30%ABS
Max ratio 1:16
Cable entry ports In 2 Out 16
Assemmbling method pole, wall-mounting
Protection level IP65
Outter carton size 560*530*340mm
number of Packing 10 pcs/ctn
weight 14kg /ctn

Detail Images

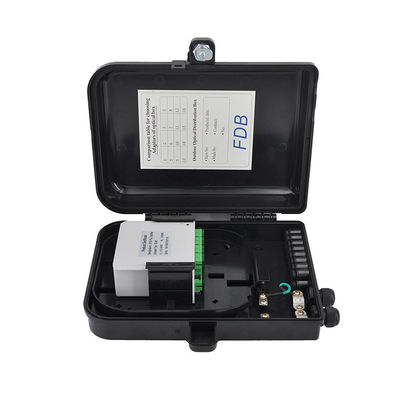

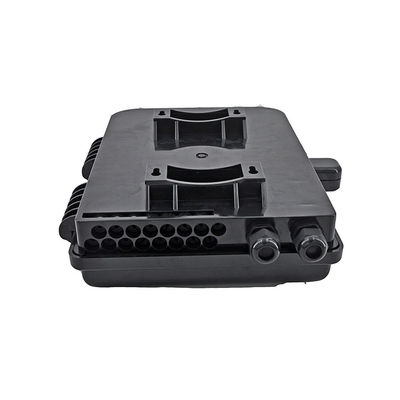

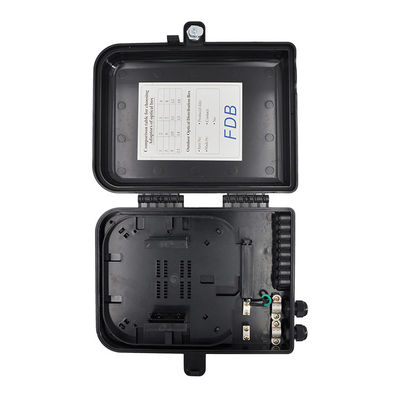

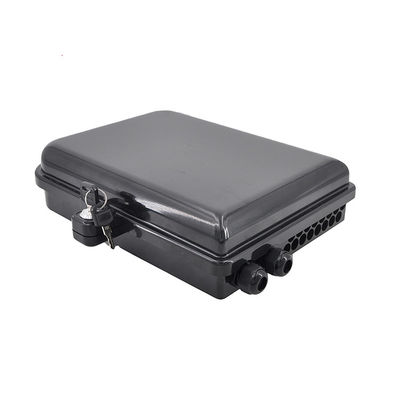

Outdoor 85mm Fiber Optic Splitter Box Plc Two Tier In 2 Out 16 0Outdoor 85mm Fiber Optic Splitter Box Plc Two Tier In 2 Out 16 1Outdoor 85mm Fiber Optic Splitter Box Plc Two Tier In 2 Out 16 2Outdoor 85mm Fiber Optic Splitter Box Plc Two Tier In 2 Out 16 3

Installation:

1.Wall-mounted installation

Drill 4 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.(Pic 6)

2.Pole-mounted installation

Fix 1 set of the easy pole ring to the telecom pole .



16 Core Outdoor Fiber Optic Distribution Cabinet Black PC ABS PE Fiber Splicing 1*16 1

Accessories

1. Users' Manual*1.

2. Key*1.

3. Accessories Bag * 1

5. Easy pole ring*2,M6*20mm Bolt*2(Option)
