RAL 7035 Fiber Optic Distribution Box Splitter 150mm Mulit Function

RAL 7035 Fiber Optic Distribution Box Splitter 150mm Mulit Function
RAL 7035 Fiber Optic Distribution Box Splitter 150mm Mulit Function RAL 7035 Fiber Optic Distribution Box Splitter 150mm Mulit Function RAL 7035 Fiber Optic Distribution Box Splitter 150mm Mulit Function RAL 7035 Fiber Optic Distribution Box Splitter 150mm Mulit Function

Large Image :  RAL 7035 Fiber Optic Distribution Box Splitter 150mm Mulit Function

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: FDB448B
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: 1pcs/box 10pcs/carton
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/week

RAL 7035 Fiber Optic Distribution Box Splitter 150mm Mulit Function

Description
Product Name: Fiber Optic Distribution Box Material: 70%PC+30%ABS
Color: Gray RAL 7035 Cable Prot: 4 In 48 Out
Dimension: 450mmx180mmx150mm Assemmbling Method: Wall-mounting
Keywords: Fiber Optic Distribution Box Number Of Packing: 6pcs/ctn
High Light:

RAL 7035 Fiber Optic Distribution Box

,

150mm Fiber Optic Distribution Box

,

150mm fiber splitter distribution box

UT-King Mulit-Function Fiber Distribution Cabinet Box 48 Core Wall Mount Indoor Multi-Operator Terminal Box





Description

UT-King’s  Multi-Operator cabinet is a grouping module for fusion, coupling and connection of up to 48 fibers.

It is a junction box and connection that is used in FTTH networks inside buildings as an optical interconnection point between the optical cables of the power supply or distribution networks of the operators and the distribution network of the building (vertical).



Its modular design allows it to be used in independent modules either as a module for terminating the operator's network and housing optical dividers or as an optical interconnection module with the vertical network of the building, allowing the parking of fiber termination connectors in the panel itself. Directly provide the discharges to the homes of customers.



The boxes are installed bolted directly to the wall in common areas of the building: garages, communications rooms, interior rooms, etc





Application

1. FTTH, FTTB, FTTC

2. Telecommunication Network

3. CATV

4. Local Area Network





Features

  • Multi-operator cabinet with six trays and capacity for 48 fibers.
  • l Allow the connection between multiple operators and clients, allows the connection through panels or directly by splices.
  • l The flexible side entrance that allows to stack several boxes and an oval entrance that facilitates the bleeding of the cable. Fire resistant that allows splicing, patching, dividing or storing optical fibers, equipped with an 8mm male triangular closing wrench.
  • l It has a central area to organize the fibers which is protected with a main door.
  • l It has compartments separated by a distribution panel of up to 48 optical fibers and allows the installation of the cables by means of fusion or direct connection.
  • l Possibility of scalability according to the number of operators that address the building
  • l Standardized dimensions, according to the recommendations of TELEFÓNICA, approved for the main operators.





Specification

Model UT-FDB448B
Dimension 450mmx180mmx150mm
Color Gray
Material 70%PC+30%ABS
Max ratio 48 Cores
Cable entry ports 4
Diameter of Cable Φ16mm
Adapter Plate Capacity 48 SC Simplex
number of Packing 6pcs/ctn
weight 3.5kg /pcs

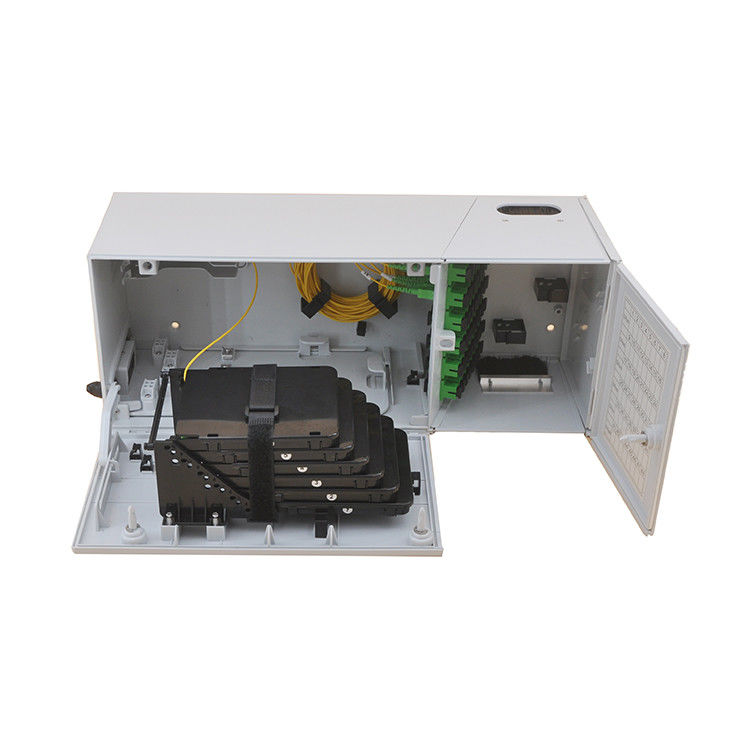

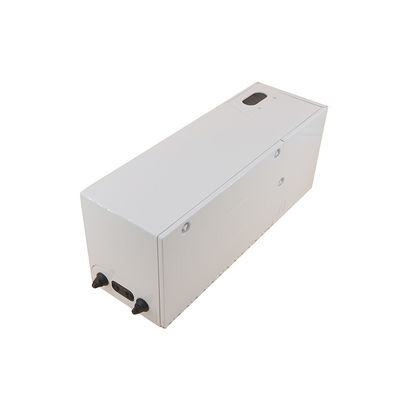

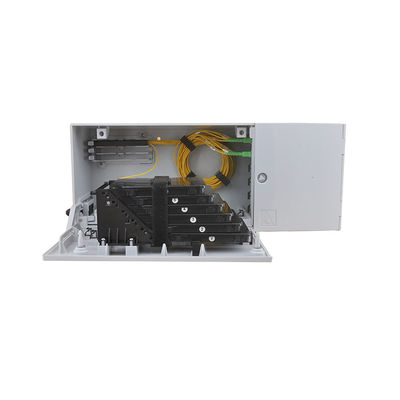

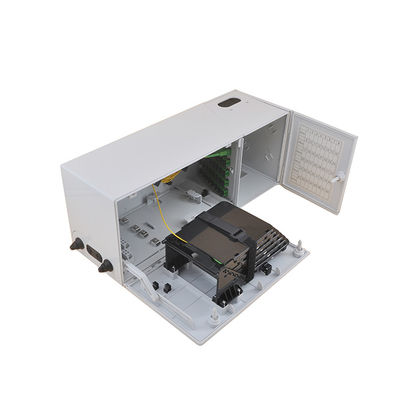

Detail Images

RAL 7035 Fiber Optic Distribution Box Splitter 150mm Mulit Function 0RAL 7035 Fiber Optic Distribution Box Splitter 150mm Mulit Function 1RAL 7035 Fiber Optic Distribution Box Splitter 150mm Mulit Function 2RAL 7035 Fiber Optic Distribution Box Splitter 150mm Mulit Function 3

FAQ

Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available


Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.



Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.



Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
