PP ODB Nap Fiber Optic Distribution Box 110mm 3 In 16 Out

PP ODB Nap Fiber Optic Distribution Box 110mm 3 In 16 Out
PP ODB Nap Fiber Optic Distribution Box 110mm 3 In 16 Out PP ODB Nap Fiber Optic Distribution Box 110mm 3 In 16 Out PP ODB Nap Fiber Optic Distribution Box 110mm 3 In 16 Out PP ODB Nap Fiber Optic Distribution Box 110mm 3 In 16 Out

Large Image :  PP ODB Nap Fiber Optic Distribution Box 110mm 3 In 16 Out

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: FDB316B
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: 1pcs/box 10pcs/carton
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/week

PP ODB Nap Fiber Optic Distribution Box 110mm 3 In 16 Out

Description
Product Name: Fiber Optic Distribution Box Material: PP+GF
Color: Black Cable Prot: 3 In 16 Out
Dimension: 285mm*175mm*110mm Assemmbling Method: Pole Or Wall-mounting
Protection Level: IP65 Keywords: Cable Distribution Box
Number Of Packing: 10 Pcs/ctn
High Light:

PP ODB Fiber Optic Distribution Box

,

110mm Fiber Optic Distribution Box

,

110mm nap box fiber

PP+GF Material Fiber Optical Waterproof Distribution Box 16 Core ODB NAP Cable Junction Box

Description

UT-King’s FDB316B is an IP68 rated enclosure manufactured from high quality PP+GF, it has a special feature of draining off water by using several drainage holes.

Features

  • 3 feeder cable ports +3 feeder cable ports(3 in+3 out)

  • Up to 24 heat shrink

  • 16 drop cable exit ports

  • Fiber storage and management in the splicing tray

  • IP68 rating

  • Support insertion type PLC and Mini PLC splitter

  • Robust design

  • Range of colors

Specification

Model UT-FDB316B
Dimension 285mm*175mm*110mm
Color Black
Capacity of FOSC Bunchy:24 cores
Max ratio 1:16
Cable entry ports In 3 Out 16
Diameter of Cable Φ16mm
Assemmbling method pole, wall-mounting
Protection level IP65
Outter carton size 600*400*320mm
number of Packing 10 pcs/ctn
weight 18kg /ctn

Detail Images

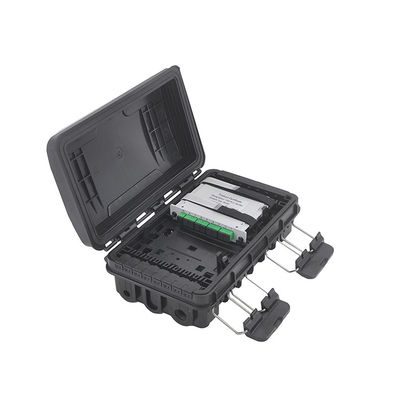

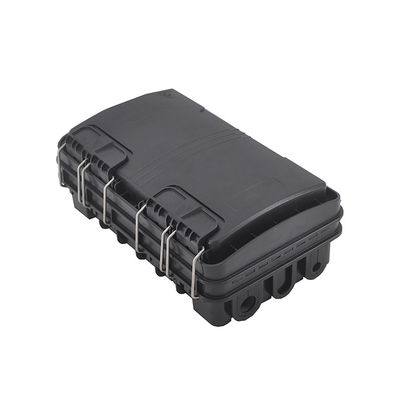

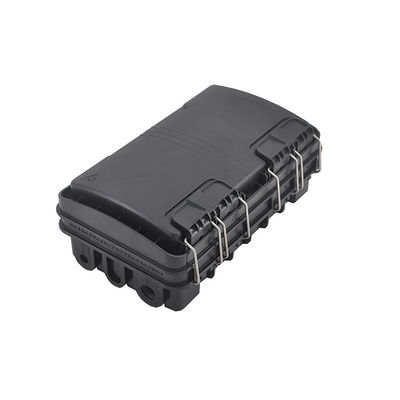

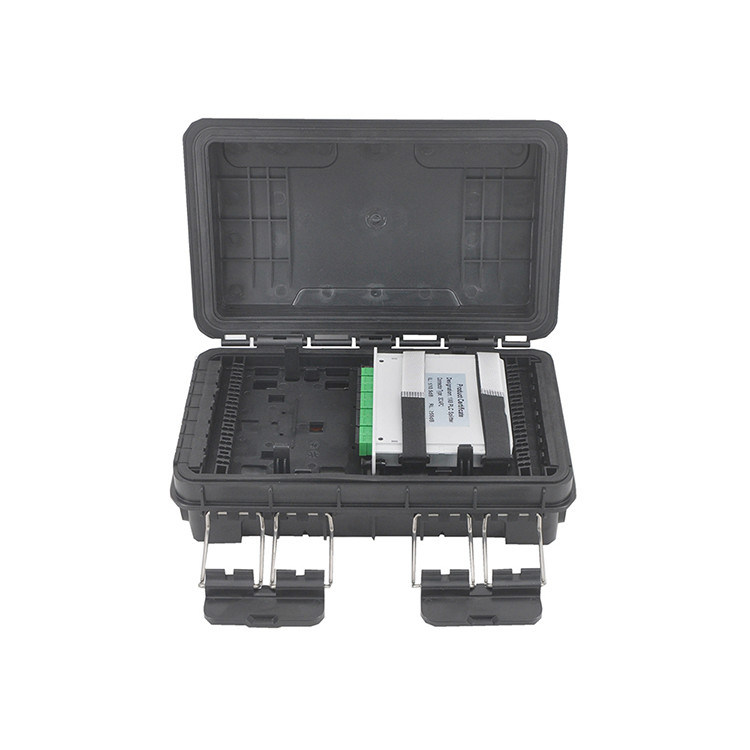

PP ODB Nap Fiber Optic Distribution Box 110mm 3 In 16 Out 0PP ODB Nap Fiber Optic Distribution Box 110mm 3 In 16 Out 1PP ODB Nap Fiber Optic Distribution Box 110mm 3 In 16 Out 2PP ODB Nap Fiber Optic Distribution Box 110mm 3 In 16 Out 3

Installation:

1.Wall-mounted installation

2.Pole-mounted installation
