Product Details:
|
| Product Name: | Fiber Optic Distribution Box | Material: | 70%PC+30%ABS |
|---|---|---|---|
| Color: | White/black | Cable Prot: | 1 In 4 Out |
| Dimension: | 210*135*40mm | Assemmbling Method: | Wall-mounting |
| Protection Level: | IP65 | Keywords: | Fiber Splice Distribution Box |
| Number Of Packing: | 10 Pcs/ctn | ||
| High Light: | FDB 104A Fiber Optic Distribution Box,40mm Fiber Optic Distribution Box,FDB 104A fiber splice box |
||

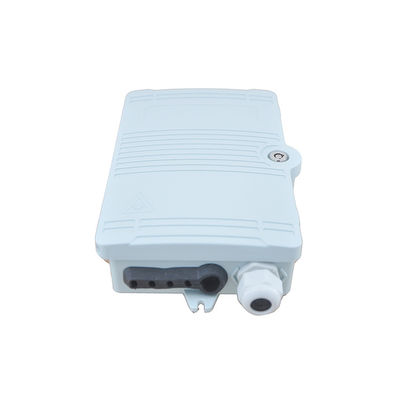

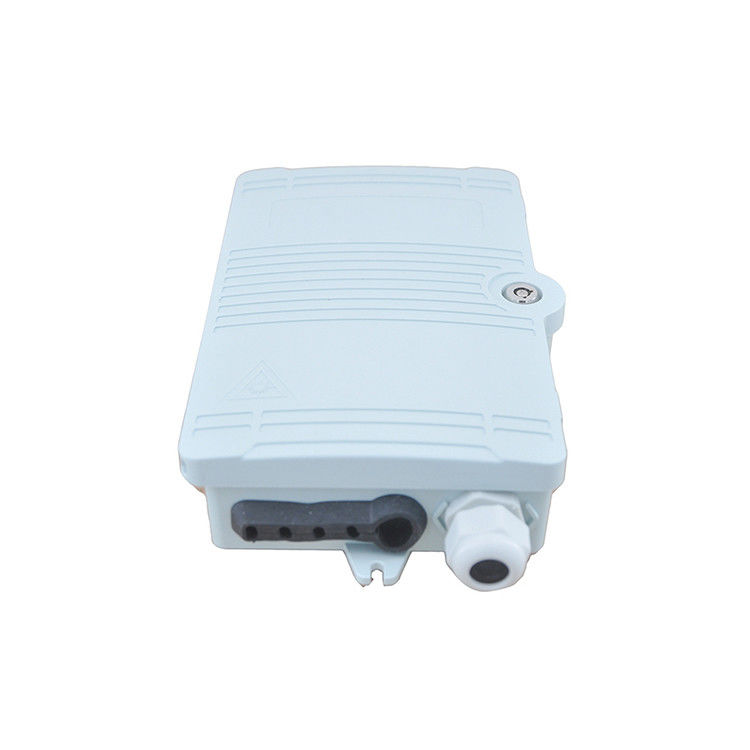

UT-King’s fiber distribution box (FDB) is normally located at the user access point to connect distribution cables and drop cables. In FTTx network, It works with the optical splitter to split optical fibers. to protect optical fiber splicing points, distribute and schedule optical fiber routings. FDB are often outdoor type.

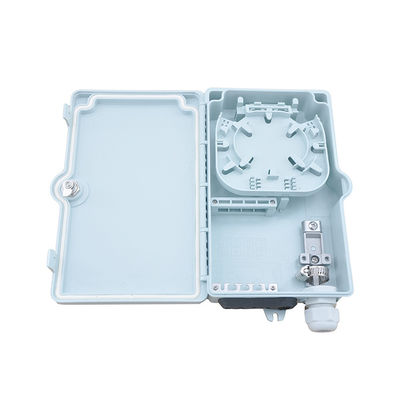

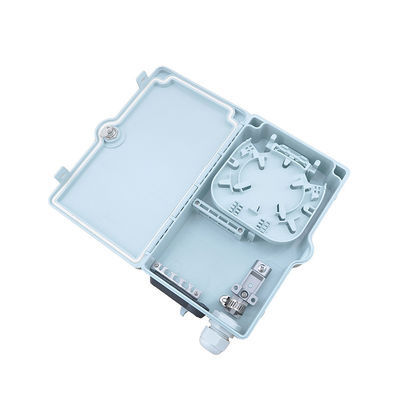

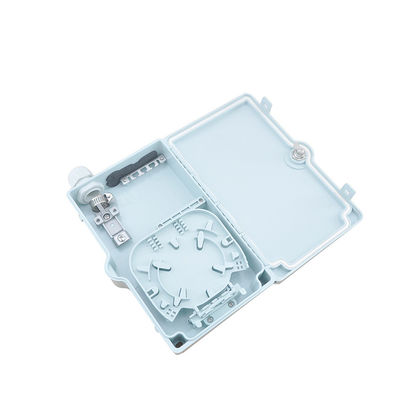

Design of double layer structure, the upper layer is the optical splitter wiring layer, the lower layer is the fiber fusion layer.
Easy to operate. Usually installed as wall mounted in the building or at the green belt.
The optical splitter module is designed of modular drawer type, and it has high interchangeability and generality.
SMC complex plastic or Cold rolled plate without material optional.
Fixed cable and protection.
Protect optical fiber splice joint.
Termination function of fiber core.
| Model | UT-FDB104A |
| Dimension | 210*135*40mm |
| Color | White,Black or customized |
| Material | 70%PC+30%ABS |
| Max ratio | 1:4 |
| Cable entry ports | In 1 Out 4 |
| Diameter of Cable | Φ10mm |
| Assemmbling method | wall-mounting |
| Protection level | IP65 |
Wall-mounted installation
