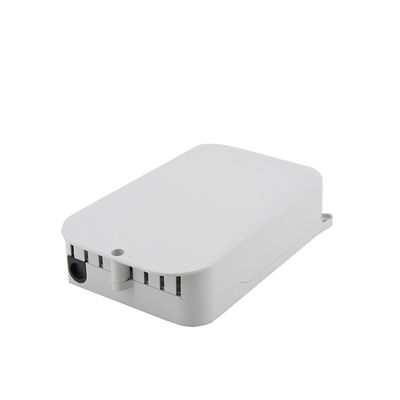

10mm IP65 Fiber Access Terminal Box Wall Mount 20Nm Black

10mm IP65 Fiber Access Terminal Box Wall Mount 20Nm Black
10mm IP65 Fiber Access Terminal Box Wall Mount 20Nm Black 10mm IP65 Fiber Access Terminal Box Wall Mount 20Nm Black 10mm IP65 Fiber Access Terminal Box Wall Mount 20Nm Black 10mm IP65 Fiber Access Terminal Box Wall Mount 20Nm Black

Large Image :  10mm IP65 Fiber Access Terminal Box Wall Mount 20Nm Black

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: FTAB216A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

10mm IP65 Fiber Access Terminal Box Wall Mount 20Nm Black

Description
Application: Fiber Access Terminal Box Color: White/Black
Material: ABS+PC Product Name: Fiber Access Terminal Box
Type: Wall And Pole Mountable Cable Diameter: 5mm-10mm
Name: Fiber Optic Cable Termination Box Ports: 16 Ports
Ip Grade: IP65 Size: 220X145X55mm
High Light:

10mm IP65 Fiber Access Terminal Box

,

20Nm Fiber Access Terminal Box

,

20Nm wall mount fiber box

Indoor FTTH Fiber Optic Cable Termination Box 16 Core Optic Fiber Access Terminal Box

Description

UT-King’s fiber access termination box FATB216A is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,storage and cable connection in one solid protection box.

Indicators

  • Optical fiber curvature radius: 40mm
  • Additional loss of fiber optic disc: less than 0.01dB
  • Temperature range: - 40 C ~ + 70 C
  • lateral pressure resistance: greater than 2000N / 10 cm
  • Shock resistance: greater than or equal to 20N.m
  • Protection level: IP65

Features

  • Water-proof design with IP-65 Protection level.
  • Integrated with splice cassette and cable management rods.
  • Manage fibers in a reasonable fiber radius condition.
  • Easy to maintain and extend the capacity.
  • Fiber bend radius control more than 40mm.
  • Suitable for the fusion splice or mechanical splice.
  • 2:1*8 or 1:1*16 Splitter can be installed as an option.
  • Efficient cable management.
  • 16 ports cable entrance for drop cable.

Application

  • Wall mounting and aerial mounting installation
  • suitable for 2*3mm indoor FTTH drop cable an outdoor 4-7mm figure-8 self-supporting drop cable

Specification

Model UT- FATB216A
Protection level IP65
Material PC+ABS
Size 220X145X55mm
PLC Splitter 2pcs 1x8 or 1 pcs 1x16 Steeltube Type
Weight (kg) 0.7kg
Color White

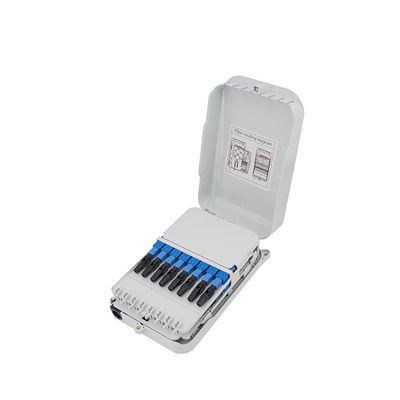

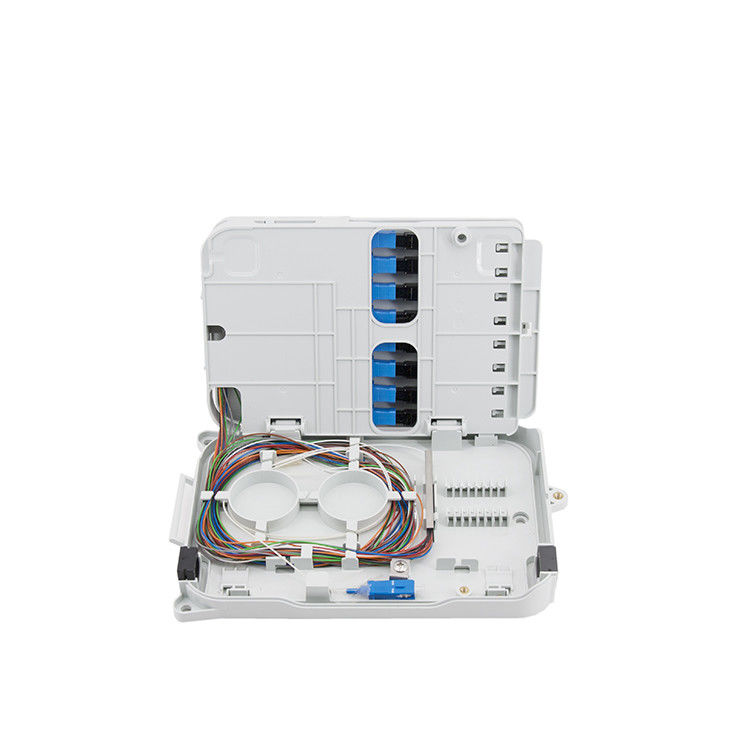

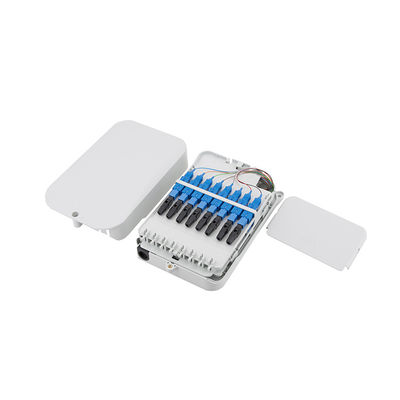

Deatialed Images

10mm IP65 Fiber Access Terminal Box Wall Mount 20Nm Black 010mm IP65 Fiber Access Terminal Box Wall Mount 20Nm Black 110mm IP65 Fiber Access Terminal Box Wall Mount 20Nm Black 210mm IP65 Fiber Access Terminal Box Wall Mount 20Nm Black 3
