Product Details:
|
| Application: | FTTH Terminal Box | Color: | Grey |
|---|---|---|---|
| Material: | Zinc-plated Cold Roll Steel Sheet | Product Name: | Fiber Optic Termination Box |
| Type: | Wall And Pole Mountable | Cable Diameter: | 5mm-10mm |
| Name: | Fiber Optic Termination Box | Ports: | 2,4,8,ports |
| Ip Grade: | IP65 | ||
| High Light: | FTB 104 fiber termination box,10mm Small fiber termination box,FTB 104 optical fiber distribution box |
||

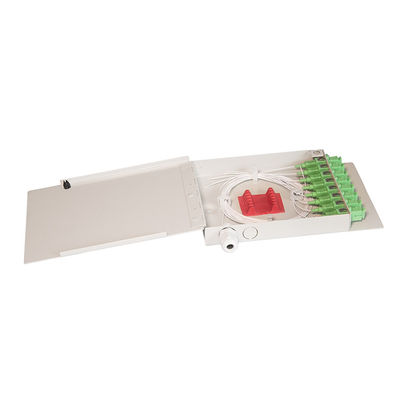

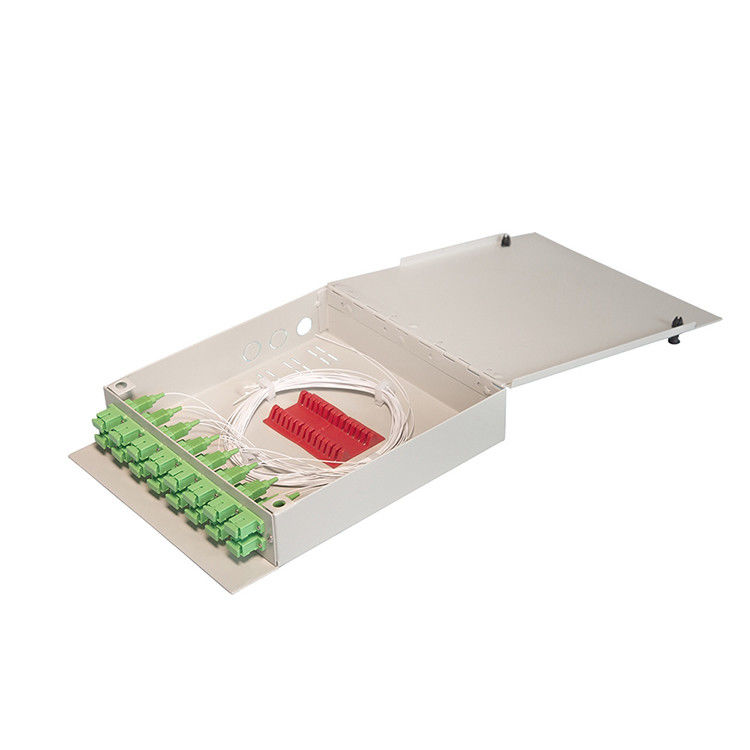

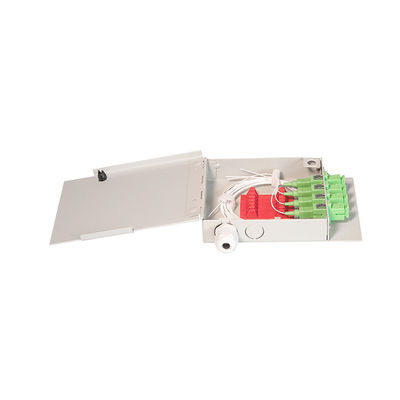

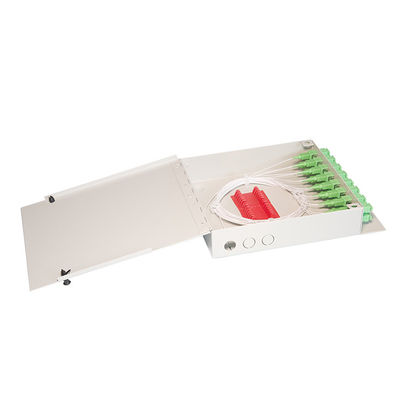

This series are used in the end termination of residential builings and villas,to fix and splice with pigtails,Hinge and convenient press button lock design.Wall mounted with mechanical protection system.Max Capacity is 4-16 cores,and 4-16 adapter outputs,available for FC.SC.ST.LC adapters.
| Model | UT- FTB104 | UT- FTB108 | UT- FTB116 |
| Dimension | 140x105x28mm | 200x148x30mm | 245x200x48mm |
| Color | Gray | Gray | Gray |
| Material | Cold-rolled steel | Cold-rolled steel | Cold-rolled steel |
| Max ratio | 1:4 | 1:8 | 1:16 |
| Cable entry ports | In 1 Out4 | In 1 Out 8 | In 1 Out 16 |
| Cable diameter | φ50-φ10 | ||
| Outter carton size | 730*315*275mm | 750*450*300mm | 530*480*390mm |
| number of Packing | 50 pcs/ctn | 40 pcs/ctn | 20 pcs/ctn |
| weight | 27kg /pcs | 27kg /pcs | 27kg /pcs |
