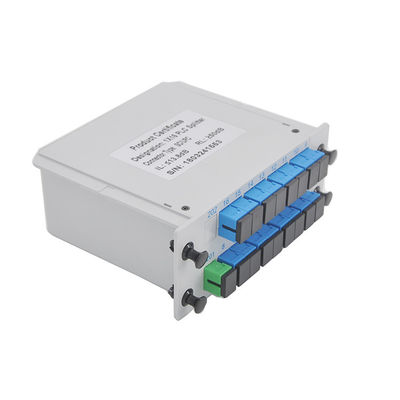

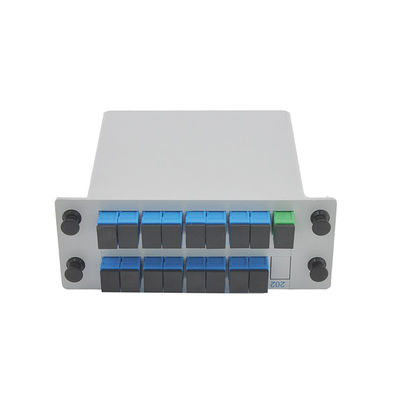

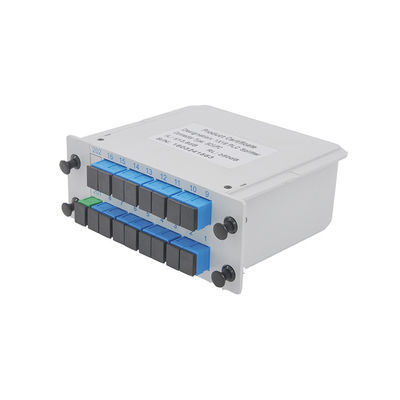

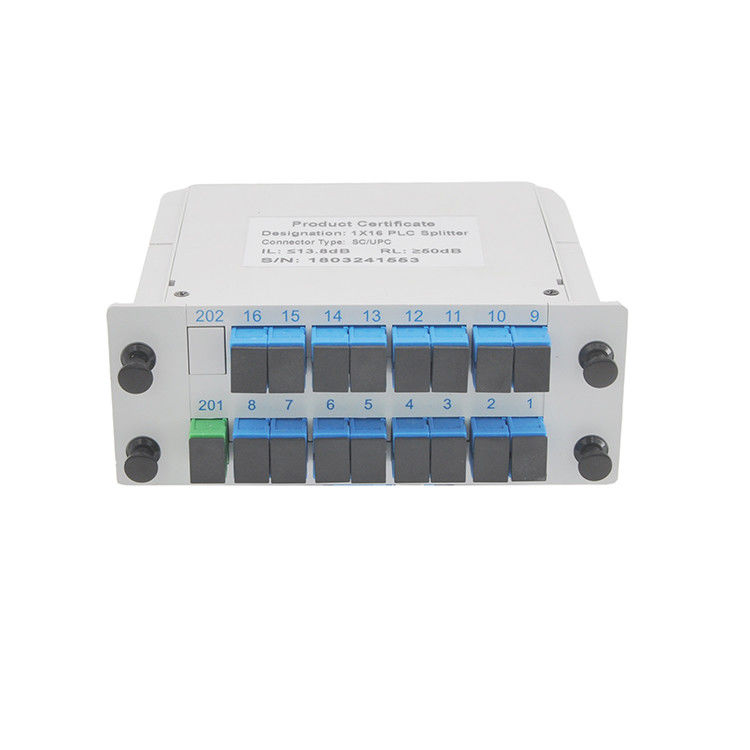

Product Details:
|
| Product Name: | PLC Splitter | Type: | Cassette Type 1x16 |
|---|---|---|---|
| Application: | FTTH FTTX Solution | Fiber Type: | G657A1 |
| Connector Type: | SC/UPC | Wavelength: | 1260-1650nm |
| Fiber Length: | 1m,1.5m Or Customized | Item: | Card Type PLC Spliter |
| Insertion Loss: | ≤13.8dB | Model: | SM/MM |
| Splitter Ratio: | 1*16 | Keywords: | Cassette PLC Splitter |
| High Light: | 1x16 Fiber Optic PLC Splitter,APC Fiber Optic PLC Splitter,Cassette Divisor 1x16 plc splitter |
||
UT-King's fiber optic PLC Splitter is one of the most important passive devices in the optical fiber link. Waveguides are fabricated using lithography onto a silica glass substrate, which allows for routing specific percentages of light. As a result, PLC splitters offer accurate and even splits with minimal loss in an efficient package.
It is an optical fiber tandem device with many input and output terminals, especially applicable to a passive optical network (EPON, GPON, BPON, FTTX, FTTH etc.) to connect the MDF and the terminal equipment and to branch the optical signal.
Specification
|
Item |
1x2 |
1x3 |
1x4 |
1x6 |
1x8 |
1x12 |
||||||||||
|
Operating Wavelength(nm) |
1260-1650 |
|||||||||||||||
|
Fiber Type |
G657A1 or as customers' order |
|||||||||||||||
|
Connector |
SC/FC/LC |
|||||||||||||||
|
Ferrule section |
UPC/APC |
|||||||||||||||
|
Insertion loss(dB) |
≤4.1 |
≤6.4 |
≤7.4 |
≤9.3 |
≤10.5 |
≤12.8 |
||||||||||
|
Loss uniformity(dB) |
≤0.4 |
≤0.4 |
≤0.6 |
≤1.6 |
≤0.8 |
≤1.2 |
||||||||||
|
Return Loss(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
||||||||||
|
Polarization Dependent Loss(dB) |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.25 |
||||||||||
|
Directivity(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
||||||||||
|
Temperature correlation loss -40～85℃(dB) |
≤0.5 |
≤0.5 |
≤0.5 |
≤1.5 |
≤0.5 |
≤0.5 |
||||||||||
|
Size(mm)(LxWxH) |
40×4×4 |
60×7×4 |
||||||||||||||
|
Working Temperature(℃) |
-40～85 |
|||||||||||||||
|
Storage Temperature(℃) |
-40～85 |
|||||||||||||||
|
Item |
1x16 |
1x24 |
1x32 |
1x48 |
1x64 |
1x128 |
||||||||||
|
Operating Wavelength(nm) |
1260-1650 |
|||||||||||||||
|
Connector |
SC/FC/LC |
|||||||||||||||
|
Ferrule section |
UPC/APC |
|||||||||||||||
|
Fiber Type |
G657A1 or as customers' order |
|||||||||||||||
|
Insertion loss(dB) |
≤13.8 |
≤15.8 |
≤16.8 |
≤18.7 |
≤20.5 |
≤24.1 |
||||||||||
|
Loss uniformity(dB) |
≤1.2 |
≤1.5 |
≤1.5 |
≤2.0 |
≤2.0 |
≤2.5 |
||||||||||
|
Return Loss(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
||||||||||
|
Polarization Dependent Loss(dB) |
≤0.25 |
≤0.3 |
≤0.3 |
≤0.4 |
≤0.4 |
≤0.4 |
||||||||||
|
Directivity(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
||||||||||
|
Temperature correlation loss -40～85℃(dB) |
≤0.5 |
≤0.5 |
≤0.5 |
≤1.5 |
≤0.5 |
≤0.5 |
||||||||||
|
Size(mm)(LxWxH) |
60×7×4 |
60×12×6 |
N/A |
|||||||||||||
|
Working Temperature(℃) |
-40～85 |
|||||||||||||||
|
Storage Temperature(℃) |
-40～85 |
|||||||||||||||
|
Item |
2x2 |
2x4 |
2x8 |
2x16 |
2x32 |
2x64 |
2x128 |
|||||||||
|
Operating Wavelength(nm) |
1260-1650 |
|||||||||||||||
|
Fiber Type |
G657A1 or as customers' order |
|||||||||||||||
|
Connector |
SC/FC/LC |
|||||||||||||||
|
Ferrule section |
UPC/APC |
|||||||||||||||
|
Insertion loss(dB) |
≤4.5 |
≤7.9 |
≤10.8 |
≤14.1 |
≤17.3 |
≤21.1 |
≤24.8 |
|||||||||
|
Loss uniformity(dB) |
≤0.9 |
≤1.1 |
≤1.2 |
≤1.5 |
≤1.8 |
≤2.2 |
≤2.5 |
|||||||||
|
Return Loss(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
|||||||||
|
Polarization Dependent Loss(dB) |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
≤0.4 |
≤0.4 |
≤0.4 |
|||||||||
|
Directivity(dB) |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
|||||||||
|
Temperature correlation loss -40～85℃(dB) |
≤0.5 |
≤0.5 |
≤0.5 |
≤1.5 |
≤0.5 |
≤0.5 |
≤0.5 |
|||||||||
|
Size(mm)(LxWxH) |
50×4×4 |
60×7×4 |
N/A |
|||||||||||||
|
Working Temperature(℃) |
-40～85 |
|||||||||||||||
|
Storage Temperature(℃) |
-40～85 |
|||||||||||||||
