Product Details:
|
| Product Name: | Fiber Optic Distribution Box | Material: | 70%PC+30%ABS |
|---|---|---|---|
| Color: | White/black | Cable Prot: | 2 In 8 Out |
| Dimension: | 215mm*220mm*55mm | Assemmbling Method: | Pole Or Wall-mounting |
| Protection Level: | IP65 | Keywords: | Fiber Optic Distribution Box |
| Number Of Packing: | 10 Pcs/ctn | Max Core: | 8 Ports |
| High Light: | 55mm Fiber Optic Distribution Box,FDB 208B Fiber Optic Distribution Box,FDB 208B ftth splitter box |
||

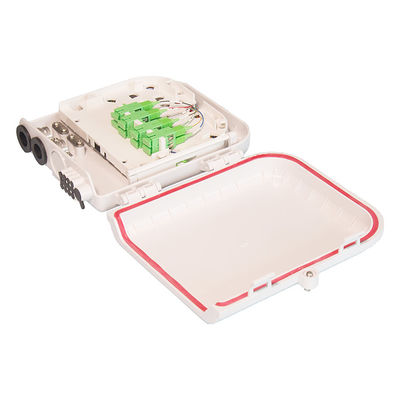

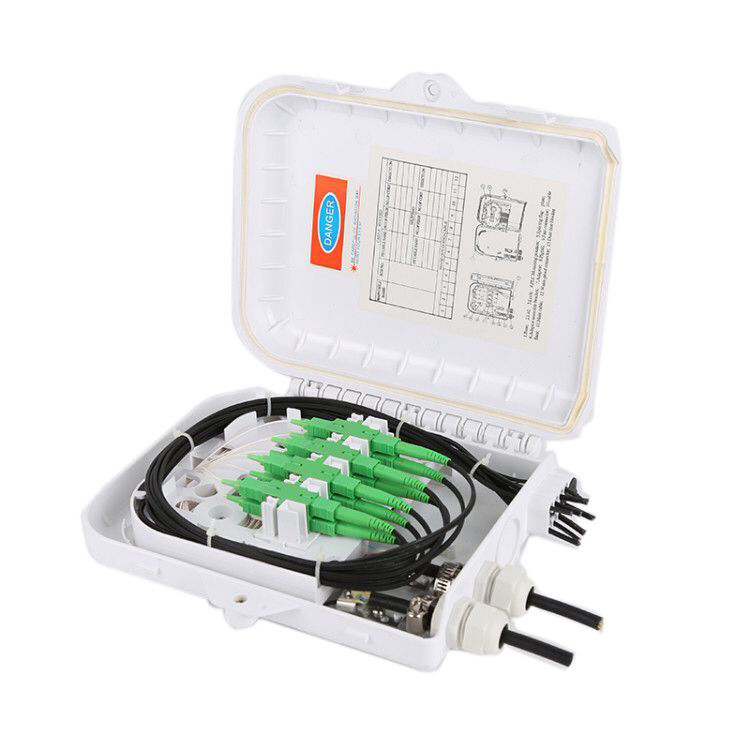

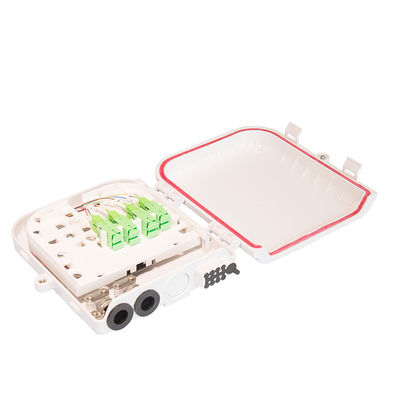

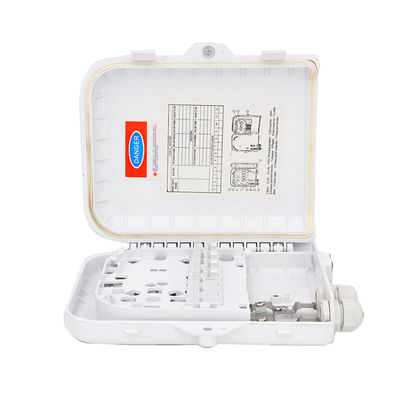

UT-King’s fiber distribution box (FDB) is normally located at the user access point to connect distribution cables and drop cables. In FTTx network, It works with the optical splitter to split optical fibers. to protect optical fiber splicing points, distribute and schedule optical fiber routings. FDB are often outdoor type.
| Model | UT-FDB208B |
| Dimension | 215mm*220mm*55mm |
| Color | White,Black or customized |
| Material | 70%PC+30%ABS |
| Max ratio | 1:8 |
| Cable entry ports | In 2 Out 8 |
| Diameter of Cable | Φ13mm |
| Assemmbling method | pole, wall-mounting |
| Protection level | IP65 |
| Outter carton size | 510*330*290mm |
| number of Packing | 20 pcs/ctn |
| weight | 0.8kg /pcs |
1．Wall-mounted installation
2．Pole-mounted installation
