Product Details:
|
| Product Name: | Fiber Optic Distribution Box | Material: | 70%PC+30%ABS |
|---|---|---|---|
| Color: | White/black | Cable Prot: | 2 In 24 Out |
| Dimension: | 340mm*250mm*110mm | Assemmbling Method: | Pole Or Wall-mounting |
| Protection Level: | IP65 | Keywords: | 24core Fiber Distribution Box |
| Number Of Packing: | 10pcs/carton | Adapter And Pigtai: | With Or Without Is Optional |
| Application: | Outdoor / Indoor | ||
| High Light: | ISO9001 fiber termination cabinet,20kg fiber termination cabinet,20kg fiber optic distribution unit |
||

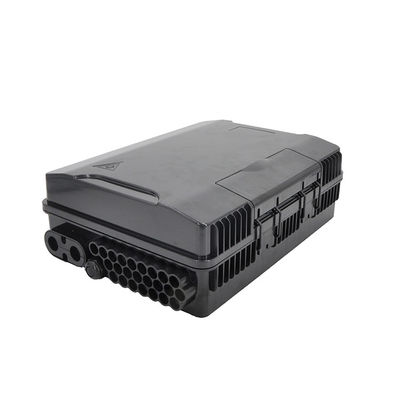

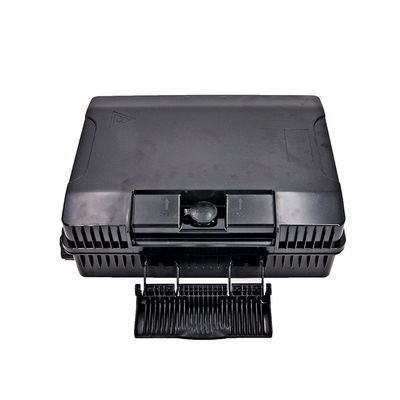

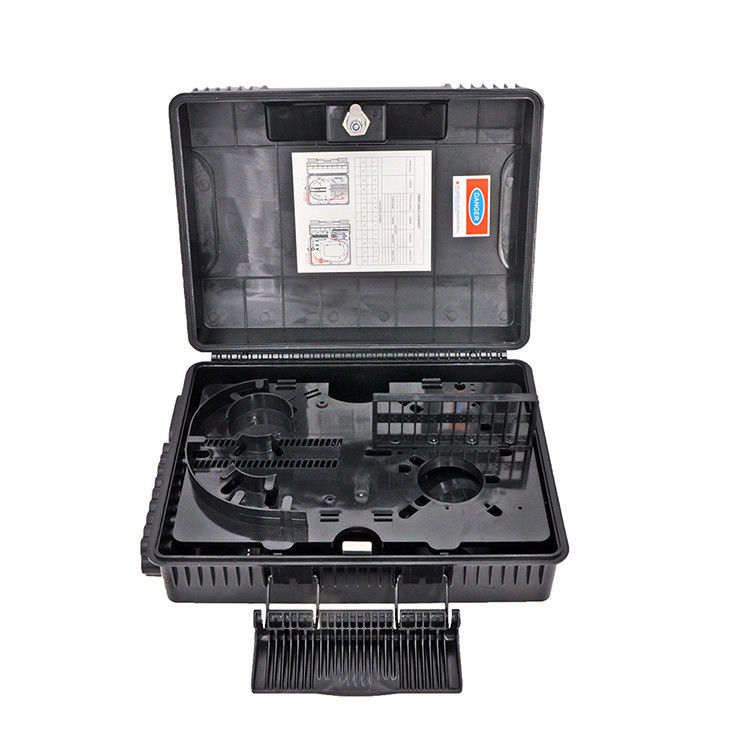

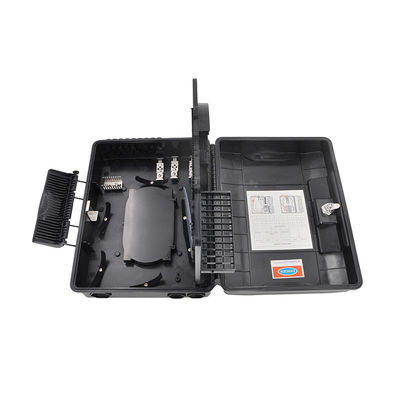

UT-King’s FDB224A is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
| Model | UT-FDB224A |
| Dimension | 340mm*250mm*110mm |
| Color | White,Black or customized |
| Capacity of FOSC | SC 24 cores/LC 48 cores |
| Max ratio | 1:24 |
| Cable entry ports | In 2 Out 24 |
| Diameter of Cable | Φ20mm |
| Assemmbling method | pole, wall-mounting |
| Protection level | IP65 |
| Outter carton size | 620*520*380mm |
| number of Packing | 10 pcs/ctn |
| weight | 20kg /ctn |
1．Wall-mounted installation
2．Pole-mounted installation
Table 1 Model and configuration
| Model | Description | Size(Pic 1) | Max Capacity | Installation Size(Pic 2) | Cable ways | ||
| A*B*C(mm) | SC | LC | PLC | D*E (mm) | |||
| FDB224A | Fiber Access Terminal | 340*250*110 | 24 | 48 |
1 x 1:16/ 3 x 1:8 |
145*120 | Cutted/uncutted cable |
