Product Details:
|
| Product Name: | Fiber Distribution Box | Material: | 70%PC+30%ABS |
|---|---|---|---|
| Color: | White/black | Cable Prot: | 3 In 8 Out |
| Dimension: | 525*450*425mm | Assemmbling Method: | Pole Or Wall-mounting |
| Protection Level: | IP65 | Keywords: | Outdoor Distribution Box |
| Number Of Packing: | 20 Pcs/ctn | Application: | Outdoor/indoor |
| High Light: | 425mm Fiber Optic Distribution Box,IP65 PC Fiber Optic Distribution Box,425mm PC indoor fiber termination box |
||

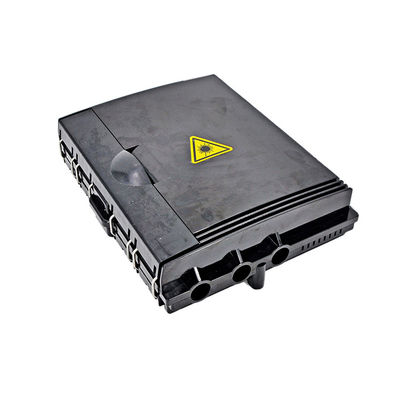

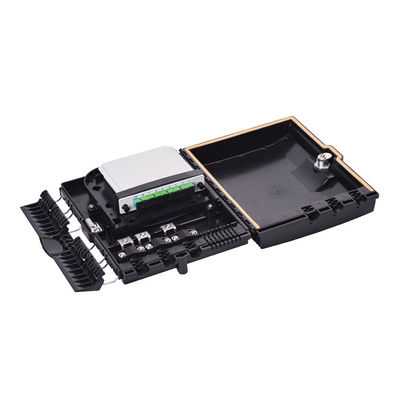

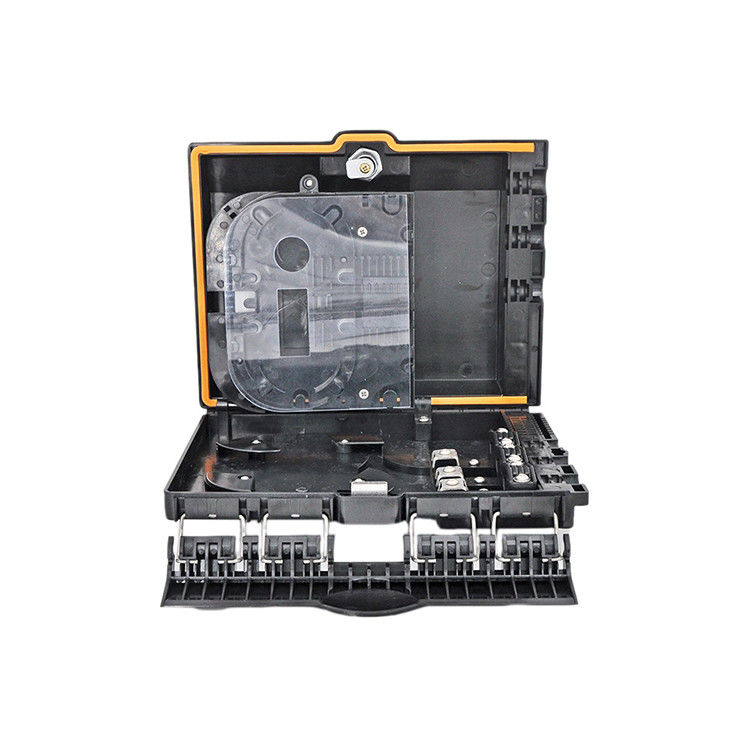

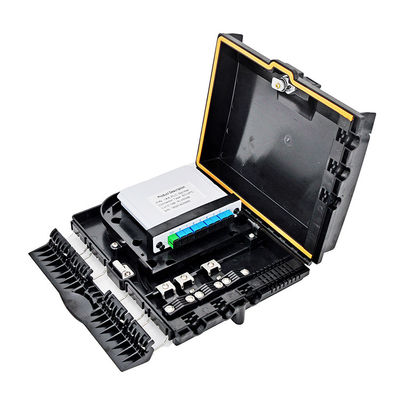

UT-King’s fiber distribution box (FDB) is normally located at the user access point to connect distribution cables and drop cables. In FTTx network, It works with the optical splitter to split optical fibers. to protect optical fiber splicing points, distribute and schedule optical fiber routings. FDB are often outdoor type.
| Model | UT-FDB308A |
| Dimension | 252mm*210mm*72mm |
| Color | White,Black or customized |
| Capacity of FOSC | Bunchy:24 cores |
| Max ratio | 1:8 |
| Cable entry ports | In 3 Out 8 |
| Diameter of Cable | Φ16mm |
| Assemmbling method | pole, wall-mounting |
| Protection level | IP65 |
| Outter carton size | 525*450*425mm |
| number of Packing | 20 pcs/ctn |
| weight | 24kg /ctn |
Installation:
1．Wall-mounted installation
2．Pole-mounted installation
