Product Details:
|
| Product Name: | Fiber Optic Distribution Box | Material: | 70%PC+30%ABS |
|---|---|---|---|
| Color: | White/black | Cable Prot: | 3 In 16 Out |
| Dimension: | 352mm*260mm*110mm | Assemmbling Method: | Pole Or Wall-mounting |
| Protection Level: | IP65 | Keywords: | Fiber Optic Distribution Box |
| Number Of Packing: | 12 Pcs/ctn | Diameter Of Cable: | 16mm |
| High Light: | LGX fiber optic joint enclosure box,CTO fiber optic joint enclosure box,CTO fiber optic splice box |
||

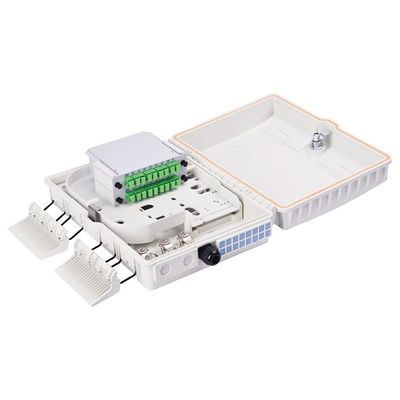

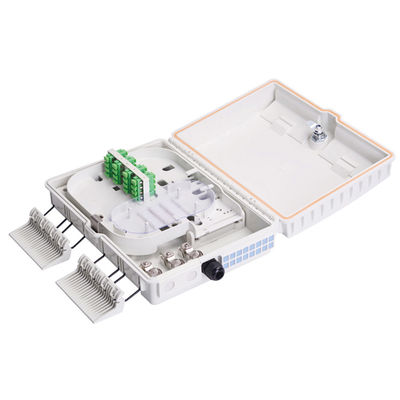

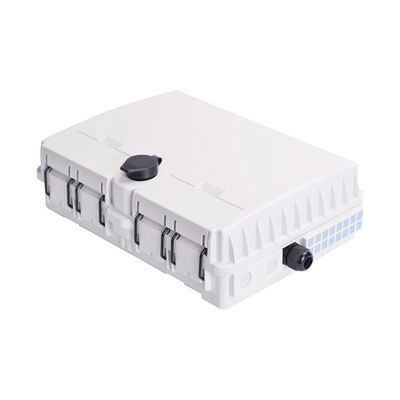

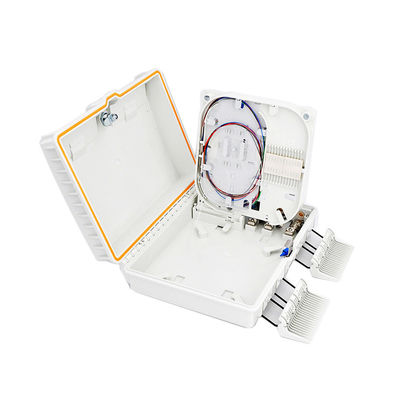

UT-King’s fiber distribution box (FDB) is normally located at the user access point to connect distribution cables and drop cables. In FTTx network, It works with the optical splitter to split optical fibers. to protect optical fiber splicing points, distribute and schedule optical fiber routings. FDB are often outdoor type.
Apply for Aerial , wall-mounted, and pole
Numberous applications such as mid-span, branch and direct splice
Different splitter panels support micro splitter with adapter
Space saving Double-layer design for easier installation and maintenance.
High strength material with good weather adaptability.
Excellent sealing performance, it is compatible with different optical cable
Can be as required installed 1pc cassette/LGX type splitter up to 1*8
| Model | UT-FDB316A |
| Dimension | 352mm*260mm*110mm |
| Color | White,Black or customized |
| Capacity of FOSC | Bunchy:24 cores |
| Max ratio | 1:16 |
| Cable entry ports | In 3 Out 16 |
| Diameter of Cable | Φ16mm |
| Assemmbling method | pole, wall-mounting |
| Protection level | IP65 |
| Outter carton size | 750*340*490 |
| number of Packing | 12 pcs/ctn |
| weight | 24kg /ctn |
1．Wall-mounted installation
Drill 4 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.(Pic 6)
2．Pole-mounted installation
Fix 1 set of the easy pole ring to the telecom pole .
1. Users' Manual*1.
2. Key*1.
3. Accessories Bag * 1
5. Easy pole ring*2,M6*20mm Bolt*2(Option)
