Nap Caja Fiber Optic Splice Box Outdoor Cable Terminal 24 Core

Certification
China Shenzhen UT-King Technology Co., Ltd. certification
China Shenzhen UT-King Technology Co., Ltd. certification
I'm Online Chat Now

Nap Caja Fiber Optic Splice Box Outdoor Cable Terminal 24 Core

Nap Caja Fiber Optic Splice Box Outdoor Cable Terminal 24 Core
Nap Caja Fiber Optic Splice Box Outdoor Cable Terminal 24 Core Nap Caja Fiber Optic Splice Box Outdoor Cable Terminal 24 Core Nap Caja Fiber Optic Splice Box Outdoor Cable Terminal 24 Core

Large Image :  Nap Caja Fiber Optic Splice Box Outdoor Cable Terminal 24 Core

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: FDB324A
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: 1pcs/box 10pcs/carton
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/week

Nap Caja Fiber Optic Splice Box Outdoor Cable Terminal 24 Core

Description
Product Name: Fiber Optic Distribution Box Material: 70%PC+30%ABS
Color: White/black Cable Prot: 3 In 24 Out
Dimension: 35*295*117mm Assemmbling Method: Pole Or Wall-mounting
Protection Level: IP65 Keywords: Optical Distribution Box
Number Of Packing: 10 Pcs/ctn Max Ratio: 1:32
Capacity Of FOSC:Bunchy: 24 Cores
High Light:

Caja fiber optic splice box outdoor

,

Nap fiber optic splice box outdoor

,

Nap Caja cable terminal box

Supply 24 Core Optical Cable Terminal Box Splice Enclosure Splitter Box Caja Nap Box PLC Splitter

Description

UT-King’s fiber distribution box (FDB) is normally located at the user access point to connect distribution cables and drop cables. In FTTx network, It works with the optical splitter to split optical fibers. to protect optical fiber splicing points, distribute and schedule optical fiber routings. FDB are often outdoor type.

Features

  • The high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain
  • For indoor and outdoor overhead and hang wall use;
  • Box of body use "lock type" structure, box of body switching of simple, convenient, with a lock function safe use;
  • Melt receive flip type design simple to use, melting with complete separation of fine points fibre layout more reasonable.

Specification

ModelUT-FDB324A
Dimension335*295*117mm
ColorWhite,Black or customized
Material70%PC+30%ABS
Max ratio1:32
Cable entry portsIn 3Out 24
Diameter of CableΦ13mm
Assemmbling methodpole, wall-mounting
Protection levelIP65
Outter carton size650*580*370mm
number of Packing10 pcs/ctn
weight2.1kg /ctn

Detail Images

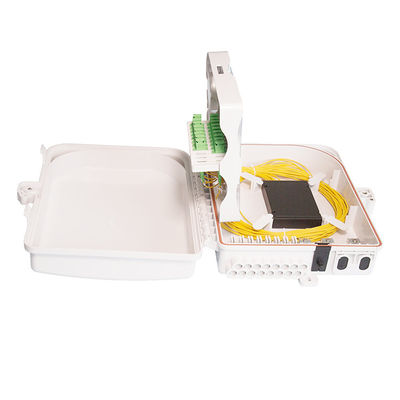

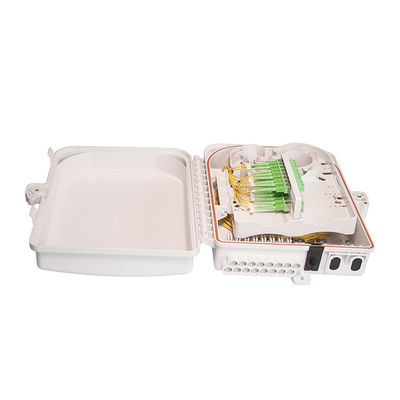

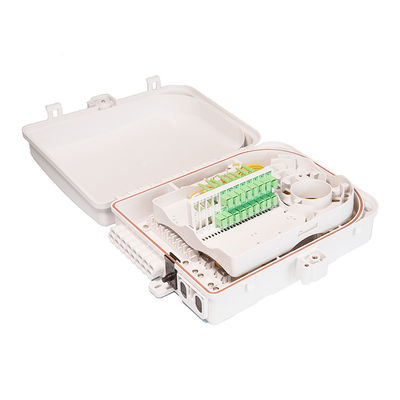

Nap Caja Fiber Optic Splice Box Outdoor Cable Terminal 24 Core 0Nap Caja Fiber Optic Splice Box Outdoor Cable Terminal 24 Core 1Nap Caja Fiber Optic Splice Box Outdoor Cable Terminal 24 Core 2

Installation:

1.Wall-mounted installation

Drill 4 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.(Pic 6)

2.Pole-mounted installation

Fix 1 set of the easy pole ring to the telecom pole .



16 Core Outdoor Fiber Optic Distribution Cabinet Black PC ABS PE Fiber Splicing 1*16 1

Accessories

1. Users' Manual*1.

2. Key*1.

3. Accessories Bag * 1

5. Easy pole ring*2,M6*20mm Bolt*2(Option)
