Wall Mounted Optical Fiber Distribution Frame 185mm ROHS 72 Cores

Wall Mounted Optical Fiber Distribution Frame 185mm ROHS 72 Cores
Wall Mounted Optical Fiber Distribution Frame 185mm ROHS 72 Cores Wall Mounted Optical Fiber Distribution Frame 185mm ROHS 72 Cores Wall Mounted Optical Fiber Distribution Frame 185mm ROHS 72 Cores Wall Mounted Optical Fiber Distribution Frame 185mm ROHS 72 Cores

Large Image :  Wall Mounted Optical Fiber Distribution Frame 185mm ROHS 72 Cores

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: FDB472A
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: 1pcs/box 10pcs/carton
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/week

Wall Mounted Optical Fiber Distribution Frame 185mm ROHS 72 Cores

Description
Product Name: Fiber Optic Distribution Box Material: 70%PC+30%ABS
Color: White/black Cable Prot: 4 In 72 Out
Dimension: 430*355*185mm Assemmbling Method: Pole Or Wall-mounting
Protection Level: IP65 Keywords: Fiber Optic Termination Box
Cable Port: 2 Entry Port + 2 Drop Cable Port Weigth: 3.5kg/pcs
High Light:

ROHS Fiber Distribution Frame

,

185mm Fiber Distribution Frame

,

185mm optical fiber distribution frame

Wall Mounted 12 24 48 72 Cores Optical Fiber Distribution Frame Terminal Termination Box

Description

UT-King’s fiber distribution box (FDB) is normally located at the user access point to connect distribution cables and drop cables. In FTTx network, It works with the optical splitter to split optical fibers. to protect optical fiber splicing points, distribute and schedule optical fiber routings. FDB are often outdoor type.



Standard wall mount enclosure is mainly used for connecting the indoor/outdoor optical cables, patch cords and pigtails. It can be wall mounted or pole mounted and provides various accessories to avoid any unexpected damage to the fiber. This types of fiber termiantion box as distribution box, it is usually used in between wiring closets and equipment for fiber optic cable termination, use and management.

Features

  • Total enclosed structure.
  • Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65.
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
  • Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.
  • Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
  • Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Specification

Model UT-FDB472A
Dimension 350*340*120mm
Color White,Black or customized
Material 70%PC+30%ABS
Max ratio 16/32/48/72 Cores
Cable entry ports In 4 Out 72
Diameter of Cable Φ16mm
Assemmbling method pole, wall-mounting
Protection level IP65
Outter carton size 610*510*330mm
number of Packing 10 pcs/ctn
weight 16kg /ctn

Detail Images

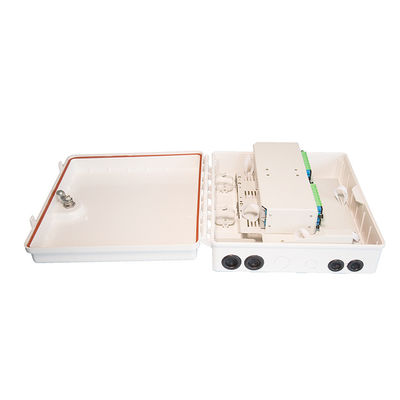

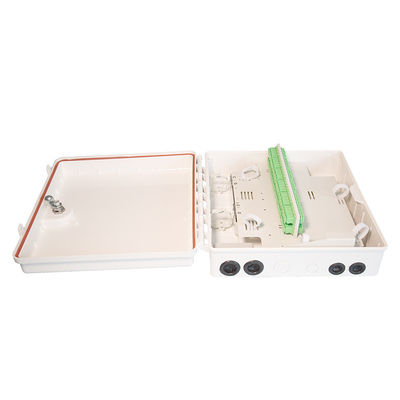

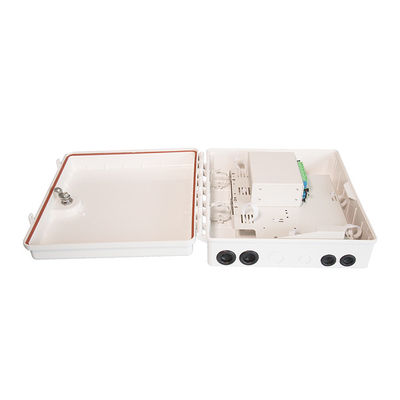

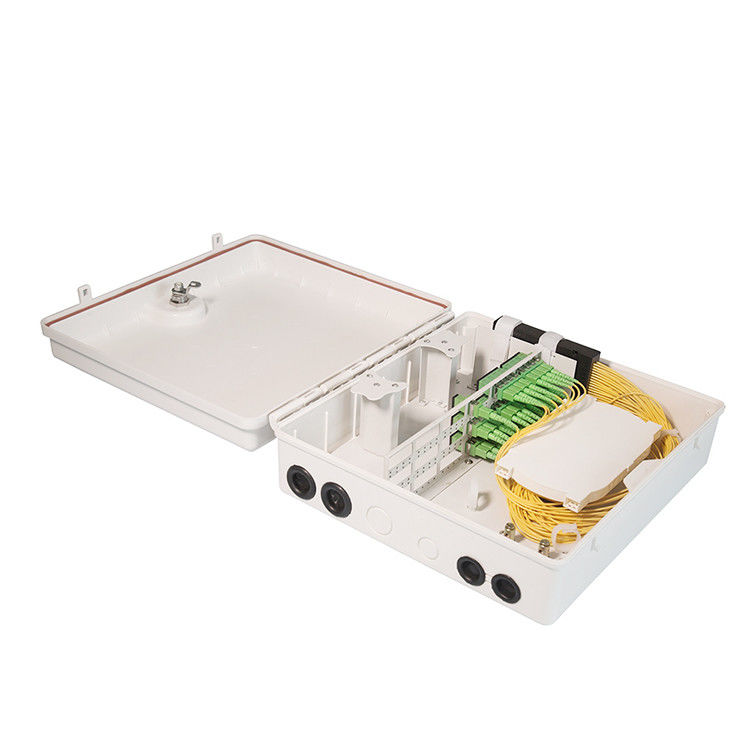

Wall Mounted Optical Fiber Distribution Frame 185mm ROHS 72 Cores 0Wall Mounted Optical Fiber Distribution Frame 185mm ROHS 72 Cores 1Wall Mounted Optical Fiber Distribution Frame 185mm ROHS 72 Cores 2Wall Mounted Optical Fiber Distribution Frame 185mm ROHS 72 Cores 3

Installation:

1.Wall-mounted installation
