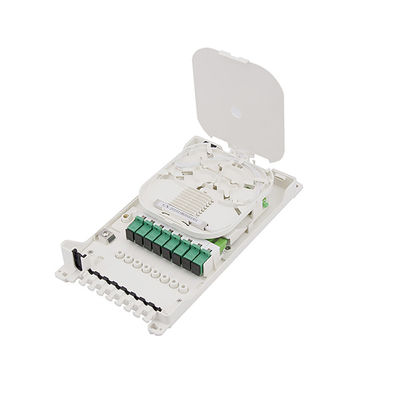

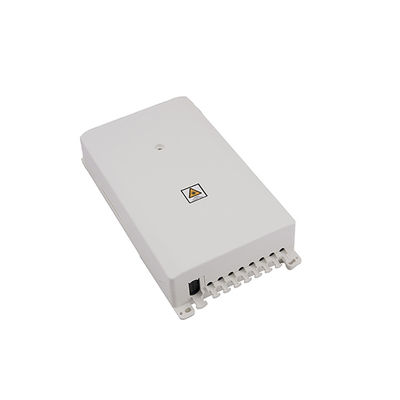

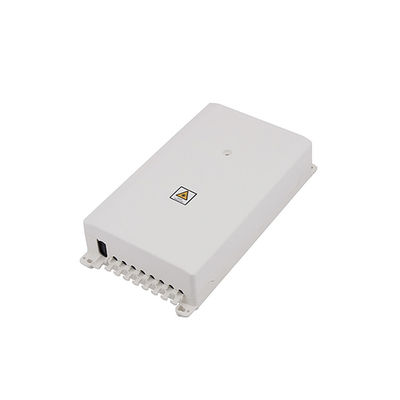

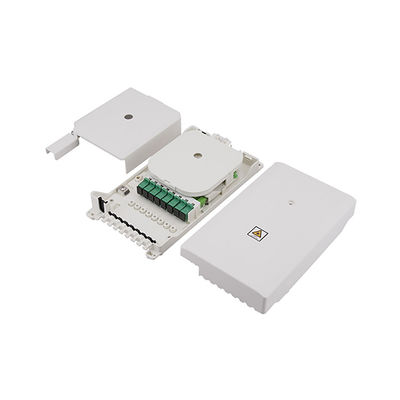

Fttx Indoor Fiber Optic Distribution Box Wall Mounting 2 In 8 Out 8 Ports Two Layers

Description

UT-King’s fiber access termination box FATB208A is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,storage and cable connection in one solid protection box.

Features

• Water-proof design with IP-66 Protection level.
• Integrated with splice cassette and cable management rods.
• Manage fibers in a reasonable fiber radius condition.
• Easy to maintain and extend the capacity.
• Fiber bend radius control more than 40mm.
• Suitable for the fusion splice or mechanical splice.
• 1*8 Splitter can be installed as an option.
• Efficient cable management.
• 8 ports cable entrance for drop cable.

Application

• Wall mounting and aerial mounting installation
• suitable for 2*3mm indoor FTTH drop cable an outdoor 4-7mm figure-8 self-supporting drop cable

Specification

Deatialed Images
