Product Details:
|
| Application: | Fiber Access Terminal Box | Color: | White/Black |
|---|---|---|---|
| Material: | ABS+PC | Product Name: | Fiber Access Terminal Box |
| Type: | Wall And Pole Mountable | Cable Diameter: | 12mm |
| Name: | Fiber Optic Cable Termination Box | Ports: | 8 Ports |
| Ip Grade: | IP65 | Size: | 330*210*87mm |
| High Light: | abs 12mm ftth termination box,abs IP65 ftth termination box,IP65 12mm Outdoor Fiber Termination Box |
||

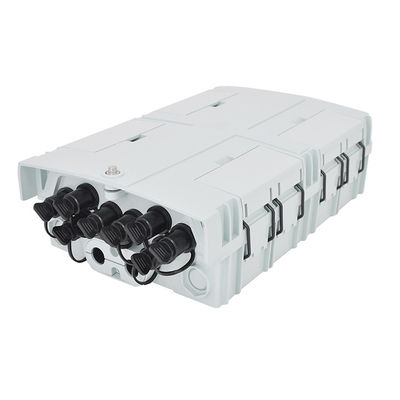

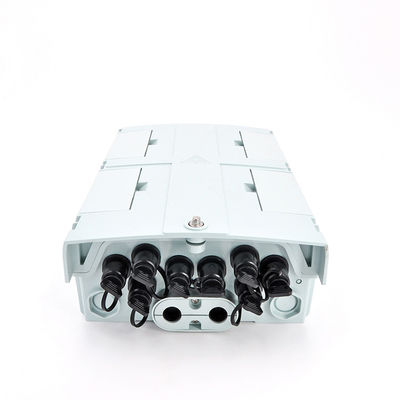

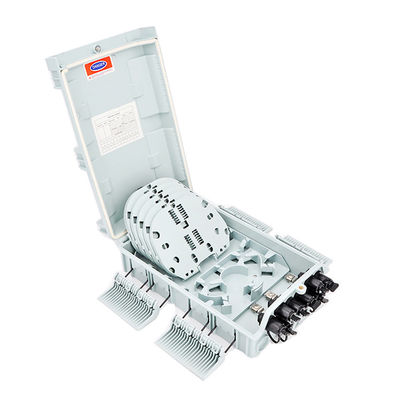

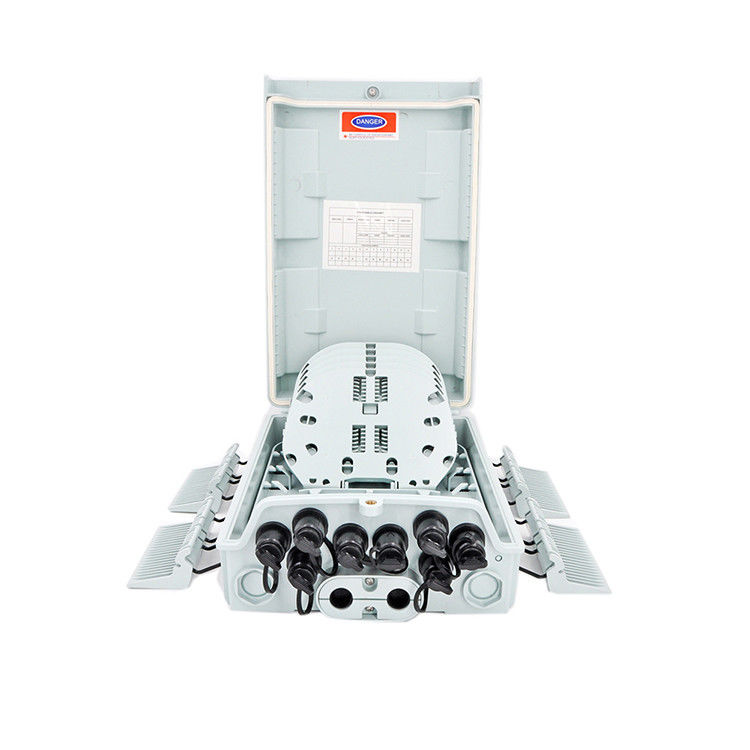

UT-King’s fiber access termination box FATB408B is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.The fiber splicing,splitting,distribution can be done in this box,and meanwhile it provides solid protection and management for the FTTx network building.
| Model | UT-FATB408B |
| Dimension(LxWxH) | 330*210*87mm |
| Cable entries |
Inlet port: 4 ports Outlet port: 16 ports, 2*3mm drop cable or indoor cable |
| Splicing Tray | 12/24 fiber per tray, up to 48 splicing |
| Material | ABS+PC |
| PLC splitter | 1*4,1*8,1*12 ,1*16 Mini Steel Tube/ bare type PLC splitter |
| No. of Adapter |
Max. 16pcs SC SX 16pcs LC DX Adapter |
| IP rating | IP65 |
| Cable Entry | Support un-cutting |
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
