Anatel Fiber Optic Terminal Box Access IP65 ABS Pole Mountable

Anatel Fiber Optic Terminal Box Access IP65 ABS Pole Mountable
Anatel Fiber Optic Terminal Box Access IP65 ABS Pole Mountable Anatel Fiber Optic Terminal Box Access IP65 ABS Pole Mountable Anatel Fiber Optic Terminal Box Access IP65 ABS Pole Mountable Anatel Fiber Optic Terminal Box Access IP65 ABS Pole Mountable

Large Image :  Anatel Fiber Optic Terminal Box Access IP65 ABS Pole Mountable

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: FTAB416D
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

Anatel Fiber Optic Terminal Box Access IP65 ABS Pole Mountable

Description
Application: Ftth Fiber Termination Box Color: Black
Material: PC+ABS Product Name: Fiber Access Terminal Box
Type: Wall And Pole Mountable Cable Diameter: 15mm
Name: Terminal Box Fiber Optic Ports: 16 Ports
Ip Grade: IP65 Size: 287*172*102mm
High Light:

ftth Anatel Fiber Optic Terminal Box

,

IP65 ABS Fiber Optic Terminal Box

,

ftth IP65 ABS Fiber Access Terminal

Manufacturing Optical Fiber 16 Port IP65 Waterproof Anti-Uv Access Box Anatel Ftth Fiber Termination Box





Description

UT-King’s fiber access termination Box FATB416D is able to hold up to 16 subscribers and 96 splicing points as closure. it is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box



Features



  • Water-proof design with IP-65 Protection Level.
  • Integrated with flap-up splice cassette and adaptor holder
  • All stainless metal plate and anti-rusting bolts, nuts
  • Fiber bend radius control more than 40mm
  • Suitable for the fusion splicer or mechanical splice
  • 2 pcs of 1*8 PLC splitter can be installed as an option
  • Mechanical sealing structure and mid-span cable entry.
  • 16 ports cable entrance for drop cable
  • 16 adapter for drop cable patching





Application

  • Wall mounting, pole mounting and aerial mounting installation
  • suitable for 2*3mm indoor FTTH drop cable an outdoor 4-7mm figure-8 self-supporting drop cable



Specification

Model UT- FATB416D
Size L*W*H(mm) 287*172*102mm
Protection level IP65
Material ABS+PC
Max splitting 1:16 Mini PLC Splitter
Weight (kg) 1.8
Cable diameter(mm) ≤ 15
Cable inlet/outlet 4 / 16
Fiber core capacity 16 (single core)
Color Grey/black
Weight 1.15kg/pcs

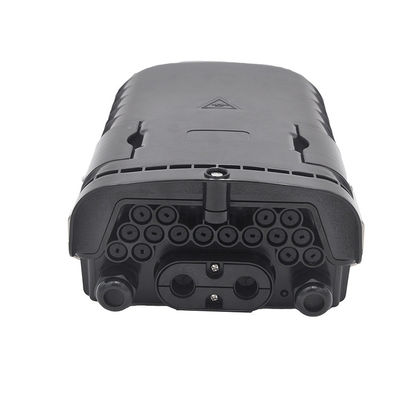

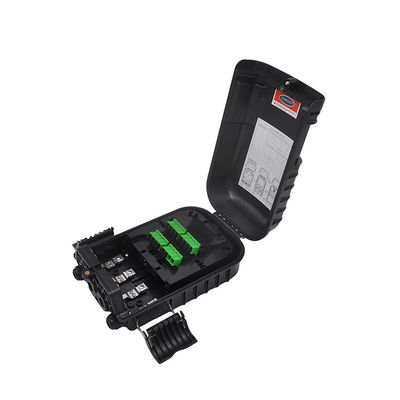

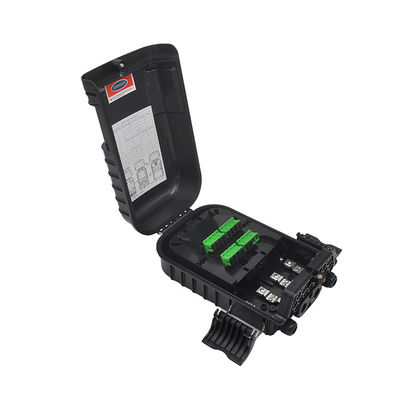

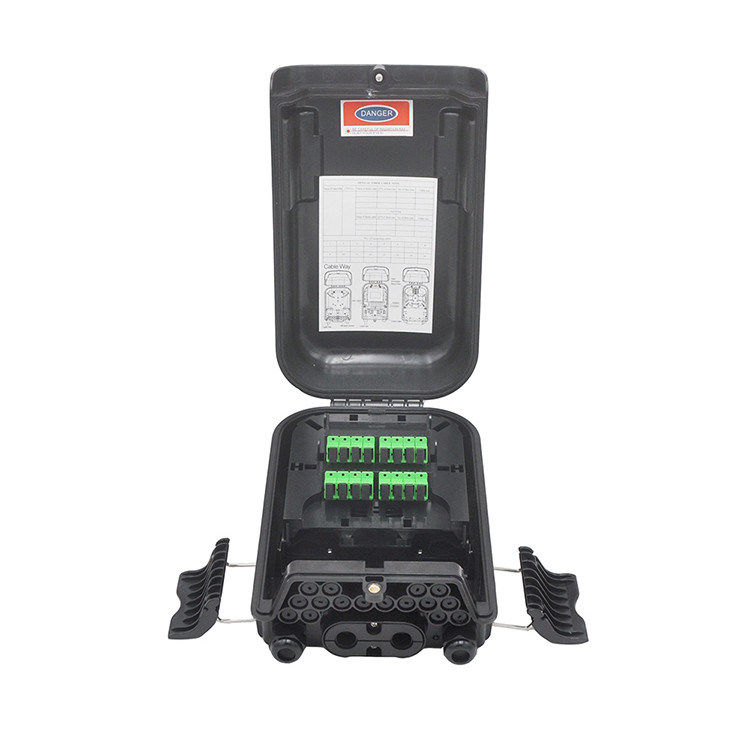

Detailed Images

Anatel Fiber Optic Terminal Box Access IP65 ABS Pole Mountable 0Anatel Fiber Optic Terminal Box Access IP65 ABS Pole Mountable 1Anatel Fiber Optic Terminal Box Access IP65 ABS Pole Mountable 2Anatel Fiber Optic Terminal Box Access IP65 ABS Pole Mountable 3

FAQ



Q: Do you have any MOQ limit for sample order?

A: Low MOQ, 1pc for sample checking is available


Q: What’s your best price?

A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.



Q:How to proceed an order for the product?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.



Q: Do you offer guarantee for the products?

A: Yes, we offer 1-2 years warranty to our formal products.
