Product Details:
|
| Application: | Fiber Termination Box | Color: | White |
|---|---|---|---|
| Material: | PC+ABS | Product Name: | Fiber Access Terminal Box |
| Type: | Wall And Pole Mountable | Cable Diameter: | 15mm |
| Name: | Terminal Box Fiber Optic | Ports: | 16 Ports |
| Ip Grade: | IP65 | Size: | 270*270*80mm |
| Adaptor Type: | SC/APC /SC/UPC | Fiber Type: | NAP Box 16 Port |
| High Light: | 15mm Aerial outdoor terminal box,SC NAP outdoor terminal box,NAP SC fiber optic distribution unit |
||

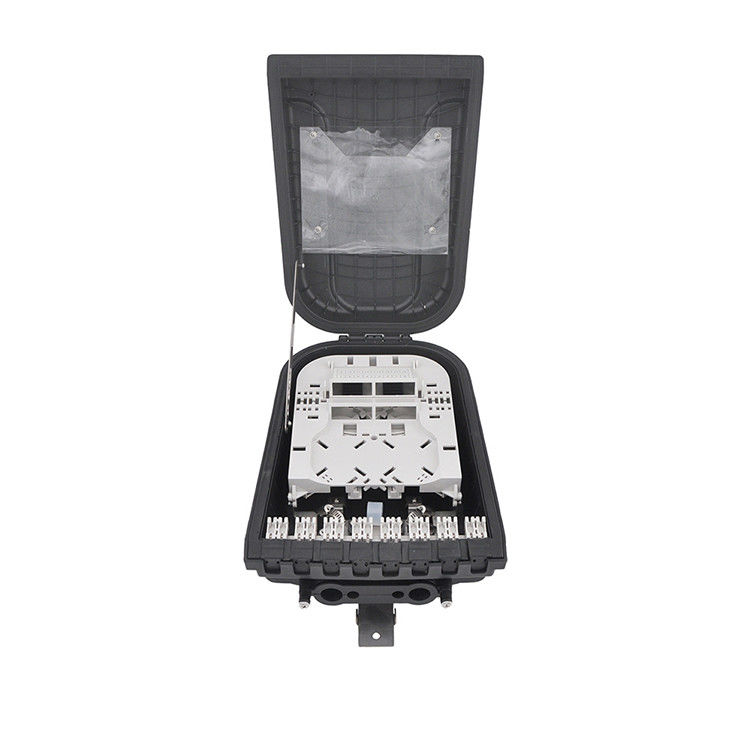

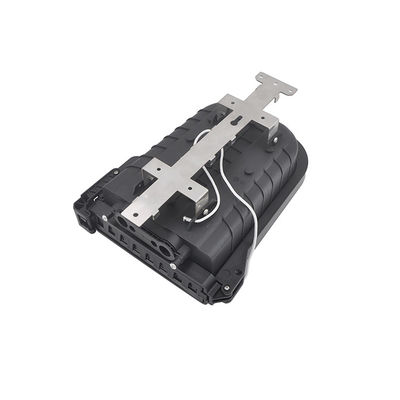

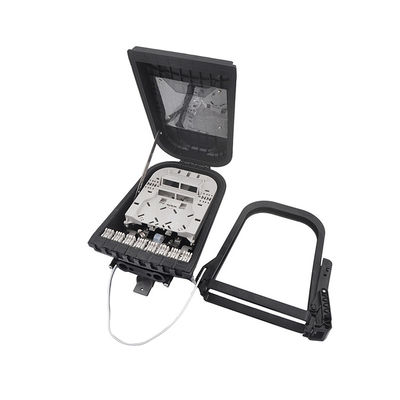

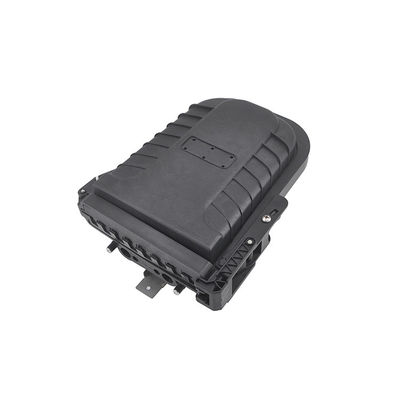

UT-King’s fiber access termination Box FATB416F provides a high-density wall mounted or pole solution for next generation networks, which aims to provide and manage fiber splitters in a limited space in a limited space. It is designed for FTTH (Fiber to the Home) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside.
| Model | UT- FATB416F |
| Protection level | IP65 |
| Max splitting | 1:16 Cassette PLC Splitter |
| Weight (kg) | 1.8 |
| Cable diameter(mm) | ≤ 15 |
| Cable inlet/outlet: | 4 / 16 |
| Fiber core capacity | 16 (single core) |
| Color | Black |
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q:How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
