AC Dual Band Gpon Ont Fiber Optic XPON 1POTS 4GE 2 USB

AC Dual Band Gpon Ont Fiber Optic XPON 1POTS 4GE 2 USB
AC Dual Band Gpon Ont Fiber Optic XPON 1POTS 4GE 2 USB AC Dual Band Gpon Ont Fiber Optic XPON 1POTS 4GE 2 USB AC Dual Band Gpon Ont Fiber Optic XPON 1POTS 4GE 2 USB AC Dual Band Gpon Ont Fiber Optic XPON 1POTS 4GE 2 USB

Large Image :  AC Dual Band Gpon Ont Fiber Optic XPON 1POTS 4GE 2 USB

Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE,ROHS,ISO9001
Model Number: HS8546V2
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

AC Dual Band Gpon Ont Fiber Optic XPON 1POTS 4GE 2 USB

Description
Application: FTTH Color: White
Function: 1POTS+4GE+2USB+2.4G&5G WiFi Product Name: Gpon ONT
Power Supply: 12V 1.5A Connector: RJ45
PON Port: SC/UPC Wavelength: 1310/1490nm
Size: 265mm X 176mm X 82mm Weight: About 0.7 Kg
WIFI: 2.4G&5.8G Maximum Number Of MAC Addresses Learned: 1024
High Light:

dc 5.8g dual band gpon ont

,

dc pc dual band gpon ont

,

5.8g pc fiber optic ont

AC Dual-Band Wifi Huawei HS8546V2 ONU EPON GPON XPON 4 Gigabit Ethernet Port Gpon Ont




Description

Huawei HS8546V2 FTTH is a device with 4 Gigabit Ethernet ports, 1 telephone port, 1 class B + GPON port, 2 USB ports and also equipped with a WPS button and a built-in 8G SD memory card. Huawei HS8546V2 FTTH can transmit a wireless network. it is possible to simultaneously transmit in two 2.4 and 5G bands. It has been equipped with security functions such as a firewall and filtering based on MAC / UP / URL addresses.



Features

  • Huawei GPON ONT HS8546V Optical Network Terminal
  • GPON ONT, 4*GE+1*POTS+2*USB, with 2.4G/5G WiFi
  • Support 802.11ac
  • Support IPv4&IPv6
  • Connector type SC/UPC
  • Can be configured by OLT or Web or NMS
  • Routing function supported
  • China Mobile Logo




Specification

Model HS8546V2
PON Type GPON
Optical interface SC/UPC
UNI 1POTS+4GE+2USB+2.4G&5G Wi-Fi
WiFi standard 2.4GHz: 2 x 2 MIMO 802.11b/g/n
5GHz: 2 x 3 MIMO 802.11a/n/ac
Antenna gain 2dBi
Dimensions(Width×Depth×Height) 265mm x 176mm x 82mm
Box Dimensions(Width×Depth×Height) 290mm x 230mm x 95mm
Box Weight(kg) 0.85kg
Power supply Power supply: 11-14V DC, 1A
Input power: 100-240V AC, 50/60HZ
Operating temperature and operating humidity 0℃ to 40℃
5% to 95%, non-condensing
Cooling Passive cooling
Maximum number of MAC addresses learned 1024
L2 forwarding capability 200 Mbit/s downstream (with any length packets)
200 Mbit/s upstream (with any length packets)
IPv4 L3 forwarding capability 2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
IPv6 L3 forwarding capability 2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
Configuration method NMS, Web, or TR069
Voice protocol SIP, H.248

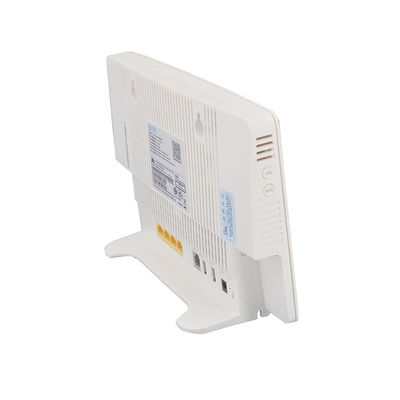

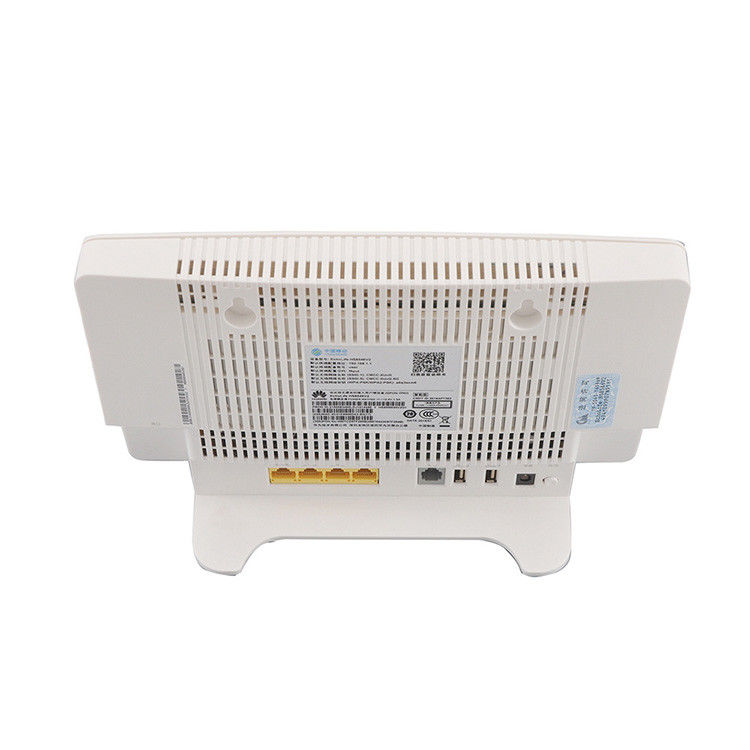

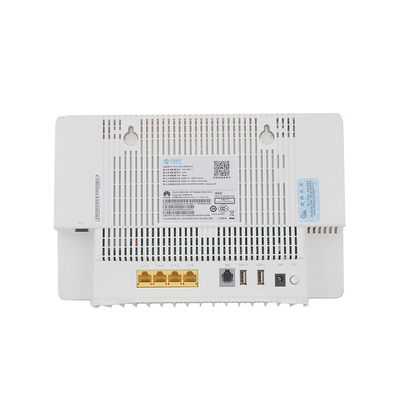

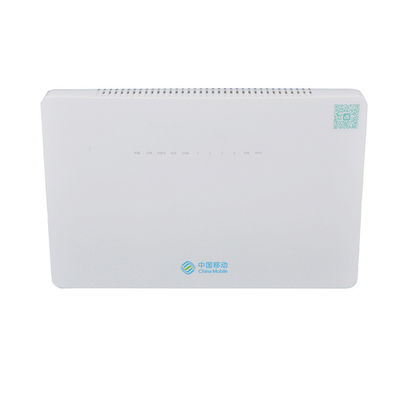

Detailed Images

AC Dual Band Gpon Ont Fiber Optic XPON 1POTS 4GE 2 USB 0AC Dual Band Gpon Ont Fiber Optic XPON 1POTS 4GE 2 USB 1AC Dual Band Gpon Ont Fiber Optic XPON 1POTS 4GE 2 USB 2AC Dual Band Gpon Ont Fiber Optic XPON 1POTS 4GE 2 USB 3

FAQ

Q: What is the difference between Huawei HS8546V2 and Huawei HG8546M (GE)?
A: The main difference is Huawei HS8546V2 comes with 2.4G/5G WiFi, Huawei HG8546M (GE) only 2.4G WiFi. Huawei HS8546V2 comes with 4GE ports, Huawei H8546M (GE) with 1GE port.


Q: Does Huawei HS8546V2 comes with Europe type adapter?
A: No, it comes with Huawei original Chinese type adapter, if need other specification, please contact with Thunder-linkcom sales team.


Q: Does Huawei HS8546V2 login page is English?
A: Yes, it is English version.


Q: Does Huawei HS8546V2 support routing function?
A: Yes.


Q: Does Huawei HS8546V2 support battery back?
A: No.


Q: How to Restore Factory Settings for Huawei HS8546V2?
A: Use either of the following methods to restore factory settings for Huawei HS8546V2:
1. Choose System Tools > Restore Default Configuration from the main menu on the web page and click Restore Default Configuration.
2. Hold down the RESET button for a long period of time (longer than 10s) to restart the Huawei HS8546V2 with factory settings.


Q: How to configure the Wi-Fi service on Huawei HS8546V2?
A: Configure the Wi-Fi service through web pages or TR069 servers for Huawei HS8546V2 that supports Wi-Fi. For details, see the user manual of Huawei HS8546V2 device.
