1GE WIFI GPON ONU ZXA10 Optical Terminal Unit 4 LAN

1GE WIFI GPON ONU ZXA10 Optical Terminal Unit  4 LAN
1GE WIFI GPON ONU ZXA10 Optical Terminal Unit  4 LAN 1GE WIFI GPON ONU ZXA10 Optical Terminal Unit  4 LAN 1GE WIFI GPON ONU ZXA10 Optical Terminal Unit  4 LAN 1GE WIFI GPON ONU ZXA10 Optical Terminal Unit  4 LAN

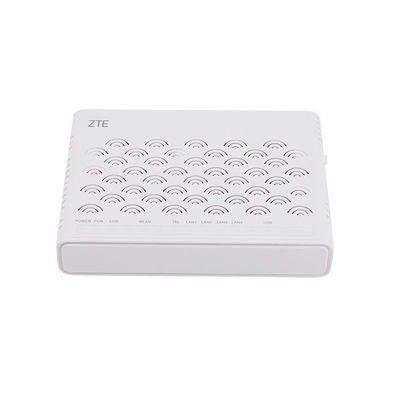

Large Image :  1GE WIFI GPON ONU ZXA10 Optical Terminal Unit 4 LAN

Product Details:
Place of Origin: China
Brand Name: ZTE
Certification: CE,ROHS,ISO9001
Model Number: F660
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

1GE WIFI GPON ONU ZXA10 Optical Terminal Unit 4 LAN

Description
Application: FTTH Function: 1GE+3FE GPON ONU
Product Name: ZTE GPON ONU Power Supply: DC 12V
PON Port: 1 X SC/PC Or SC/APC Wavelength: 1310/1490nm
Size: 20mm*23mm*5mm Weight: About 0.6kg
Modes Of Operation: Bridge Network-side Ports: GPON
Download: 2.448 Gb/s Transmission: 1.244 Gb/s
Transmission Range: Up To 20km Sensitivity: -28 DBm
High Light:

sc 1GE GPON ONU

,

PC 12V GPON ONU

,

1GE 12V optical terminal unit

ZTE ZXA10 F660 V6 1GE+3FE+WIFI+USB 4 LAN 2 POT 1USB WIFI GPON Optical Terminal Unit




Description

ZTE ZXA10 F660 FTTH is a GPON Optical Network Terminal for HGU (Home Gateway Unit), and it supports L3 function to help subscribers build an intelligent home network. ZTE ZXA10 F660 FTTH provides users with rich, colourful, individualized, and comfortable triple-play services including voice, video (IPTV) and high-speed internet access. This model also supports IEEE 802.11b/g/n that allows the subscriber to enjoy the internet via wifi. It has a small, smart appearance and green, energy-saving advantage.





Features

  •   Meeting different scenarios requirements to provide different interfaces such as FE, GE, VoIP, E1 WiFi USB and other interfaces to meet the requirements of FTTH, FTTO and FTTB application modes, not only for the home user but also for commercial users.
  • Easy for deployment Mounting mode and fibre coiling make installation very easy, with the batch configuration on EMS to ensure zero configurations on the ONT side.
  • Easy for troubleshooting Supporting ONT signal tracing and performance monitoring, and quickly locate the fault on ONT.
  • Particular power saving Supporting status monitoring when ONT is free, and enter low power consumption state; Optical module can also enter a low-power state when the battery is working.




Specification

Number of LAN ports 1x 10/100/1000BaseTX (RJ45), 3x 10/100BaseTX (RJ45)
PON standard GPON
USB port 1x USB
Features of GPON Optical port: 1 x GPON (SC / PC) interface
Transmission distance: 20 km
Transmission speed
-Download: 2,488 Gb/s
-Send: 1.244 Gb/s
User interface 1 x 10/100/1000 Base-T, half/full duplex, Automatic MDI/MDIX, automatic negotiation
3 x 10/100 Base-T, half/full duplex, automatic MDI/MDIX, automatic negotiation
2 x POTS interface
1 x Wi-Fi interface: IEEE 802.11b/g/n 2.4 GHz
1 x USB 2.0 host interface
Optical module Reception: 1480-1500 nm
Transmission: 1290-1330 nm
The sensitivity of the receiver: -28 dBm
Transmitter optical power: From 0.5 to 5 dBm
Main features Supported services: VoIP, Internet, IPTV
GPON: 8 x T-CONT, 32 x GEM port
VLAN: 802.1Q, 802.1P, 802.1ad
MC address plate: 1K
L3 functions: DHCP server/client, DNS client, NAT
IPv6: Dual stack, DS-Lite
VoIP: SIP/H.248, G.711/G.722/G.279, T.30/T.38
Wi-Fi: 4 x SSID, 2x2 MIMO, WPS
Wi-Fi Authentication: Common Key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK+WPA2-PSK, WPA2-Enterprise
Multicast: IGMP v1/v2/Snooping/Proxy, MLD v1 Snooping
Multicast group per user port: 256
QoS: Flow classification for services based on physical ports, MAC address, VLAN ID, VLAN priority level, IP address, SP/WRR/SP+WRR
Management: Local Web, OMCI, TR069
USB: DLNA DMS, USB backup, 3G/LTE adapter





Detailed Images

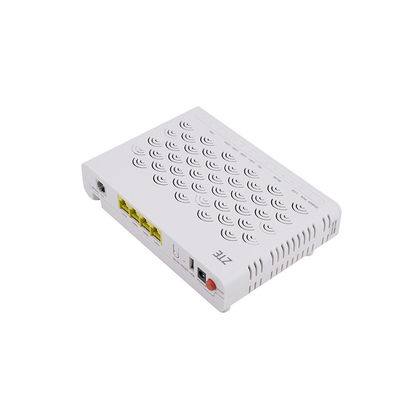

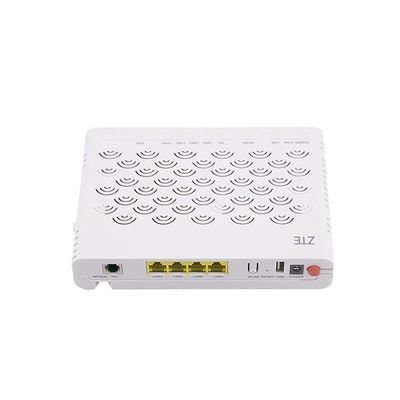

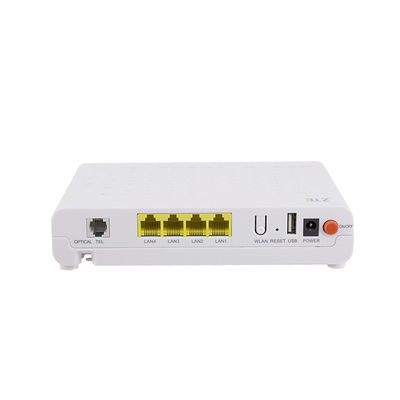

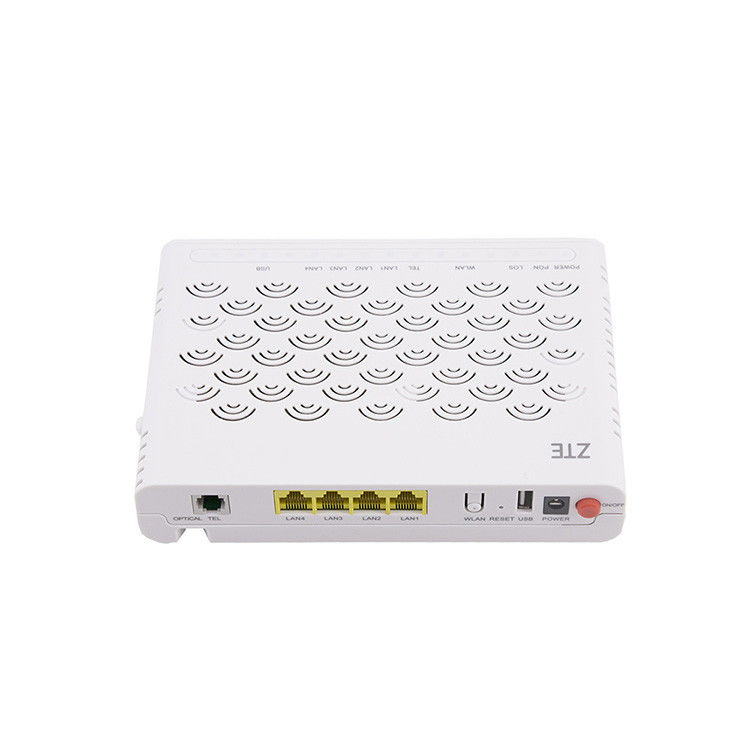

1GE WIFI GPON ONU ZXA10 Optical Terminal Unit  4 LAN 01GE WIFI GPON ONU ZXA10 Optical Terminal Unit  4 LAN 11GE WIFI GPON ONU ZXA10 Optical Terminal Unit  4 LAN 21GE WIFI GPON ONU ZXA10 Optical Terminal Unit  4 LAN 3

FAQ

Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available


Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.



Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.



Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
