EG8145V5 GPON ONU 4ge 5db 1 Tel Optical Network Terminal Dual

EG8145V5 GPON ONU 4ge 5db 1 Tel Optical Network Terminal Dual
EG8145V5 GPON ONU 4ge 5db 1 Tel Optical Network Terminal Dual EG8145V5 GPON ONU 4ge 5db 1 Tel Optical Network Terminal Dual EG8145V5 GPON ONU 4ge 5db 1 Tel Optical Network Terminal Dual EG8145V5 GPON ONU 4ge 5db 1 Tel Optical Network Terminal Dual

Large Image :  EG8145V5 GPON ONU 4ge 5db 1 Tel Optical Network Terminal Dual

Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE,ROHS,ISO9001
Model Number: EG8145V5
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

EG8145V5 GPON ONU 4ge 5db 1 Tel Optical Network Terminal Dual

Description
Application: FTTH Function: 4ge+1pots 2.4G Wi-Fi
Product Name: Gpon ONU EPON ONU Power Supply: DC 12V-1A
PON Port: SC/UPC SC/APC Wavelength: 1310/1490nm
Size: 173 Mm X 120 Mm X 30 Mm Weight: About 0.6kg
WIFI: 2.4G Network-side Ports: GPON
WLAN: 2.4GHZ: 802.11n 5GHZ: 802.11ac
High Light:

UPC 1tel GPON ONU

,

5db UPC GPON ONU

,

4ge 5db optical network terminal

Huawei EG8145V5 Dual frequency WI-FI gpon ont 4ge+1tel+2.4G 5G WIFI 5db




Description

The EchoLife EG8145V5 is a intelligent routing-type Optical Network Terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home users. The EG8145V5 supports 802.11ac dual-frequency bands and features high-performance forwarding capabilities to ensure an excellent experience with voice, Internet, and HD video services. These features make the EG8145V5 a perfect option for broadband access.



Features



  • Huawei GPON ONT EG8145V5 Optical Network Terminal
  • NNI: GPON
  • UNI: 4*GE+1*POTS+1*USB, with 2.4G/5G WiFi
  • ENG firmware, EU power
  • 2.4GHZ: 11n 2x2 MIMO
  • 5GHZ: 11ac 2x2 MIMO
  • Antenna Gain: 5dBi
  • Connector type: SC/UPC
  • Can be configured by OLT or Web or NMS
  • Routing function supported




Specification

Model EchoLife EG8145V5
Type Routing
Dimensions (H x W x D) 173 mm x 120 mm x 30 mm (without antenna and pads)
Operating Temperature 0°C to 40°C
Operating Humidity 5% RH to 95% RH (non-condensing)
Power Adapter Input 100V to 240V AC, 50 Hz/60 Hz
System Power Supply 11V to 14V DC, 2A
Network-side Ports GPON
User-side Ports 1 POTS + 4 GE + Wi-Fi + USB
Indicators POWER, PON, LOS, LAN1, LAN2, LAN3, LAN4, TEL, USB, WLAN, and WPS

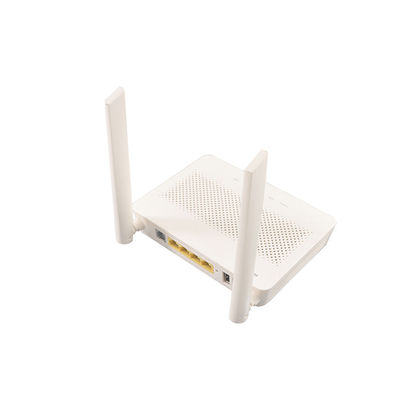

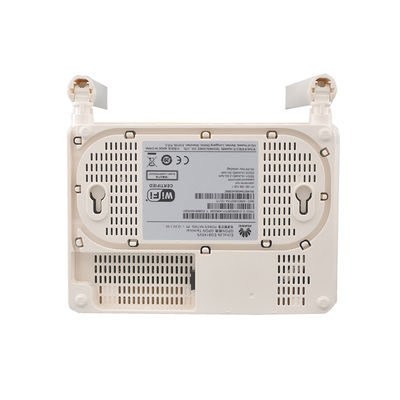

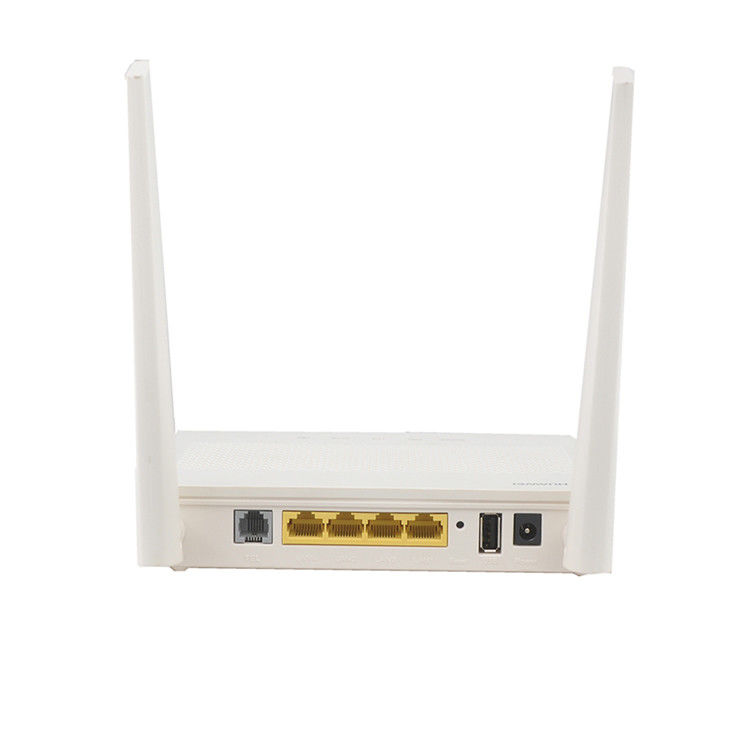

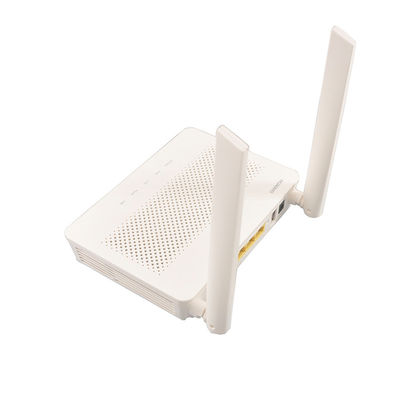

Detailed Images

EG8145V5 GPON ONU 4ge 5db 1 Tel Optical Network Terminal Dual 0EG8145V5 GPON ONU 4ge 5db 1 Tel Optical Network Terminal Dual 1EG8145V5 GPON ONU 4ge 5db 1 Tel Optical Network Terminal Dual 2EG8145V5 GPON ONU 4ge 5db 1 Tel Optical Network Terminal Dual 3

FAQ

Q: How to change a digitmap mapping mode of Huawei EG8145V5?

A: Choose Voice > VoIP Basic Configuration from the main menu on the web page and configure Digitmap Match Mode.



Q: Which ONTs support dual-band Wi-Fi?

A: The ONTs with a name ended with "D" or "Q" support dual-band Wi-Fi, such as the HG8245D and HG8245Q.

XG-PON gateway type ONTs support dual-band Wi-Fi, such as the HN8055Q and HN8245Q.



Q: Can I use an iPad to log in to the Huawei EG8145V5 web page to upgrade the firmware version, or update and download the Huawei EG8145V5 configuration file?

A: An iPad cannot be used to perform a firmware upgrade, or update or download the Huawei EG8145V5 configuration file.
