Product Details:
|
| Application: | FTTH | Function: | 1GE 3FE 2.4G Wi-Fi |
|---|---|---|---|
| Product Name: | Gpon ONU EPON ONU | Power Supply: | DC 12V-1A |
| PON Port: | SC/UPC SC/APC | Wavelength: | 1310/1490nm |
| Size: | 30 Mm X 156 Mm X 105 Mm | Weight: | About 0.6kg |
| WIFI: | 2.4G | Maximum Number Of MAC Addresses Learned: | 1024 |
| OEM: | Yes | ||
| High Light: | SC 1GE gpon ont router,ftth rohs 3FE gpon ont router,1GE 3FE gpon epon onu |
||

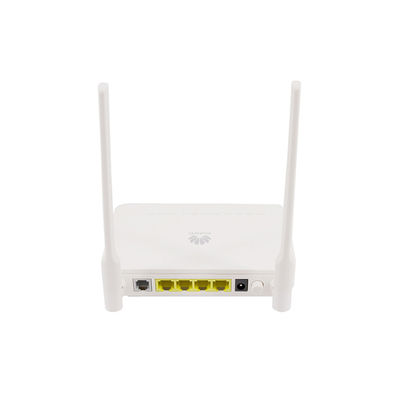

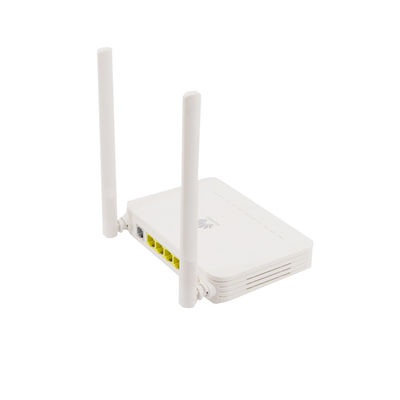

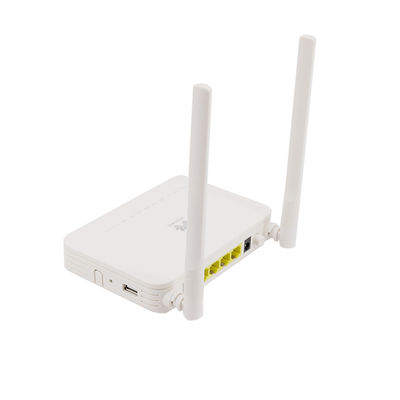

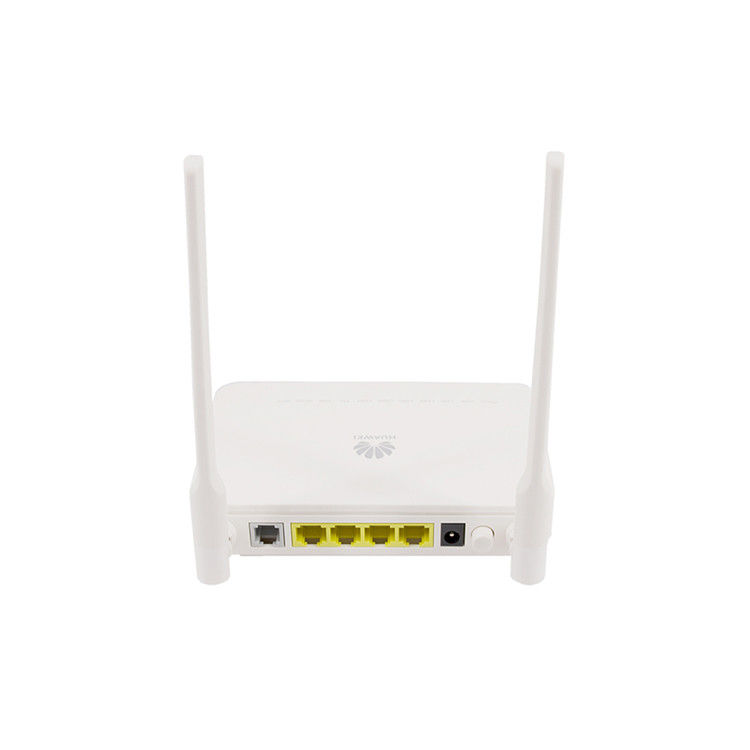

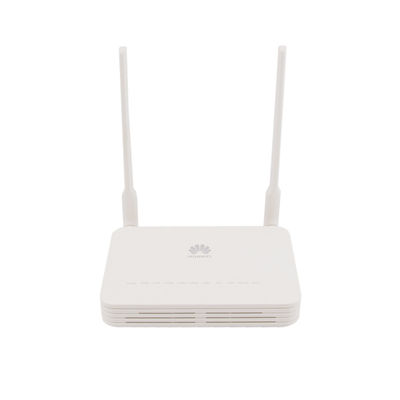

Huawei EG8141A5 FTTH is a routing-type ONT in the Huawei all-optical access solution. It uses GPON technology to implement ultra-broadband access for users.
The high forwarding performance ensures the user experience of voice, data, and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.
The EchoLife EG8141A5 provides one GE port, one POTS port, three FE ports and supports 2.4G Wi-Fi. The ONT features high-performance forwarding capabilities to ensure excellent experiences with VoIP, Internet, and HD video services. These features make the EG8141A5 a perfect choice for broadband access.
| Brand | HUAWEI |
| Model | EG8141A5 |
| Dimensions (L x W x H) | 30 mm x 156 mm x 105 mm |
| (without external antenna and pads) | |
| Weight | < 180 g |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
| Power Adapter Input | 100V to 240V AC, 50/60 Hz |
| System Power Supply | 11V to 14V DC, 1.5A |
| Static Power Consumption | 3.1W |
| Maximum Power Consumption | 7.15W |
| NNI | GPON |
| UNI | 1 POTS + 1 GE + 3 FE + 2.4G Wi-Fi |
| Optical Connector | SC/APC |
| Indicators | POWER/PON/LOS/LAN/TEL/WLAN/WPS |
Q: How to Restore Factory Settings for Huawei EG8141A5?
A: Use either of the following methods to restore factory settings for Huawei EG8141A5:
1. Choose System Tools > Restore Default Configuration from the main menu on the web page and click Restore Default Configuration.
2. Hold down the RESET button for a long period of time (longer than 10s) to restart the Huawei EG8141A5 with factory settings.
Q: How to configure the Wi-Fi service on Huawei EG8141A5?
A: Configure the Wi-Fi service through web pages or TR069 servers for Huawei EG8141A5 that supports Wi-Fi. For details, see the user manual of Huawei EG8141A5 device.
Q: What is ONT's optical power range?
A: For the Huawei EG8141A5 using GPON upstream transmission: -27 dBm to -8 dBm (Class B+); -30 dBm to -8dBm (Class C+).
Q: Can Huawei EG8141A5 connect to a switch in the lower layer to support the enterprise private line service?
A: No. Huawei EG8141A5 cannot connect to a PON terminal, switch, or router in the lower layer.
