Product Details:
|
| Application: | FTTH | GPON Port: | 16-GPON Port |
|---|---|---|---|
| Product Name: | GTGH Board | Split Ratio: | Up To 1:256 |
| Size: | 23 Mm X 237 Mm X 396 Mm | Weight: | About 1.5kg |
| Reach: | 20km | Overload Optical Power: | C+ C++ C+++ |
| Extinction Ratio: | 8.2dB | Optical Fiber Type: | Single Model |
| High Light: | rohs GTGH olt fiber connection,ratio 256 olt fiber connection,rohs ratio 256 optic link olt |
||

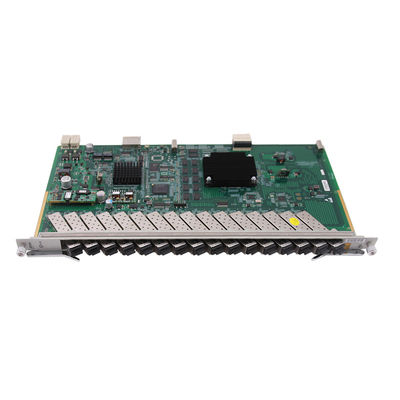

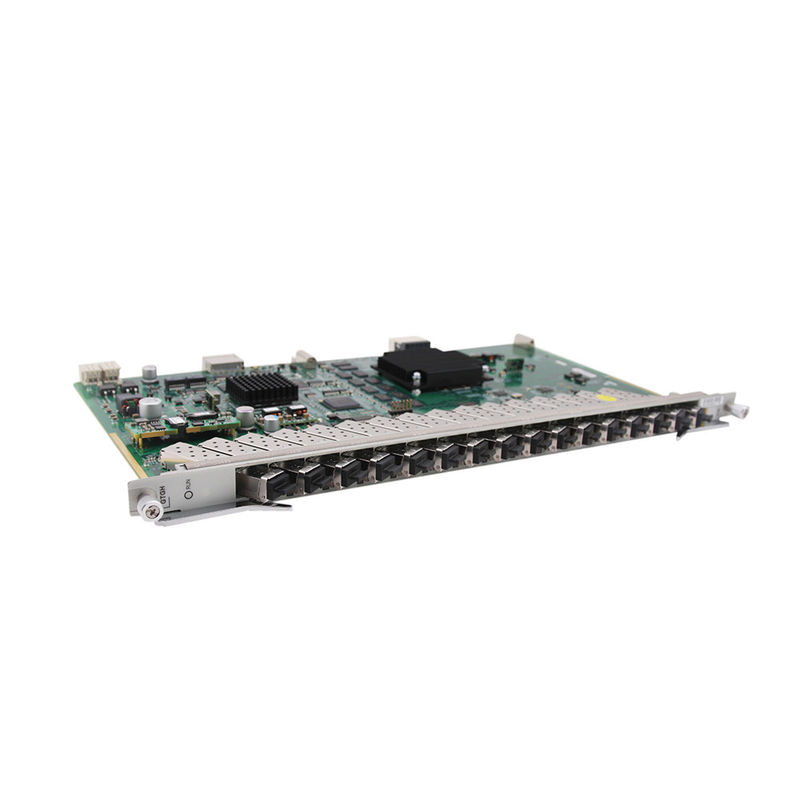

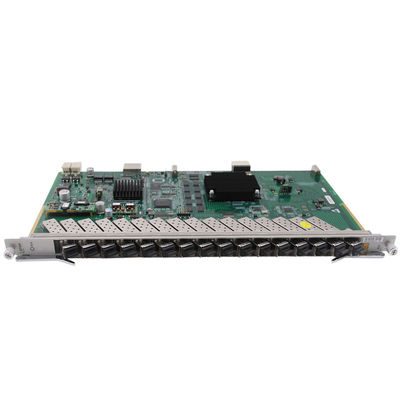

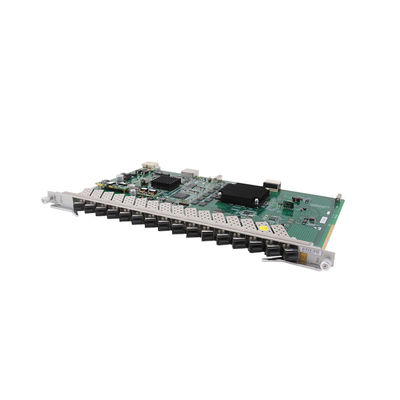

ZTE GTGH Service Board is ZTE ZXA10 C300 16-port GPON OLT interface board offering GPON service access.
| Type | C+ Module : Single Fiber Bidirectional Optical |
| Module, Class C+ | |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
| Minimun Output Optical Power | C++ Module : 4.50 dBm |
| Maximum Output Optical Power | C+ Module : 7.00 dBm |
| C++ Module : 8.00 dBm | |
| Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
| C++ Module : -30 dBm @10E-10 | |
| -32 dBm @10E-10 | |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | C+ Module : -12.0 dBm |
| C++ Module : -12.0 dBm | |
| Extinction Ratio | 8.2 dB |
| Device Specifications | |
| Weight | 1kg |
| Dimensions (W x D x H) | 22.86 mm x 237.00 mm x 395.40 mm |
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
