10GE GPON OLT Optical Line Terminal Uplink Board 4 Ports

10GE GPON OLT Optical Line Terminal Uplink Board 4 Ports
10GE GPON OLT Optical Line Terminal Uplink Board 4 Ports 10GE GPON OLT Optical Line Terminal Uplink Board 4 Ports 10GE GPON OLT Optical Line Terminal Uplink Board 4 Ports 10GE GPON OLT Optical Line Terminal Uplink Board 4 Ports

Large Image :  10GE GPON OLT Optical Line Terminal Uplink Board 4 Ports

Product Details:
Place of Origin: China
Brand Name: ZTE
Certification: CE,ROHS,ISO
Model Number: HUVQ
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: 1 pcs 1 carton
Delivery Time: 3-5 workdays
Payment Terms: T/T, Western Union
Supply Ability: 10pcs/day

10GE GPON OLT Optical Line Terminal Uplink Board 4 Ports

Description
Product Name: ZTE Uplink Card Uplink: 10G Service Board
Port: 4 Dimension: 25.40 Mm X 237 Mm X197.2mm
Module: 2 Pcs Modules With 1.25G Application: FTTH FTTB FTTX
Weight: 1kg Use: C300
High Light:

FTTB 10GE GPON OLT

,

FTTB Uplink Board GPON OLT

,

Uplink gpon optical line terminal

ZTE HUVQ Uplink Card 4 Ports 2 10GE Port 2 GE Port Optical Interface Ethernet Uplink Board C300 OLT.





Description

The ZXA10 C300 supports the following 10GE/GE Ethernet uplink cards
HUTQ: 2-port 10GE and 2-port GE optical interface Ethernet uplink card
HUVQ: 2-port 10GE and 2-port GE optical interface Ethernet uplink card, supports SynE and IEEE 1588 TC function.



Features

Large capacity, high density, high performance, and flatness
It meets the requirements for network evolution and deployment of “large capacity and few offices”, and meets the requirements of flat network, high-density interface boards, and provides special solutions for large splitting ratio and long-distance application scenarios.
Seven-mode access to ensure continuous network evolution
GPON / EPON, 10G PON (XG-PON1 / 10G-EPON / XGS-PON), and NG-PON2 (TWDM-PON) three generations of PON access technologies are integrated on the same platform while supporting P2P. On-demand deployment and flexible access ensure continuous network evolution.
Adapt to network convergence and full-service carrying
It adapts to TDM and mobile backhaul bearers, complete VLAN / multicast / QoS service capabilities and excellent service performance, which meets the network construction requirements under the background of optical advancement, copper withdrawal,



Parameter

Indicator
Status
Description
RUN
LED is OFF.
The card is powered off.
Green LED is ON.
The card self-checking completes but fails to receive data from the switching and control card or NM.
Green LED flashes irregularly.
The card is downloading data from the switching and control card or the network management server.
Green LED flashes slowly (0.5 Hz).
The card runs properly.
Red LED is ON.
Card hardware failure
Red LED flashes slowly (0.5 Hz).
The card is plugged in the wrong slot.
Yellow LED flashes slowly (0.5 Hz).
The software version of the card does not match that of the switching and control card. Auto-update is not configured on the card.
XG1/XG2/G- E1/GE2
Green LED is OFF.
The optical module is not connected or optical link failure.
Green LED is ON.
The optical interface is connected (LINK).
Green LED flashes.
The optical interface is sending and receiving the data (ACTIVE).


Detailed Images

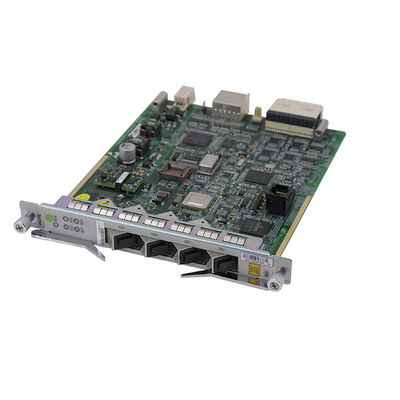

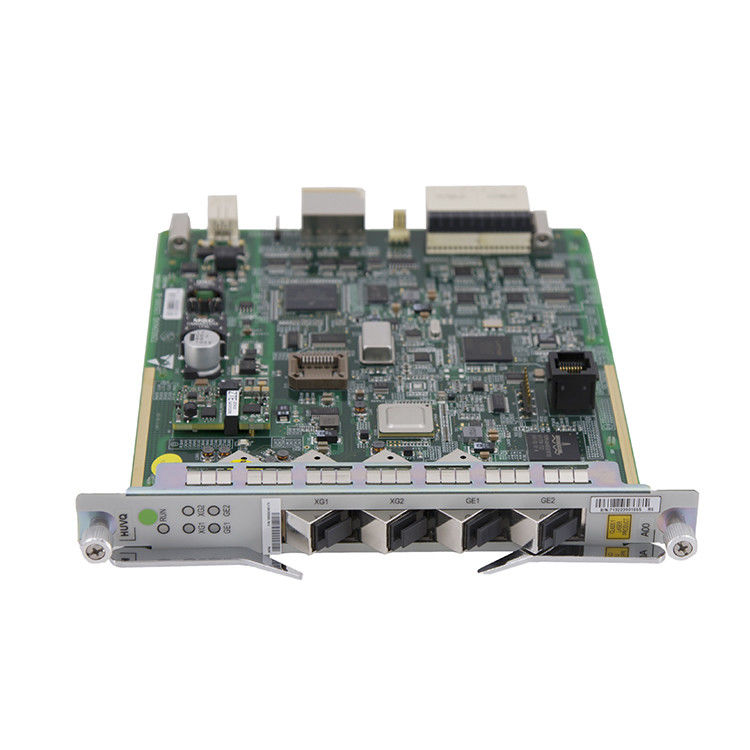

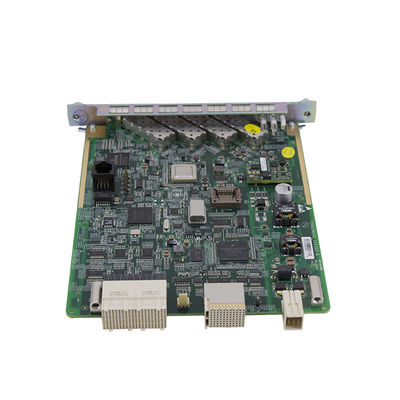

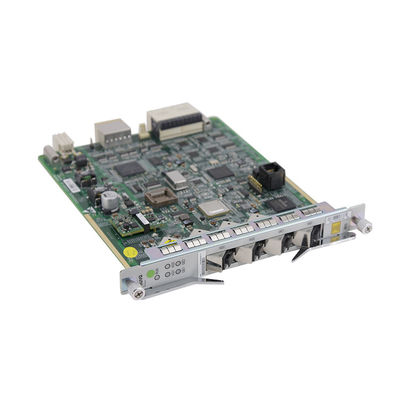

10GE GPON OLT Optical Line Terminal Uplink Board 4 Ports 010GE GPON OLT Optical Line Terminal Uplink Board 4 Ports 110GE GPON OLT Optical Line Terminal Uplink Board 4 Ports 210GE GPON OLT Optical Line Terminal Uplink Board 4 Ports 3

FAQ

1, Q: What is HUVQ and HUTQ difference?

A: Both HUTQ and HUVQ are the ZTE 2-port 10GE and 2-port GE optical interface Ethernet uplink card but only HUVQ can support SynE and IEEE 1588 TC function.



2, Q: What are the mapping relations between Uplink Card and Switching and Control Card for ZXA10 C300/C350/C320?

A:

Card Type Card Name Switching and Control Card Slot
SCXN SCTM SCXM SCXL SMXA
Ethernet uplink card XUTQ Χ Χ Χ ZXA10 C300/C350 uplink link card slot
XUVQ Χ Χ Χ ZXA10 C300/C350 uplink link card slot
GUFQ Χ ZXA10 C300/C350 uplink link card slot
GUSQ Χ ZXA10 C300/C350 uplink link card slot
HUTQ Χ ZXA10 C300/C350 uplink link card slot
HUVQ Χ ZXA10 C300/C350 uplink link card slot
UCDC/1 Χ Χ Χ Χ ZXA10 C320 SMXA daughter card
UCDC/3 Χ Χ Χ Χ ZXA10 C320 SMXA daughter card
UCDC/5 Χ Χ Χ Χ ZXA10 C320 SMXA daughter card





3, Q: What are the ZXA10 C300 Uplink Interfaces included?

A:

Interface Type Interface Card Interface Quantity
GE optical interface GUFQ 4
GUSQ 4
HUVQ 2
HUTQ 2
10GE optical interface XUTQ 4
XUVQ 4
HUVQ 2
HUTQ 2





4, Q: Does HUVQ support Ethernet user access and cascading?

A: NO, it does not. It supports SynE and IEEE 1588 TC function.
