Product Details:
|
| Application: | FTTH FTTX | Product Name: | OTDR |
|---|---|---|---|
| Wavalength: | 1310/1550nm | TOptical Interface: | FC/UPC (Interchangeable SC、ST) |
| Display: | 3.5 Inch TFT-LCD With LED Backlight | Linearity: | ±0.05 DB/ DB |
| Loss Threshold: | 0.05dB | Optical Power Meter: | Yes |
| RJ45 Cable Length: | Yes | VFL: | Yes |
| LS: | Yes | RJ45 Cable Tracker: | Yes |
| Dimension: | 173mmX82mmX37mm | ||
| High Light: | Mini VFL Fiber Optic Tool Kit,0.05dB Fiber Optic Tool Kit,0.05dB optical power meter with vfl |
||

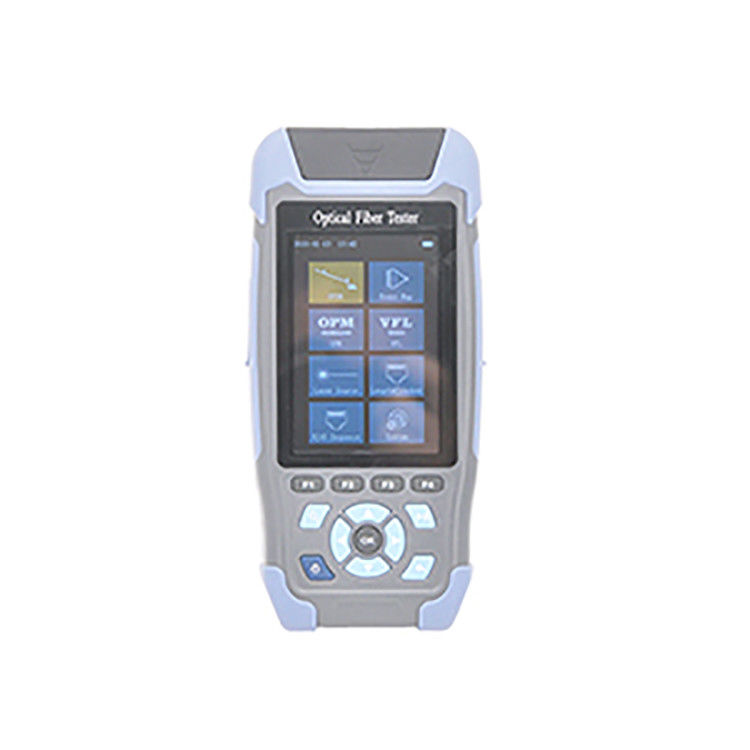

UT-King’s OT-320 series multi-function optical fiber tester, suitable for engineering construction and maintenance based on FTTx and access network, test the break point, length, loss of tested fiber, automatic detection of input light, one-key automatic test, 3.5-inch color LCD screen, The new plastic cover design, shockproof and drop-proof, feel ergonomic, compact body.
| Mini-Pro OTDR | ||
| Modelo | OT320S | OT320D |
| Wavelength | 1550nm±20nm | 1310nm/1550nm±20nm |
| Fiber Type | G.652 | |
| Dynamic Range | 22dB | 24dB/22dB |
| Event Blind Zone | 3m | |
| ATT Blind Zone | 8m | |
| Test Range | 500m~60km | |
| Pulse Width | 3ns~10us | |
| Ranging accuracy | ±(1m+ Sampling interval +0.005%×Test distance) | |
| Loss accuracy | ±0.05dB/dB | |
| Sampling Points | 16k~128k | |
| Sampling resolution | 0.05m~8m | |
| Reflection accuracy | ±3dB | |
| Data Storage | Internal:≥600;External:TF Card | |
| Laser Safety Level | Class Ⅱ | |
| File format | SOR Standard file format | |

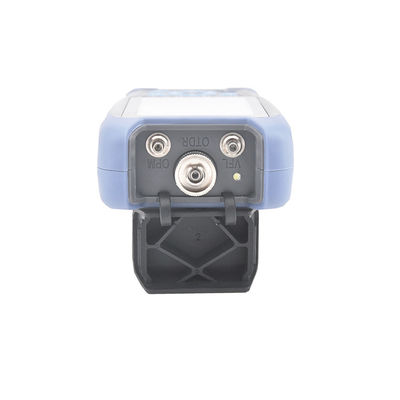

| Connector | FC/UPC(Interchangeable SC,ST) | |
| OPM | ||
| Wave Range | 800nm~1700nm | |
| Interface Type | Universal Joint FC/SC/ST | |
| Test Range | -50dBm~+26dBm | |
| Uncertainty | ±5% | |
| Frequency Identification | CW/270/330/1k/2kHz | |
| Calibration wavelength | 850/980/1300/1310/1490/1550/1625/1650nm | |
| LS | ||
| LD Type | FP-LD | |
| Wavelength | 1550nm±20nm | 1310nm/1550nm±20nm |
| Output Power | ≥-5dBm | |
| Modulation Frequency | 270/330/1k/2kHz | |
| Stability |
CW,±0.5dB/15min (Test after 15 minutes of preheating) |
|
| Connector | FC/UPC(Interchangeable SC,ST) | |
| VFL | ||
| Wavelength | 650nm±20nm | |
| Output Power | ≥10mW | |
| Mode | CW/1Hz/2Hz | |
| Connector | FC/SC/ST | |
| RJ45 Cable Length Measurement | ||
| Test Range | 300m | |
| Other Parameters | ||
| Display | 3.5 inch Color LCD | |
| Data Interface | Micro USB | |
| External storage | TF Card | |
| Power Supply |
Polymer Li-Battery:3.7V,4000mAh Adapter:5VDC,2A |
|
| Battery Life | Standby>20h;Measuring time>12h | |
| Operating Temperature | -10℃~+50℃ | |
| Storage Temperature | -40℃~+70℃ | |
| Relative Humidity | 0~95%Non Condensing | |
| Size | 173mm×82mm×37mm | |
| Weight | ≤350g | |
|
Functions: Blue,OTDR/EVENT MAP/OPM/LS/VFL/RJ45 Sequence/RJ45 Cable Tracker(Additional purchase detector)/RJ45 Line length/Flashlight |
||
