Full Automatic Touch FTTH Fiber Optic Tool Kit Termination 60mm SM 9s

Full Automatic Touch FTTH Fiber Optic Tool Kit Termination 60mm SM 9s
Full Automatic Touch FTTH Fiber Optic Tool Kit Termination 60mm SM 9s Full Automatic Touch FTTH Fiber Optic Tool Kit Termination 60mm SM 9s Full Automatic Touch FTTH Fiber Optic Tool Kit Termination 60mm SM 9s Full Automatic Touch FTTH Fiber Optic Tool Kit Termination 60mm SM 9s

Large Image :  Full Automatic Touch FTTH Fiber Optic Tool Kit Termination 60mm SM 9s

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: UT-FS50
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

Full Automatic Touch FTTH Fiber Optic Tool Kit Termination 60mm SM 9s

Description
Application: FTTH Product Name: Fusion Splicer
Typical Splicing Time: 9s Typical Heating Time: 26s
Applicable Fibers: SM(G.652&G.657)、MM(G.651)、DS(G.657)、NZDS(G.655) Splice Loss: 0.025dB(SM)、0.01dB(MM)0.04dB(DS/NZDS)
Focus Mode: Auto Focus Heat Shrinkable Tube: 40mm 60mm
Screen: 5.0 Inch TFT Color Display Ecord Capacity: 5000
High Light:

9s FTTH Fiber Optic Tool Kit

,

60mm SM Fiber Optic Tool Kit

,

60mm fiber termination kit

Full Automatic Touch Operate 9 Seconds Fast Splicing Optic Fibre Fusion Splicer Machine Optical Fiber Fusion




Description



Fiber optic fusion splicer Machine FS50 FTTH is one of the most popular fusion splice in the world,UT-king is one of the largest and best FS50 fiber optic fusion splicer machine manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized FS70 fiber optic fusion splicer machine in stock with our factory. Also, free sample is also available if necessary.



Features

  • Small and light, easy to carry
  • Global Language System
  • Color touch display
  • 4 motors accurate core to core alignment
  • 9 seconds splicing & 26seconds heating
  • Automatic & real-time ARC calibration
  • Heating temperature and time both adjustable
  • Automatic splicing and heating, easy to operate
  • Apply to bare fiber, pigtails, drop cable etc.
  • Suitable for FTTx, FTTH, CATV projects etc.
  • Optional anti-theft system, the system can be locked (suitable for machine rental service and prevention of loss)



Specification

Alignment method
4 motors core to core alignment
Applicable fiber
SM(ITU-T G.652& G.657)/MM(ITU-T G.651)/DS(ITU-T G.653)/NZDS(ITU-T G.655)
Compatible Fiber Cable
0.25-3.0mm / lndoor Cable
Cleaved Length
Diameter: 0.125 -1mm / Cleave Length: 8-16mm
Cladding Diameter
80 - 150µm
Splicing Mode
Pre-set 41 splicing modes, max 100 modes
Heating Mode
Pre-set 5 heating modes (20/30/40/50/60mm), max 100 modes
Typical Splice Loss
SM:0.01dB / MM:0.01dB / DS:0.03dB / NZDS:0.03dB / G.657:0.03dB (ITU-T Standard)
Return Loss
≥60dB
Splicing Time
Quick mode 9 seconds
Estimated Splice Loss
Available
Heating Sleeve Length
20 - 60 mm
Heating Time
Quick heating time 15s, typical heating time 26s
Viewing display
Dual high sensitivity camera, 4.3 inch Color Touch screen
Results Storage
5000 latest records
Electrode Life
5000 arcs
Tension test
1.96~2.25N
Operating Condition
Operating Altitude:0 - 5000m above sea level, 0 - 95% relative humidity, -10 ~ 50°C,Max Wind 15m/s
Storage Condition
0 ~ 95% relative humidity, -40 ~ 80°C
Power Supply
AC Input 100 - 240V, DC Input 12 - 15V
No. of Splice/Heating with Battery
4000mAh Battery Capacity, Typical 180 times (Splice + Heat)
Operating Methods
Button / Touch Screen
Automatic Calibration
Automatic arc calibration by air pressure and temperature
Dimension/Weight
158mmW*130mm L*156mm H (excluding rubber bumper)





Detailed Images

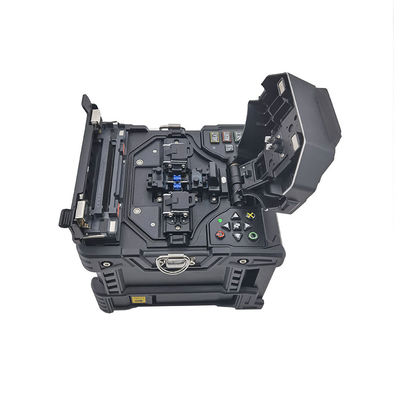

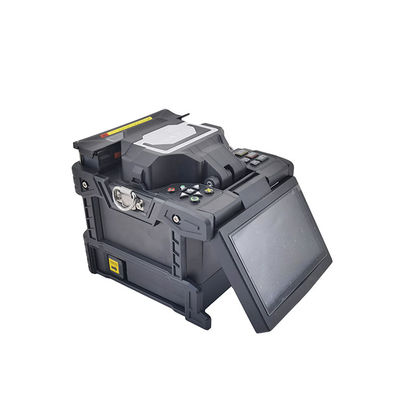

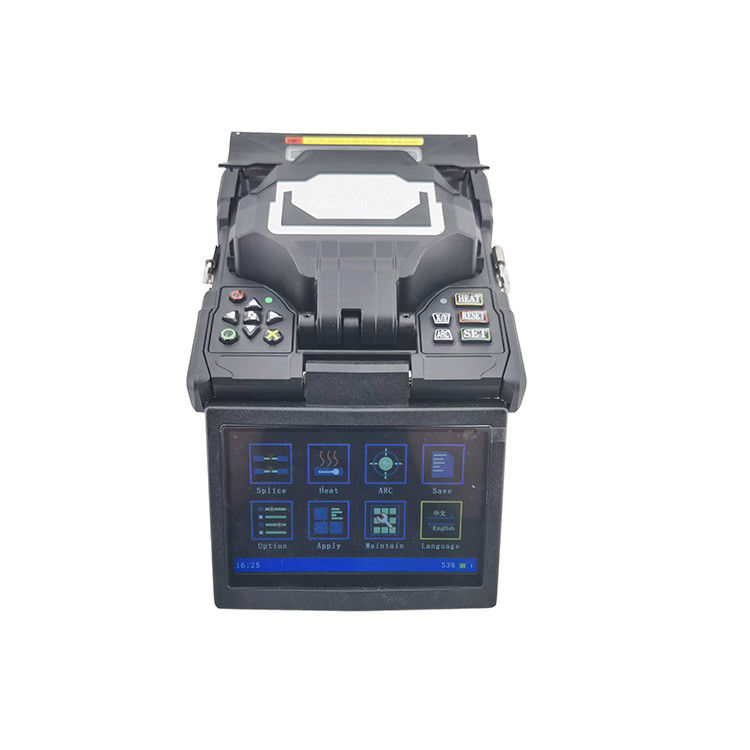

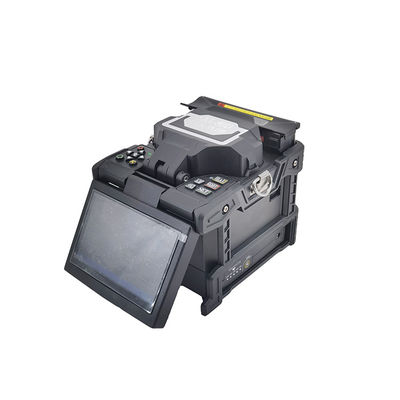

Full Automatic Touch FTTH Fiber Optic Tool Kit Termination 60mm SM 9s 0Full Automatic Touch FTTH Fiber Optic Tool Kit Termination 60mm SM 9s 1Full Automatic Touch FTTH Fiber Optic Tool Kit Termination 60mm SM 9s 2Full Automatic Touch FTTH Fiber Optic Tool Kit Termination 60mm SM 9s 3



FAQ

Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available


Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.



Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.



Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
