Product Details:
|
| Application: | FTTH FTTX | Product Name: | Fiber Optic Tool Kit |
|---|---|---|---|

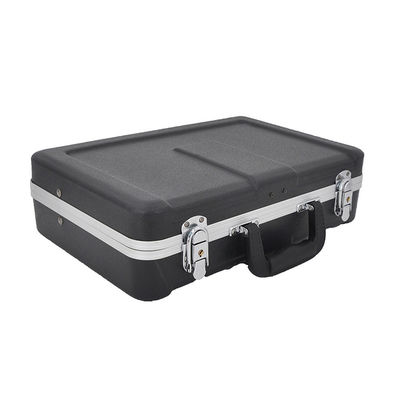

| Tool Set: | Power Meter, VFL, Fiber Cleaver, Stripper, Miller Cutter | Dimension: | 430*340*130mm |
| Weight: | 3kg | Package1: | FC-6S Cleaver |
| Package2: | Power Meter | Package3: | VFL 10mW |
| Package4: | Miller Stripper | Package5: | Kevlar Cutter |
| Package6: | FTTH Drop Cable Stripper | Package7: | Alcohol Bottle |
| Package8: | Steelwire Stripper | Package9: | Kimtech Wipper |
| High Light: | 6S Cleaver Fiber Optic Tool Kit,VFL 10mW Fiber Optic Tool Kit,VFL fiber optic cable termination kit |
||

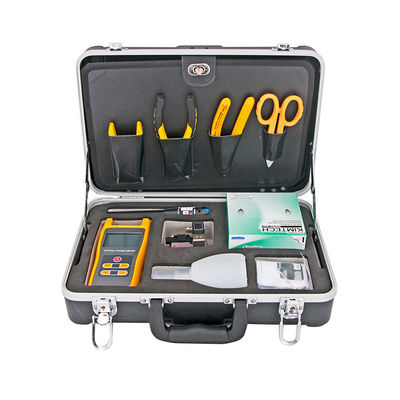

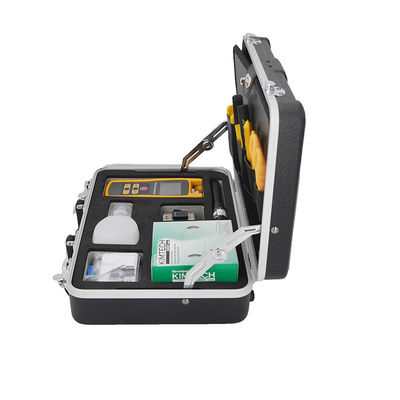

Our FTTH Fiber Optic Tool Kit Contains - Optic Stripping Tool Compact, Durable Design Suitable for 3mm, 2mm Indoor Fiber Optic Cable Stripping - High-quality FC-6S Fiber Cleaver Recommended FTTH Cold Welding for Single or Multi-Mode Core Cutting of Fiber Size 125um and a Skin Diameter 250~900um,Optical Power Meter, 10mW Visual Fault Locator (w/o batteries), FC-6S Fiber Cleaver, CLAUSS Fiber Optic Stripper, Fiber Optic Splicing Tool, Black Carry Bag, Clean Paper, Alcohol Bottle, Fixed Length Rail
RELIABLY TESTED: Every product is tested after production, and is Rohs compliant. We rely on these products for use in our clients fiber networks across the USA.For All Tools and Parts Included. Item contains no liquids or chemicals. Cleaning fluid bottle ships empty.
Model: FC-6S
Applicable fibers: Singlemode or Multimode Use
Fiber Diameter: 125um
Coating Diameter: 250um ~ 900um
Typical Cleave Angle: 0.5 Degrees
Cleave Length: 9 - 16mm (Single Fiber - 0.25mm Coating)/10 - 16mm (Single Fiber - 0.9mm Coating)
Blade Life Time: 36,000 cleaves (3,000 per blade position)
Cleaver Dimensions: 63 x 65 x 63mm
Weight 350g
Description: CFS-2
1.0mm diameter stripping hole at the tip of tool that can be used to strip the fiber jacket
140 µm diameter hole and V-opening in blade allows removal of 250 micron buffer coating from 125 micron fiber
All stripping surfaces are manufactured to precise tolerances to assure clean, smooth strips
Lock to hold tool closed when it is not in use
Will not scratch or nick glass fiber
Pre-set at the factory-no adjustments needed
Comfort grip, ergonomic handles
Description: FTTH Drop Cable Stripper
- Tool for FTTH flat drop optical cable
- Universal Stripper for 3.1x2.0mm FTTH drop cables with steel wire or FRP strength member.
- Simple jacket removing without fiber damaging
- Made of zinc alloy steel with PVC non-slip handle.
- Improve cable splicing, more efficient and easy to use.
- Lightweight and compact.
Description: Fiber Optical Power Meter
| Optical Power Meter | |
| Calibration Wavelength (nm) | 850,1300,1310,1490,1550,1625 |
| Measurement Range(dBm) | -70~+3 |
| Resolution (dB) | 0.01 |
| Uncertainty (dB) | ±0.5 |
| Linearity (dB) | ±0.1 |
| Frequency Identification Range | <10K |
| Connector | FC/SC/ST |
| Wavelength (nm) | 1310/1550(optional others)/1490 |
| Operating Temperature(℃) | -10+60 |
| Storage Temperature(℃) | -25~+70 |
| Power supply | 3 double-A 1.5V dry batteries |
Description: Visual Fault Locator
* Easy to check fiber faults with visual red laser light
* Universally connector for test different ST,SC,FC interfaces
* Test for both single-mode and multi-mode cables with optional 2.5mm fiber optic(Standard) connectors to 1.25mm adapter(Optional)
* High effective power circuits allow for stable laser power
* Operates in both CW(Continuous wave) and pulse mode
* Dust-proof design keep fiber connectors clean
* Providing 15 hours of stable continuous operation
* Output power: 10mW
* Spectral width: 650+/-10nm
* Range: visibility up to 10km
* Operatiing temperature: -10 to +70C
* Store temperature: -40 to +85C
* Length: 6.3in(160mm)
* Weight: 170g(excluding batteries)
* Connector: 2.5mm universal adapter
Description: Fiber Optic Kevlar Cutter
* Telecommunication System
* Testing Equipment
* CATV System
* Long-haul Telecommunication
* LAN System
• Blades made of high carbon alloy steel with vanadium and molybdenum FHRC60-62,cutting adge hardness FHV1200
• Handles made of thermo plastic elastomer
• Exteded tang for durability
• Serrated blade for gripping materials
• Specially designed for cutting kevlar materials

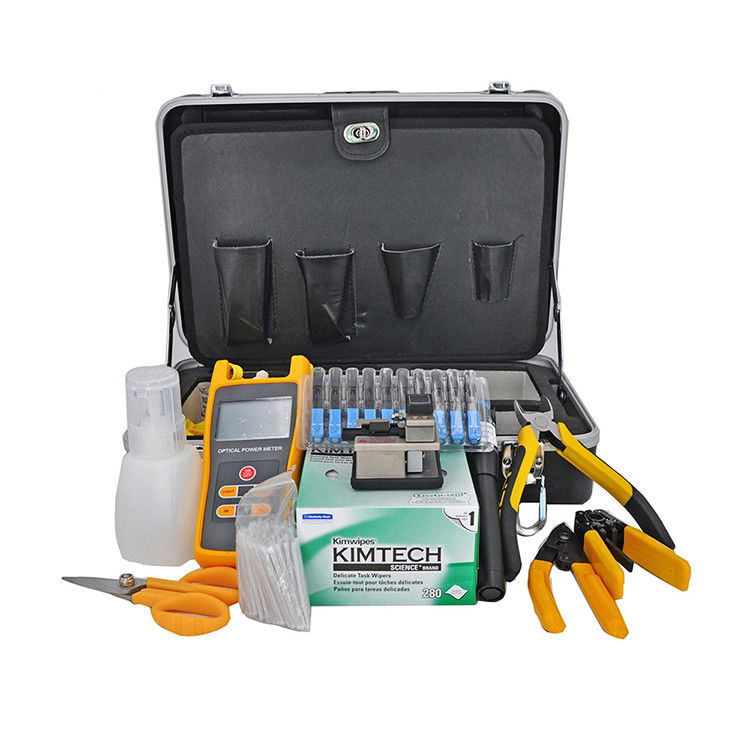

Package include:
1 x Fiber Tool Kits Bag
1 x FC-6S Fiber Optical Cleaver
1 x CFS-2 Fiber Optic Stripper
1 x FTTH Drop Cable Stripper
1 x Optical Power Meter
1 x Visual Fault Locator
1 x Fiber Optic Kevlar Cutter
1 x Alcohol Bottle
1 x Screwdriver
1 x Cotton Swab
20pcs x Protection Tube
| No. | Product | Unit | Qty |
| 1 | Handheld power meter, | pcs | 1 |
| 2 | Fiber Cleaver FC-6S | pcs | 1 |
| 3 | Laser fault detector, 10mW | pcs | 1 |
| 4 | 2 hole fiber stripper, CFS-2 | pcs | 1 |
| 5 | Stripper for FTTH drop cable | pcs | 1 |
| 6 | Kevlar scissors | pcs | 1 |
| 7 | Side-cut pliers | pcs | 1 |
| 8 | Clean wipe | pcs | 1 |
| 9 | Alcohol bottle | bag | 1 |
| 10 | Carrying box | PCS | 1 |
