Product Details:
|
| Application: | FTTH FTTX | Product Name: | Power Meter |
|---|---|---|---|
| Wavalength: | 800~1700nm | TOptical Interface: | FC/UPC (Interchangeable SC、ST) |
| Calibrated Wavelength: | 850,980,1300,1310,1490,1550nm | Resolution(dB): | 0.01dB |
| Dimension: | 175x82x33mm | Weight: | 350g |
| High Light: | 1700nm opm optical power meter,0.01dB opm optical power meter,0.01dB optical multimeter opm |
||

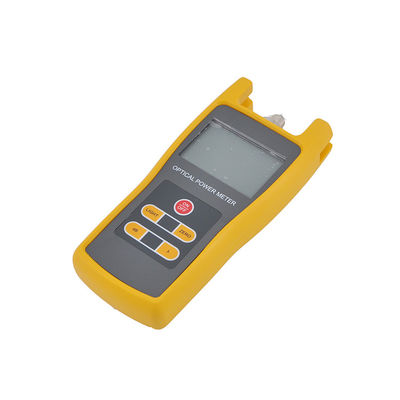

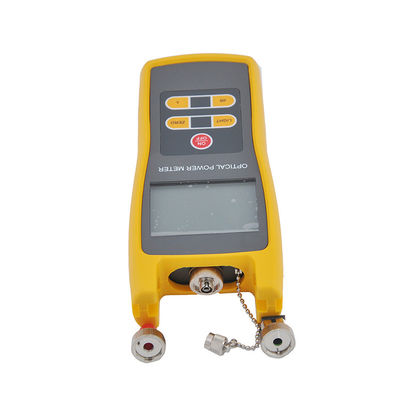

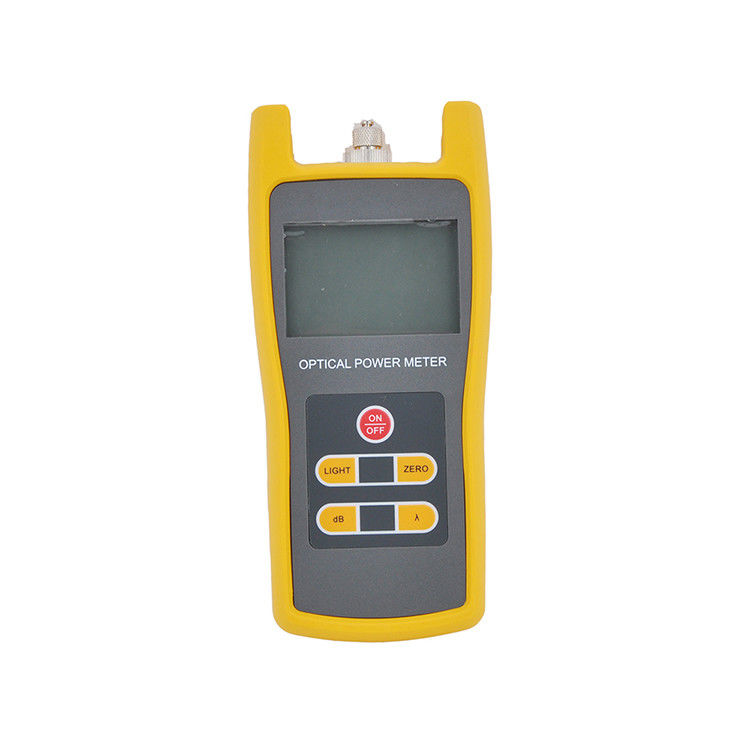

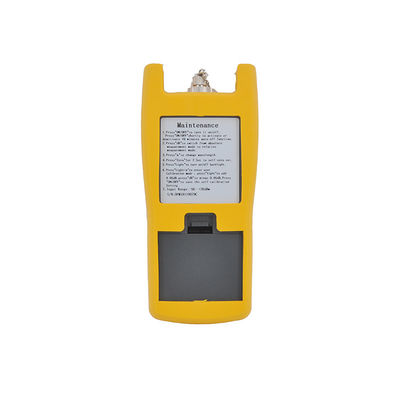

UT-King's UT3208 handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.
| Type | UT3208A | UT3208C |
| Wavelength(nm) | 800~1700nm | |
| Detector | InGaAs | |
| Measurement Range (dBm) | -70~+6 | -50~+26 |
| Uncertainty | ±5% | |
| Calibrated Wavelength(nm) | 850,980,1300,1310,1490,1550 | |
| Resolution(dB) | 0.01 | |
| Optical Connector | FC(interchangeable SC,ST) / as well as 2.5mm universal | |
| Power Supply | Alkaline Battery(3 AA 1.5V batteries) | |
| Battery Operating Time | 240 h with 1.5V Battery(3) | |
| Operating Temperature(℃) | -10 ~ +60 | |
| Storage Temperature(℃) | -25 ~ +70 | |
| Relative Humidity | 0 to 95% (non-condensing) | |
| Dimension(mm) | 175x82x33 | |
| Weight(g) | 310 | |
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
