1x1 Switch 5V DWDM MUX DEMUX Mechanical Optical Switch Non Latching

1x1 Switch 5V DWDM MUX DEMUX Mechanical Optical Switch Non Latching
1x1 Switch 5V DWDM MUX DEMUX Mechanical Optical Switch Non Latching 1x1 Switch 5V DWDM MUX DEMUX Mechanical Optical Switch Non Latching 1x1 Switch 5V DWDM MUX DEMUX Mechanical Optical Switch Non Latching 1x1 Switch 5V DWDM MUX DEMUX Mechanical Optical Switch Non Latching

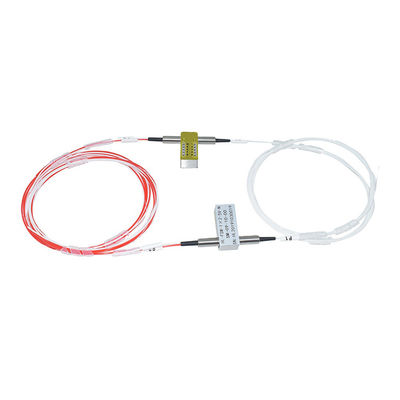

Large Image :  1x1 Switch 5V DWDM MUX DEMUX Mechanical Optical Switch Non Latching

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: Optical Switch
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

1x1 Switch 5V DWDM MUX DEMUX Mechanical Optical Switch Non Latching

Description
Application: FTTH Function: Optical Switch
Product Name: Fiber Optic Switch Connector: SC/FC/LC
Wavelength: 1270~1610/1271~1611 Fiber Length: 1MM...customize
Model:: Mux/Demux Keywords: Optical Fiber Collimator
Channel: 4,8,16,18
High Light:

1x1 DWDM MUX DEMUX

,

Switch 5V DWDM MUX DEMUX

,

5v 1x2 mechanical optical switch

1x1 1x2 2x2 Mechanical Optical Switch Non-latching Fiber Optical Switch 5V/3V




Description

UT-King’s optical add-drop multiplexer (OADM) is a device used in wavelength-division multiplexing systems for multiplexing and routing different channels of light into or out of a single mode fiber (SMF). This is a type of optical node, which is generally used for the formation and the construction of optical telecommunications networks. "Add" and "drop" here refer to the capability of the device to add one or more new wavelength channels to an existing multi-wavelength WDM signal, and/or to drop (remove) one or more channels, passing those signals to another network path. An OADM may be considered to be a specific type of optical cross-connect.





Features

  • Low insertion loss
  • Wide wavelength range
  • Low crosstalk
  • High stability and reliability
  • Epoxy-free optical path
  • Latching and non-latching

Applications

  • Optical Signal Switching and Routing

  • Optical Network Protection and Restoration

  • Optical Network Monitoring

  • Video Distribution

  • Instrumentation Resource Sharing

  • Military Communications

Specification


Optical Route Optical Route 1-2 1-2 Optical Route 1-3 1-3
Electricity driving Non-latching Pin1 Pin10
Latching Pin1 Pin5 Pin6 Pin10
  V+ GND GND V+
State

Latching/Non-latching

/

Pin2-3, Pin8-9 open Pin2-3, Pin8-9 close
Pin3-4, Pin7-8 close Pin3-4, Pin7-8 open
Parameter Value
Operating wavelength (nm) 1260~1360 or 1510~1610 1310/1550 ± 40
Insertion Loss (dB) P Grade A Grade P Grade A Grade
< 0.5 < 0.8 < 0.7 < 1.0
WDL (dB) ≤ 0.25 ≤ 0.25 ≤ 0.25 ≤ 0.30
PDL (dB) ≤ 0.05 ≤ 0.05 ≤ 0.05 ≤ 0.05
TDL (dB) < 0.15 < 0.20 < 0.15 < 0.20
Crosstalk (dB) >55 >55 >55 >55
Repeatability (dB) < ± 0.02
Return Loss(dB) > 55
Switching Time (ms) <10 (Typ.4)
Coil resistance (Pins 1-5 or 6-10) (ohms) 178 ± 10%
Operating voltage (V) 5
Rated power (mW) 500
Durability >10 million
Operating Temperature(°C) 0 ~ +70
Storage Temperature (°C) -45~ +85
Fiber Type SMF-28
Fiber Length (m) 1.0 +/- 0.1
Dimensions (LxWxH) (mm) L22.3 × W12.1 × H11



Detailed Images

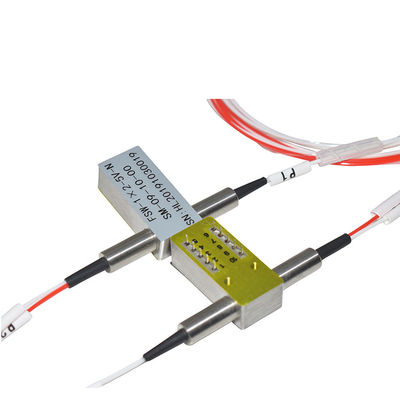

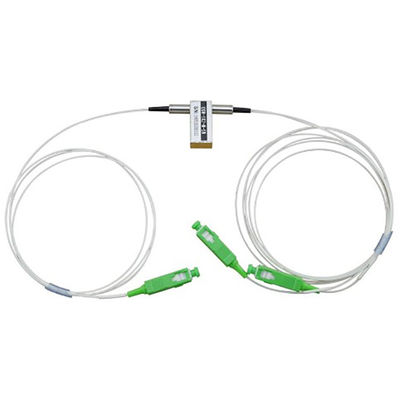

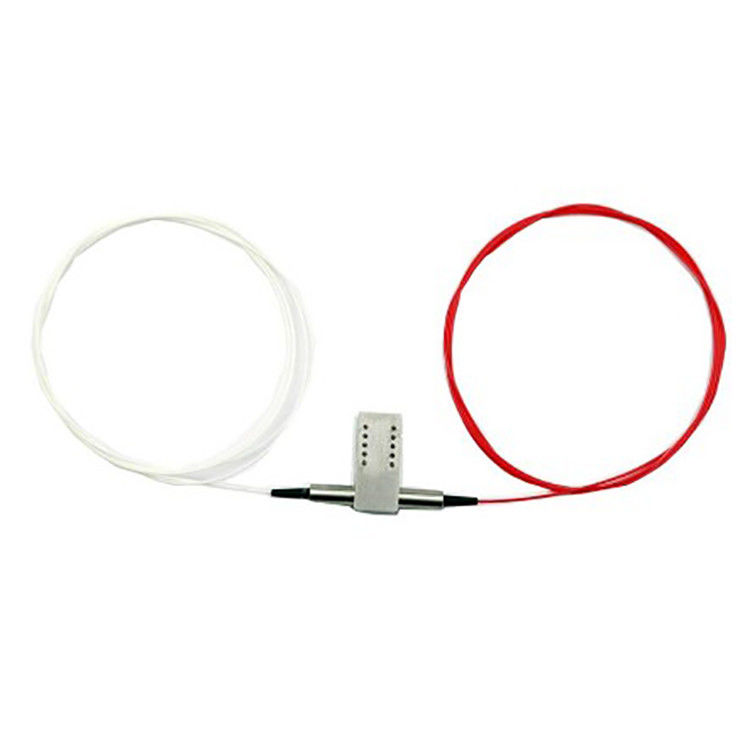

1x1 Switch 5V DWDM MUX DEMUX Mechanical Optical Switch Non Latching 01x1 Switch 5V DWDM MUX DEMUX Mechanical Optical Switch Non Latching 11x1 Switch 5V DWDM MUX DEMUX Mechanical Optical Switch Non Latching 21x1 Switch 5V DWDM MUX DEMUX Mechanical Optical Switch Non Latching 3
